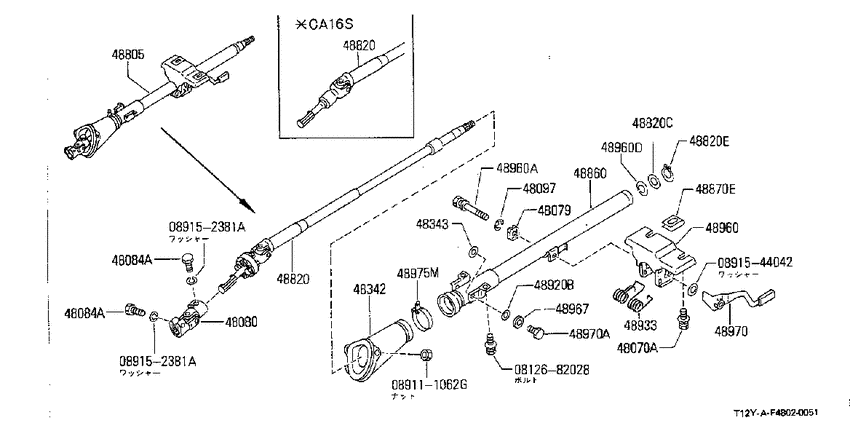

Steering column (1986-06-01 ~ ; ALL) Diagram Nissan AUSTER/STANZA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- CA18D
- transmission
- MT
- grade
- SPR/T
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812682028
|
0812682028
08126-82028
Bolt-hexagon
|
08126-82028 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.63 |
||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
0891544042
|
0891544042
08915-44042
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44042 |
— | ||
|
48070A
|
48070A
48935-42E00 BOLT8608--01 ~ ; ALL |
48935-42E00 |
US $1.73 |
||
|
48070A
|
48070A
48970-10W00 Bolt8606--01 ~ 8608--01; ALL |
48970-10W00 |
US $5.62 |
||
|
48079
|
48079
48969-50A00 Stopper-Tilt Lever8606--01 ~ ; ALL |
48969-50A00 |
from US $4.18 |
||
|
48080
|
48080
48080-50A10
Joint Assy-Steering, Lower
8606--01 ~ 8901--01; ALL; ｾﾝﾀｸｼﾖｳ NSK |
48080-50A10 |
— | ||
|
48080
|
48080
48080-50A11 Joint Assy-Steering, Lower8901--01 ~ ; ALL; ｾﾝﾀｸｼﾖｳ NSK |
48080-50A11 |
US $94.90 |
||
|
48084A
|
48084A
48935-F6100
Bolt
8606--01 ~ ; ALL |
48935-F6100 |
— | ||
| replacement | |||||
|
48084A
|
48084A
48935F610A BOLTHEX SPECIA8606--01 ~ ; ALL |
48935F610A |
US $2.21 |
||
|
48084A
|
48084A
48935-F6100
Bolt
8606--01 ~ ; ALL |
48935-F6100 |
— | ||
| replacement | |||||
|
48084A
|
48084A
48935F610A BOLTHEX SPECIA8606--01 ~ ; ALL |
48935F610A |
US $2.21 |
||
|
48097
|
48097
48962-V5000 Ring-Snap8606--01 ~ ; ALL |
48962-V5000 |
US $0.86 |
||
|
48342
|
48342
48950-01E00 ｶﾊﾞ-,ｺﾗﾑ ﾎ-ﾙ8606--01 ~ ; ALL |
48950-01E00 |
US $77.18 |
||
|
48343
|
48343
48959-W1000 Seat-Steering Column8606--01 ~ ; ALL |
48959-W1000 |
US $0.86 |
||
|
48805
|
48805
48805-D4000 Column Assy-Steering8801--01 ~ ; CA18D+CA18DT |
48805-D4000 |
US $842.52 |
||
|
48820
|
48820
48820-D4000 ｼﾔﾌﾄ ｱﾂｾﾝﾌﾞﾘ-,ｽﾃｱﾘﾝｸﾞ ｺﾗﾑ ｱﾂﾊﾟ-8801--01 ~ ; CA18D+CA18DT |
48820-D4000 |
US $294.53 |
||
|
48820
|
48820
48931-U0101 Washer-Plain8606--01 ~ ; ALL |
48931-U0101 |
US $1.73 |
||
|
48820
|
48820
01541-00021 RING-SNAP8606--01 ~ ; ALL |
01541-00021 |
US $1.73 |
||
|
48820
|
48820
48820-D4000 ｼﾔﾌﾄ ｱﾂｾﾝﾌﾞﾘ-,ｽﾃｱﾘﾝｸﾞ ｺﾗﾑ ｱﾂﾊﾟ-8801--01 ~ ; CA18D+CA18DT |
48820-D4000 |
US $294.53 |
||
|
48820
|
48820
48931-U0101 Washer-Plain8606--01 ~ ; ALL |
48931-U0101 |
US $1.73 |
||
|
48820
|
48820
01541-00021 RING-SNAP8606--01 ~ ; ALL |
01541-00021 |
US $1.73 |
||
|
48820C
|
48820C
48931-U0101 Washer-Plain8606--01 ~ ; ALL |
48931-U0101 |
US $1.73 |
||
|
48820E
|
48820E
01541-00021 RING-SNAP8606--01 ~ ; ALL |
01541-00021 |
US $1.73 |
||
|
48860
|
48860
48860-D4000 Tube Assy-Jacket, Upper8606--01 ~ 8801--01; 1MT CA18DT.AT *CA16S.AT; *=ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ ﾖｳ |
48860-D4000 |
US $74.45 |
||
|
48870E
|
48870E
48964-M7000 Plate-Slide8606--01 ~ ; ALL |
48964-M7000 |
US $7.63 |
||
|
48920B
|
48920B
48951-W1000 Ring8606--01 ~ ; ALL |
48951-W1000 |
US $2.59 |
||
|
48933
|
48933
48967-V5000 Spring-Steering Column8606--01 ~ ; ALL |
48967-V5000 |
US $9.79 |
||
|
48960
|
48960
48960-D4600 Clamp-Steering Column, Upper8606--01 ~ ; ALL |
48960-D4600 |
US $44.35 |
||
|
48960
|
48960
48966-50A00 Bolt8606--01 ~ ; ALL |
48966-50A00 |
US $5.18 |
||
|
48960
|
48960
48933-50A00 Washer-Plain8606--01 ~ ; ALL |
48933-50A00 |
US $1.73 |
||
|
48960A
|
48960A
48966-50A00 Bolt8606--01 ~ ; ALL |
48966-50A00 |
US $5.18 |
||
|
48960D
|
48960D
48933-50A00 Washer-Plain8606--01 ~ ; ALL |
48933-50A00 |
US $1.73 |
||
|
48967
|
48967
48981-W1000 Seal-Dust8606--01 ~ ; ALL |
48981-W1000 |
US $0.86 |
||
|
48970
|
48970
48970-D4000 Lever Assy-Adjust, Steering Column8606--01 ~ ; ALL |
48970-D4000 |
US $22.18 |
||
|
48970
|
48970
48958-W1000 Bolt8606--01 ~ ; ALL |
48958-W1000 |
US $4.18 |
||
|
48970A
|
48970A
48958-W1000 Bolt8606--01 ~ ; ALL |
48958-W1000 |
US $4.18 |
||
|
48975M
|
48975M
24216-01E00 CLAMP-COVER8606--01 ~ ; ALL |
24216-01E00 |
US $4.03 |
||
