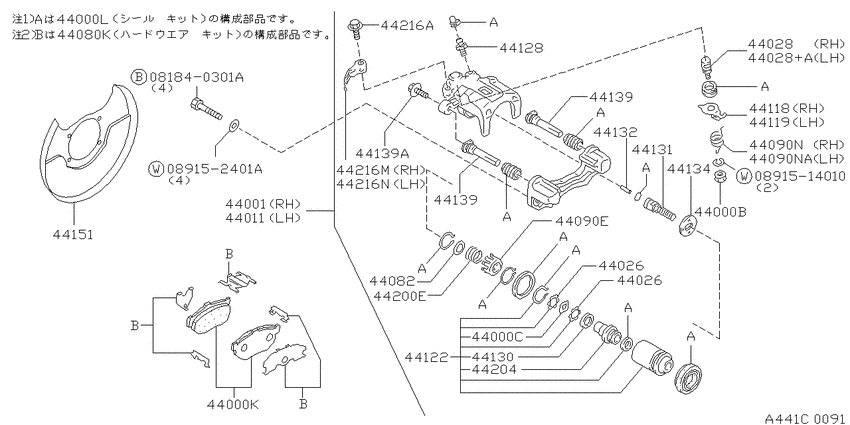

Rear brake (1993-01-01 ~ 1995-08-01; 4WD.SR20DE) Diagram Nissan AVENIR
- Year
- 1990 - 1995
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- AT
- grade
- 2.0SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081840301A
|
081840301A
081840301A Bolt-hexagon |
081840301A |
from US $0.76 |
||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000B
|
44000B
44149-P6500
Nut
9005--01 ~ 9010--01; SR20DE |
44149-P6500 |
— | ||
| replacement | |||||
|
44000B
|
44000B
44149-AW70A Nut9005--01 ~ 9010--01; SR20DE |
44149-AW70A |
US $4.71 |
||
|
44000C
|
44000C
44139-P6500 Washer9005--01 ~ 9010--01; SR20DE |
44139-P6500 |
US $2.45 |
||
|
44000K
|
44000K
AY060-NS010 Pad Kit-Disc Brake9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
AY060-NS010 |
US $131.04 |
||
|
44000K
|
44000K
AY060-NS012 Pad Kit-Disc Brake9501--01 ~ 9508--01; 4WD.SR20DE |
AY060-NS012 |
US $131.04 |
||
|
44000K
|
44000K
AY060NS013 Pad Kit-Disc Brake9005--01 ~ 9010--01; SR20DE |
AY060NS013 |
US $131.04 |
||
|
44000L
|
44000L
AY620NS004 Seal Kit-Disc Brake9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
AY620NS004 |
US $61.78 |
||
|
44000L
|
44000L
AY620NS007 Seal Kit-Disc Brake9005--01 ~ 9010--01; SR20DE |
AY620NS007 |
US $97.92 |
||
|
44001
|
44001
44001-78N00 Caliper Assy-Rear Rh, W/o Pads Or Shims9005--01 ~ 9010--01; SR20DE |
44001-78N00 |
US $288 |
||
|
44001
|
44001
44001-87N00 Caliper Assy-Rear Rh, W/o Pads Or Shims9301--01 ~ 9411--01; 4WD.SR20DE |
44001-87N00 |
US $346.92 |
||
|
44001
|
44001
44001-87N01 Caliper Assy-Rear Rh, W/o Pads Or Shims9411--01 ~ 9508--01; 4WD.SR20DE |
44001-87N01 |
US $346.92 |
||
|
44001
|
44001
44001-90N00 Caliper Assy-Rear Rh, W/o Pads Or Shims9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44001-90N00 |
US $502.68 |
||
|
44011
|
44011
44011-78N00 Caliper Assy-Rear Lh, W/o Pads Or Shims9005--01 ~ 9010--01; SR20DE |
44011-78N00 |
US $288 |
||
|
44011
|
44011
44011-87N00 Caliper Assy-Rear Lh, W/o Pads Or Shims9301--01 ~ 9411--01; 4WD.SR20DE |
44011-87N00 |
US $346.92 |
||
|
44011
|
44011
44011-87N01 Caliper Assy-Rear Lh, W/o Pads Or Shims9411--01 ~ 9508--01; 4WD.SR20DE |
44011-87N01 |
US $346.92 |
||
|
44011
|
44011
44011-90N00 Caliper Assy-Rear Lh, W/o Pads Or Shims9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44011-90N00 |
US $502.68 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44133-61E00 |
US $5.04 |
||
|
44026
|
44026
44133-N9502 Spacer-Adjusting9005--01 ~ 9010--01; SR20DE |
44133-N9502 |
US $2.45 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44133-61E00 |
US $5.04 |
||
|
44026
|
44026
44133-N9502 Spacer-Adjusting9005--01 ~ 9010--01; SR20DE |
44133-N9502 |
US $2.45 |
||
|
44028
|
44028
44142-44B00 Cam-Adjusting, Rear Brake9301--01 ~ 9508--01; 4WD.SR20DE; ﾐｷﾞ ﾖｳ |
44142-44B00 |
US $36.03 |
||
|
44028
|
44028
44142-N9502
Cam-Adjusting, Rear Brake
9005--01 ~ 9010--01; SR20DE; ﾐｷﾞ ﾖｳ |
44142-N9502 |
— | ||
| replacement | |||||
|
44028
|
44028
44142-44B00 Cam-Adjusting, Rear Brake9005--01 ~ 9010--01; SR20DE; ﾐｷﾞ ﾖｳ |
44142-44B00 |
US $36.03 |
||
|
44028
|
44028
44143-44B00 Cam-Adjusting, Rear Brake9301--01 ~ 9508--01; 4WD.SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44143-44B00 |
US $36.03 |
||
|
44028
|
44028
44143-N9502
Cam-Adjusting, Rear Brake
9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44143-N9502 |
— | ||
| replacement | |||||
|
44028
|
44028
44143-44B00 Cam-Adjusting, Rear Brake9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44143-44B00 |
US $36.03 |
||
|
44028+A
|
44028+A
44143-44B00 Cam-Adjusting, Rear Brake9301--01 ~ 9508--01; 4WD.SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44143-44B00 |
US $36.03 |
||
|
44028+A
|
44028+A
44143-N9502
Cam-Adjusting, Rear Brake
9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44143-N9502 |
— | ||
| replacement | |||||
|
44028+A
|
44028+A
44143-44B00 Cam-Adjusting, Rear Brake9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44143-44B00 |
US $36.03 |
||
|
44080K
|
44080K
44080-54C25 Hardware Kit-Rear Disc Brake Pad9005--01 ~ 9010--01; SR20DE |
44080-54C25 |
US $64.66 |
||
|
44082
|
44082
44146N9500 Seat-Spring9005--01 ~ 9010--01; SR20DE |
44146N9500 |
US $5.04 |
||
|
44090E
|
44090E
44081-35F00 Cover-Spring9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44081-35F00 |
US $4.18 |
||
|
44090E
|
44090E
44081N9500 Cover-Spring9005--01 ~ 9010--01; SR20DE |
44081N9500 |
US $3.02 |
||
|
44090N
|
44090N
44090-78N00 Spring9005--01 ~ 9010--01; SR20DE; ﾐｷﾞ ﾖｳ |
44090-78N00 |
US $10.80 |
||
|
44090N
|
44090N
44091-78N00 Spring9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44091-78N00 |
US $10.80 |
||
|
44090NA
|
44090NA
44091-78N00 Spring9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44091-78N00 |
US $10.80 |
||
|
44118
|
44118
44095-78N00 Lever Assy-Rh9005--01 ~ 9010--01; SR20DE |
44095-78N00 |
US $29.95 |
||
|
44118
|
44118
44085U8700 Washer-Lock9010--01 ~ 9301--01; 4WD.SR20DE |
44085U8700 |
US $4.03 |
||
|
44119
|
44119
44096-78N00 Lever Assy-Lh9005--01 ~ 9010--01; SR20DE |
44096-78N00 |
US $29.95 |
||
|
44122
|
44122
4412361E00 PISTON9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
4412361E00 |
US $78.19 |
||
|
44122
|
44122
44123N9502 Piston9005--01 ~ 9010--01; SR20DE |
44123N9502 |
US $123.84 |
||
|
44128
|
44128
41128-21010
Screw-Bleeder
9005--01 ~ 9010--01; SR20DE |
41128-21010 |
— | ||
|
44128
|
44128
4112888E01
SCREW-BLEEDER
9301--01 ~ 9508--01; 4WD.SR20DE |
4112888E01 |
— | ||
| replacement | |||||
|
44128
|
44128
41128AW70A Screw-Bleeder9301--01 ~ 9508--01; 4WD.SR20DE |
41128AW70A |
from US $7.63 |
||
|
44128
|
44128
41128-B5012 Screw-Bleeder9010--01 ~ 9301--01; 4WD.SR20DE; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U5200 Screw-Bleeder, Clutch Damper9010--01 ~ 9301--01; 4WD.SR20DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-U5200 |
US $9.02 |
||
|
44130
|
44130
44130-P6500 Bearing9005--01 ~ 9010--01; SR20DE |
44130-P6500 |
US $11.09 |
||
|
44131
|
44131
4413461E00 ROD-PUSH9005--01 ~ 9010--01; SR20DE |
4413461E00 |
US $15.41 |
||
|
44132
|
44132
44132N9500 Strut9005--01 ~ 9010--01; SR20DE |
44132N9500 |
US $9.15 |
||
|
44134
|
44134
44131-N9500 Plate9005--01 ~ 9010--01; SR20DE |
44131-N9500 |
US $2.45 |
||
|
44139
|
44139
44140N9500 Pin-Lock9005--01 ~ 9010--01; SR20DE |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
9005--01 ~ 9010--01; SR20DE |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt9005--01 ~ 9010--01; SR20DE |
44141AW70A |
from US $3.35 |
||
|
44139
|
44139
44140N9500 Pin-Lock9005--01 ~ 9010--01; SR20DE |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
9005--01 ~ 9010--01; SR20DE |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt9005--01 ~ 9010--01; SR20DE |
44141AW70A |
from US $3.35 |
||
|
44139A
|
44139A
44141-N9500
Pin-Bolt
9005--01 ~ 9010--01; SR20DE |
44141-N9500 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141AW70A Pin-Bolt9005--01 ~ 9010--01; SR20DE |
44141AW70A |
from US $3.35 |
||
|
44151
|
44151
44150-78N00 Plate-Baffle9005--01 ~ 9010--01; *SR20DE; ﾐｷﾞ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44150-78N00 |
US $30.24 |
||
|
44151
|
44151
44151-78N01 Plate-Baffle9005--01 ~ 9010--01; SR20DE; ﾐｷﾞ ﾖｳ |
44151-78N01 |
US $25.20 |
||
|
44151
|
44151
44151-87N00 Plate-Baffle9301--01 ~ 9508--01; 4WD.SR20DE; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
44151-87N00 |
US $33.41 |
||
|
44151
|
44151
44160-78N00 Plate-Baffle9005--01 ~ 9010--01; *SR20DE; ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44160-78N00 |
US $30.24 |
||
|
44151
|
44151
44161-78N01 Plate-Baffle9005--01 ~ 9010--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
44161-78N01 |
US $25.20 |
||
|
44151
|
44151
0141100131 BOLT9005--01 ~ 9010--01; SR20DE |
0141100131 |
US $1.73 |
||
|
44200E
|
44200E
44147-61E00 SPRING9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44147-61E00 |
US $4.18 |
||
|
44200E
|
44200E
44147N9500 Spring9005--01 ~ 9010--01; SR20DE |
44147N9500 |
US $5.04 |
||
|
44204
|
44204
44128-61E00 NUT-ADJUSTER9508--01 ~ 9701--01; SR20DE +SR20DET +CD20T |
44128-61E00 |
US $11.66 |
||
|
44204
|
44204
44128-P6500 Nut-Adjuster9005--01 ~ 9010--01; SR20DE |
44128-P6500 |
US $40.46 |
||
|
44216A
|
44216A
44252-01P04 Bolt9005--01 ~ 9010--01; SR20DE |
44252-01P04 |
US $5.76 |
||
|
44216A
|
44216A
44252-53F00 Bolt9301--01 ~ 9508--01; 4WD.SR20DE |
44252-53F00 |
US $5.90 |
||
|
44216M
|
44216M
44195-78N00 Guide-Adjust Cable, Rh9005--01 ~ 9010--01; SR20DE |
44195-78N00 |
US $33.12 |
||
|
44216M
|
44216M
44195-87N00 Guide-Adjust Cable, Rh9301--01 ~ 9401--01; 4WD.SR20DE |
44195-87N00 |
US $33.12 |
||
|
44216M
|
44216M
44195-87N01 Guide-Adjust Cable, Rh9312--01 ~ 9508--01; 4WD.SR20DE |
44195-87N01 |
US $32.98 |
||
|
44216N
|
44216N
44196-78N00 Guide-Adjust Cable, Lh9005--01 ~ 9010--01; SR20DE |
44196-78N00 |
US $33.12 |
||
|
44216N
|
44216N
44196-87N00 Guide-Adjust Cable, Lh9301--01 ~ 9401--01; 4WD.SR20DE |
44196-87N00 |
US $33.12 |
||
|
44216N
|
44216N
44196-87N01 Guide-Adjust Cable, Lh9312--01 ~ 9508--01; 4WD.SR20DE |
44196-87N01 |
US $32.98 |
||
