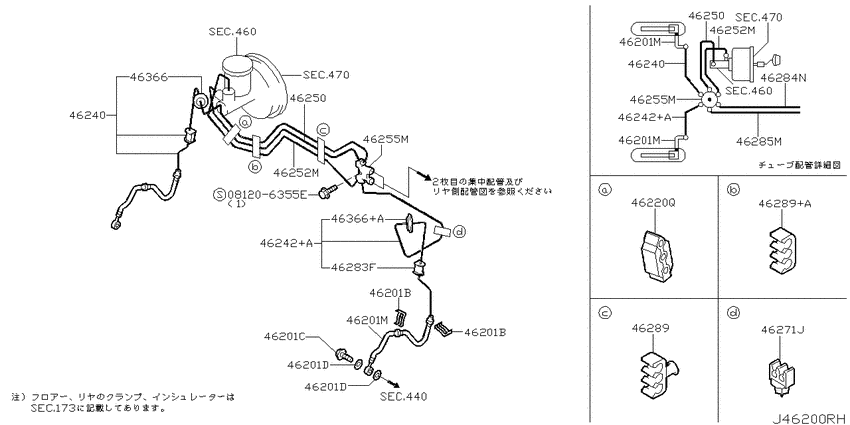

Brake piping & control (1994-11-01 ~ 1995-08-01; !フロント パイピング(ABS無し); W.CD20T) Diagram Nissan AVENIR
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- CD20T
- drive
- 2WD
- transmission
- AT
- grade
- 2.0EF
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206355E
|
081206355E
08120-6355E
Bolt-hexagon
|
08120-6355E |
— | ||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
46201B
|
46201B
46206M0200 Spring-Lock9301--01 ~ 9411--01; W.CD20T |
46206M0200 |
from US $0.74 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock9301--01 ~ 9411--01; W.CD20T |
46206M0200 |
from US $0.74 |
||
|
46201C
|
46201C
46356-01E01
BOLT-UNION,FRONT BRAKE HOSE
9301--01 ~ 9409--01; W.CD20T |
46356-01E01 |
— | ||
| replacement | |||||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose9301--01 ~ 9409--01; W.CD20T |
463560E00A |
from US $1.52 |
||
|
46201C
|
46201C
46356-0E000
BOLT-UNION,FRONT BRAKE HOSE
9409--01 ~ 9411--01; W.CD20T |
46356-0E000 |
— | ||
| replacement | |||||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose9409--01 ~ 9411--01; W.CD20T |
463560E00A |
from US $1.52 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose9301--01 ~ 9411--01; W.CD20T |
46237A4600 |
from US $0.37 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose9301--01 ~ 9411--01; W.CD20T |
46237A4600 |
from US $0.37 |
||
|
46201M
|
46201M
46210-51E00 HOSE ASSY-BRAKE,FRONT9301--01 ~ 9411--01; W.CD20T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
46210-51E00 |
US $46.22 |
||
|
46201M
|
46201M
4621051E10 HOSE ASSY-BRAKE,FRONT9301--01 ~ 9411--01; W.CD20T; ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
4621051E10 |
US $42.19 |
||
|
46201M
|
46201M
46210-51E00 HOSE ASSY-BRAKE,FRONT9301--01 ~ 9411--01; W.CD20T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
46210-51E00 |
US $46.22 |
||
|
46201M
|
46201M
4621051E10 HOSE ASSY-BRAKE,FRONT9301--01 ~ 9411--01; W.CD20T; ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
4621051E10 |
US $42.19 |
||
|
46201M
|
46201M
46210-51E00 HOSE ASSY-BRAKE,FRONT9301--01 ~ 9411--01; W.CD20T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
46210-51E00 |
US $46.22 |
||
|
46201M
|
46201M
4621051E10 HOSE ASSY-BRAKE,FRONT9301--01 ~ 9411--01; W.CD20T; ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
4621051E10 |
US $42.19 |
||
|
46220Q
|
46220Q
0156100241 CLAMP9301--01 ~ 9411--01; W.CD20T |
0156100241 |
from US $0.57 |
||
|
46220Q
|
46220Q
46271-32P10 Clamp9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46271-32P10 |
US $2.02 |
||
|
46240
|
46240
46240-86N00 Tube Assy-Brake, Front Rh9301--01 ~ 9411--01; W.CD20T |
46240-86N00 |
US $21.89 |
||
|
46240
|
46240
46240-86N60 Tube Assy-Brake, Front Rh9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46240-86N60 |
US $21.89 |
||
|
46240
|
46240
46240-90N60 Tube Assy-Brake, Front Rh9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46240-90N60 |
US $21.89 |
||
|
46240
|
46240
46240-86N00 Tube Assy-Brake, Front Rh9301--01 ~ 9411--01; W.CD20T |
46240-86N00 |
US $21.89 |
||
|
46240
|
46240
46240-86N60 Tube Assy-Brake, Front Rh9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46240-86N60 |
US $21.89 |
||
|
46240
|
46240
46240-90N60 Tube Assy-Brake, Front Rh9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46240-90N60 |
US $21.89 |
||
|
46242+A
|
46242+A
46283-78N00 Tube Assy-Brake, Front Lh9301--01 ~ 9411--01; W.CD20T |
46283-78N00 |
US $14.26 |
||
|
46242+A
|
46242+A
46283-78N00 Tube Assy-Brake, Front Lh9301--01 ~ 9411--01; W.CD20T |
46283-78N00 |
US $14.26 |
||
|
46250
|
46250
46250-86N00 Tube Assy-Brake, Front Master Cylinder9301--01 ~ 9411--01; W.CD20T |
46250-86N00 |
US $19.01 |
||
|
46250
|
46250
46250-86N60 Tube Assy-Brake, Front Master Cylinder9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46250-86N60 |
US $21.17 |
||
|
46250
|
46250
46250-90N60 Tube Assy-Brake, Front Master Cylinder9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46250-90N60 |
US $19.01 |
||
|
46250
|
46250
46250-86N00 Tube Assy-Brake, Front Master Cylinder9301--01 ~ 9411--01; W.CD20T |
46250-86N00 |
US $19.01 |
||
|
46250
|
46250
46250-86N60 Tube Assy-Brake, Front Master Cylinder9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46250-86N60 |
US $21.17 |
||
|
46250
|
46250
46250-90N60 Tube Assy-Brake, Front Master Cylinder9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46250-90N60 |
US $19.01 |
||
|
46252M
|
46252M
46252-86N00 Tube Assy-Brake, Rear Master Cylinder9301--01 ~ 9411--01; W.CD20T |
46252-86N00 |
US $21.17 |
||
|
46252M
|
46252M
46252-86N60 Tube Assy-Brake, Rear Master Cylinder9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46252-86N60 |
US $19.01 |
||
|
46252M
|
46252M
46252-90N60 Tube Assy-Brake, Rear Master Cylinder9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46252-90N60 |
US $19.01 |
||
|
46252M
|
46252M
46252-86N00 Tube Assy-Brake, Rear Master Cylinder9301--01 ~ 9411--01; W.CD20T |
46252-86N00 |
US $21.17 |
||
|
46252M
|
46252M
46252-86N60 Tube Assy-Brake, Rear Master Cylinder9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46252-86N60 |
US $19.01 |
||
|
46252M
|
46252M
46252-90N60 Tube Assy-Brake, Rear Master Cylinder9411--01 ~ 9508--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46252-90N60 |
US $19.01 |
||
|
46255M
|
46255M
46255-01B00 Connector Assy-6 Way9301--01 ~ 9411--01; W.CD20T |
46255-01B00 |
US $43.49 |
||
|
46255M
|
46255M
46255-01B00 Connector Assy-6 Way9301--01 ~ 9411--01; W.CD20T |
46255-01B00 |
US $43.49 |
||
|
46271J
|
46271J
46271-50A00
Insulator
9301--01 ~ 9411--01; W.CD20T |
46271-50A00 |
— | ||
| replacement | |||||
|
46271J
|
46271J
4627101E01 CLAMP-BRAKE TUBE9301--01 ~ 9411--01; W.CD20T |
4627101E01 |
US $2.91 |
||
|
46271J
|
46271J
46271-86N60 Insulator9301--01 ~ 9411--01; *W.CD20T; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46271-86N60 |
US $6.48 |
||
|
46283F
|
46283F
46283-89916 Insulator9301--01 ~ 9411--01; W.CD20T |
46283-89916 |
US $2.45 |
||
|
46284N
|
46284N
46284-78N00 Tube Assy-Brake9301--01 ~ 9411--01; W.CD20T |
46284-78N00 |
US $34.13 |
||
|
46285M
|
46285M
46285-78N00 Tube Assy-Brake, Rear9301--01 ~ 9411--01; W.CD20T |
46285-78N00 |
US $30.24 |
||
|
46289
|
46289
46289-85E00 CLAMP9301--01 ~ 9411--01; W.CD20T |
46289-85E00 |
US $2.78 |
||
|
46289
|
46289
46289-81L00 Clamp9301--01 ~ 9411--01; W.CD20T |
46289-81L00 |
US $3.02 |
||
|
46289+A
|
46289+A
46289-81L00 Clamp9301--01 ~ 9411--01; W.CD20T |
46289-81L00 |
US $3.02 |
||
|
46366
|
46366
46366H5001 Grommet9301--01 ~ 9411--01; W.CD20T |
46366H5001 |
US $2.88 |
||
|
46366
|
46366
46366H5001 Grommet9301--01 ~ 9411--01; W.CD20T |
46366H5001 |
US $2.88 |
||
|
46366+A
|
46366+A
46366H5001 Grommet9301--01 ~ 9411--01; W.CD20T |
46366H5001 |
US $2.88 |
||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
