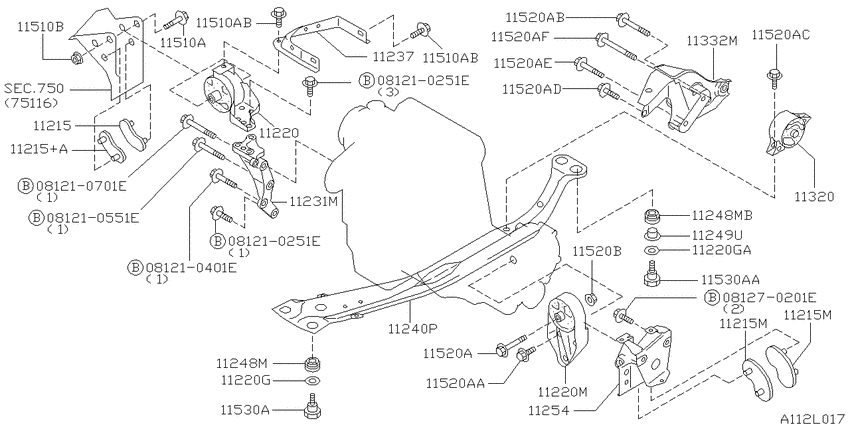

Engine & transmission mounting (1994-11-01 ~ 1995-08-01; GA16DS.AT) Diagram Nissan AVENIR
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- GA16DS
- drive
- 2WD
- transmission
- AT
- grade
- VX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.11 |
||
|
081210551E
|
081210551E
081210551E
Bolt-hexagon
|
081210551E |
— | ||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9005--01 ~ 9301--01; GA16DS.AT |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121568E00 STOPPER-ENGINE MOUNTING9005--01 ~ 9301--01; GA16DS.AT |
1121568E00 |
US $14.11 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9005--01 ~ 9301--01; GA16DS.AT |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9411--01 ~ 9508--01; GA16DS.AT |
1121554E00 |
US $17.57 |
||
|
11215+A
|
11215+A
1121568E00 STOPPER-ENGINE MOUNTING9005--01 ~ 9301--01; GA16DS.AT |
1121568E00 |
US $14.11 |
||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9411--01 ~ 9508--01; GA16DS.AT |
1121554E00 |
US $17.57 |
||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9411--01 ~ 9508--01; GA16DS.AT |
1121554E00 |
US $17.57 |
||
|
11220
|
11220
11210-70N00 Insulator Assy-Engine Mounting, Front Rh9411--01 ~ 9508--01; GA16DS.AT |
11210-70N00 |
US $171.36 |
||
|
11220
|
11220
01311-01171 WASHER9411--01 ~ 9508--01; GA16DS.AT |
01311-01171 |
US $3.06 |
||
|
11220
|
11220
01311-01181 WASHER9411--01 ~ 9508--01; GA16DS.AT |
01311-01181 |
US $2.45 |
||
|
11220
|
11220
11220-70N10 Insulator Assy-Engine Mounting, Front Lh9005--01 ~ 9301--01; GA16DS.AT |
11220-70N10 |
US $138.96 |
||
|
11220G
|
11220G
01311-01171 WASHER9411--01 ~ 9508--01; GA16DS.AT |
01311-01171 |
US $3.06 |
||
|
11220G
|
11220G
01311-01181 WASHER9411--01 ~ 9508--01; GA16DS.AT |
01311-01181 |
US $2.45 |
||
|
11220GA
|
11220GA
01311-01181 WASHER9411--01 ~ 9508--01; GA16DS.AT |
01311-01181 |
US $2.45 |
||
|
11220M
|
11220M
11220-70N10 Insulator Assy-Engine Mounting, Front Lh9005--01 ~ 9301--01; GA16DS.AT |
11220-70N10 |
US $138.96 |
||
|
11231M
|
11231M
11231-50J00 Bracket-Engine Mounting9411--01 ~ 9508--01; GA16DS.AT |
11231-50J00 |
US $81.36 |
||
|
11237
|
11237
11237-70N00 Stay-Engine Mounting, Rh9005--01 ~ 9301--01; GA16DS.AT |
11237-70N00 |
US $57.89 |
||
|
11240P
|
11240P
11240-65E01 MEMBER ASSY-FRONT,CENTER9411--01 ~ 9508--01; GA16DS.AT |
11240-65E01 |
US $247.68 |
||
|
11248M
|
11248M
1124851E01 PAD-ENGINE MOUNTING MEMBER9411--01 ~ 9508--01; GA16DS.AT |
1124851E01 |
US $9.02 |
||
|
11248M
|
11248M
1124851E09 PAD-ENGINE MOUNTING MEMBER9411--01 ~ 9508--01; GA16DS.AT |
1124851E09 |
from US $7.44 |
||
|
11248MB
|
11248MB
1124851E09 PAD-ENGINE MOUNTING MEMBER9411--01 ~ 9508--01; GA16DS.AT |
1124851E09 |
from US $7.44 |
||
|
11249U
|
11249U
11249-51E05 PIN-MOUNTING9411--01 ~ 9508--01; GA16DS.AT |
11249-51E05 |
US $8.21 |
||
|
11254
|
11254
11253-30R00 Support-Engine Mounting, Lh9411--01 ~ 9508--01; GA16DS.AT |
11253-30R00 |
US $134.35 |
||
|
11320
|
11320
1132070N10 Insulator-Engine Mounting, Rear9005--01 ~ 9301--01; GA16DS.AT |
1132070N10 |
US $75.02 |
||
|
11332M
|
11332M
11332-70N10 Bracket-Engine Mounting, Rear9005--01 ~ 9301--01; GA16DS.AT |
11332-70N10 |
US $102.38 |
||
|
11332M
|
11332M
11332-81N00 Bracket-Engine Mounting, Rear9503--01 ~ 9508--01; GA16DS.AT |
11332-81N00 |
US $102.38 |
||
|
11510A
|
11510A
01125-01671 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01671 |
US $2.45 |
||
|
11510A
|
11510A
01125-01801 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01801 |
US $4.18 |
||
|
11510AB
|
11510AB
01125-01801 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01801 |
US $4.18 |
||
|
11510AB
|
11510AB
01125-01801 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01801 |
US $4.18 |
||
|
11510B
|
11510B
0122500082 NUT9411--01 ~ 9508--01; GA16DS.AT |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
01125-00661 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-00661 |
US $4.18 |
||
|
11520A
|
11520A
01125-02151 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-02151 |
US $2.45 |
||
|
11520A
|
11520A
01125-00831 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-00831 |
US $3.31 |
||
|
11520A
|
11520A
01121-04861 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01121-04861 |
US $4.18 |
||
|
11520A
|
11520A
01125-01851 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01851 |
US $4.18 |
||
|
11520A
|
11520A
01125-01731 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01731 |
US $4.03 |
||
|
11520A
|
11520A
01125-02111 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-02111 |
US $2.45 |
||
|
11520A
|
11520A
0112503021 BOLT9807--01 ~ ; GA16DS.AT |
0112503021 |
US $3.46 |
||
|
11520AA
|
11520AA
01125-02151 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-02151 |
US $2.45 |
||
|
11520AB
|
11520AB
01125-00831 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-00831 |
US $3.31 |
||
|
11520AC
|
11520AC
01121-04861 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01121-04861 |
US $4.18 |
||
|
11520AD
|
11520AD
01125-01851 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01851 |
US $4.18 |
||
|
11520AE
|
11520AE
01125-01731 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-01731 |
US $4.03 |
||
|
11520AF
|
11520AF
01125-02111 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-02111 |
US $2.45 |
||
|
11520AF
|
11520AF
0112503021 BOLT9807--01 ~ ; GA16DS.AT |
0112503021 |
US $3.46 |
||
|
11520B
|
11520B
0122500082 NUT9411--01 ~ 9508--01; GA16DS.AT |
0122500082 |
from US $0.61 |
||
|
11530A
|
11530A
01125-02401 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-02401 |
US $3.06 |
||
|
11530A
|
11530A
1129852R00 Bolt9508--01 ~ ; GA16DS.AT |
1129852R00 |
US $3.46 |
||
|
11530A
|
11530A
01125-00093 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-00093 |
US $1.73 |
||
|
11530AA
|
11530AA
01125-00093 BOLT9411--01 ~ 9508--01; GA16DS.AT |
01125-00093 |
US $1.73 |
||
|
