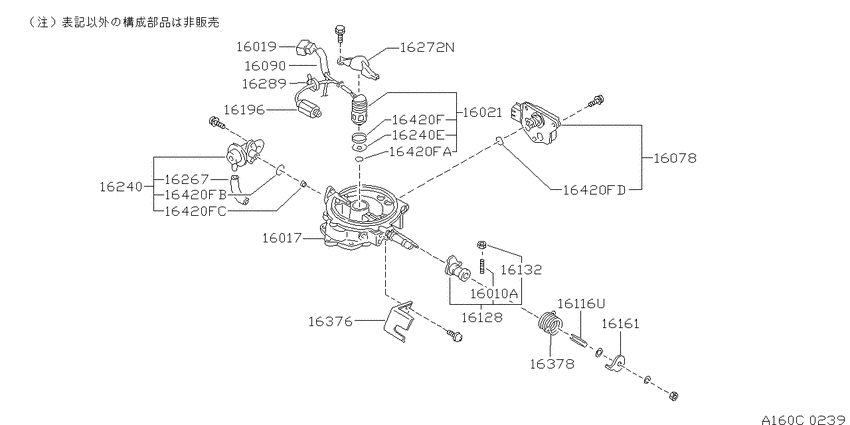

Carburetor (1990-05-01 ~ 1993-01-01; スロットルチャンバー構成パーツ; SR18DI) Diagram Nissan AVENIR
- Year
- 1990 - 1993
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 2WD
- transmission
- MT
- grade
- SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010A
|
16010A
16145-11M02 Screw9005--01 ~ 9301--01; SR18DI |
16145-11M02 |
US $4.90 |
||
|
16010A
|
16010A
16183-12G05 Screw-Adjusting9005--01 ~ 9301--01; SR18DI |
16183-12G05 |
US $4.90 |
||
|
16017
|
16017
16017-64J00 Chamber Assy-Venturi9005--01 ~ 9301--01; SR18DI.MT |
16017-64J00 |
US $1,367.86 |
||
|
16019
|
16019
16019-64J00 Coupler9005--01 ~ 9301--01; SR18DI |
16019-64J00 |
US $12.10 |
||
|
16021
|
16021
16021-64J00 Injector-S.p.i9005--01 ~ 9301--01; SR18DI |
16021-64J00 |
US $348.34 |
||
|
16078
|
16078
16078-64J00 AIR FLOW METER9005--01 ~ 9301--01; SR18DI |
16078-64J00 |
US $304.65 |
||
|
16090
|
16090
16090-64J00 Tube-I.s.s9005--01 ~ 9301--01; SR18DI |
16090-64J00 |
US $50.40 |
||
|
16116U
|
16116U
16116-86G00 Retainer-Spring9005--01 ~ 9301--01; SR18DI |
16116-86G00 |
US $4.18 |
||
|
16116U
|
16116U
16116-41G05 Sleeve-E9005--01 ~ 9301--01; SR18DI |
16116-41G05 |
US $5.90 |
||
|
16116U
|
16116U
16116-64J00 Sleeve-E9005--01 ~ 9301--01; SR18DI |
16116-64J00 |
US $7.20 |
||
|
16128
|
16128
16128-64J00 Cam-Fast Idle9005--01 ~ 9301--01; SR18DI.MT |
16128-64J00 |
US $8.78 |
||
|
16132
|
16132
16132-21615 Nut9005--01 ~ 9301--01; SR18DI |
16132-21615 |
US $4.90 |
||
|
16161
|
16161
16161-64J00 Hanger-Spring9005--01 ~ 9301--01; SR18DI |
16161-64J00 |
US $7.20 |
||
|
16196
|
16196
16196-64J00 Iacv-Ficd Solenoid Valve9005--01 ~ 9301--01; SR18DI |
16196-64J00 |
US $99.94 |
||
|
16196
|
16196
16024-64J00 Holder9005--01 ~ 9301--01; SR18DI |
16024-64J00 |
US $7.20 |
||
|
16240
|
16240
16240-64J00 Regulator-Pressure9005--01 ~ 9301--01; SR18DI |
16240-64J00 |
US $234.72 |
||
|
16240
|
16240
16349-64J00 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16349-64J00 |
US $5.04 |
||
|
16240E
|
16240E
16349-64J00 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16349-64J00 |
US $5.04 |
||
|
16267
|
16267
16267-64J00 Pipe-Rubber9005--01 ~ 9301--01; SR18DI |
16267-64J00 |
US $22.18 |
||
|
16272N
|
16272N
16615-64J00 Cover-Center9005--01 ~ 9301--01; SR18DI |
16615-64J00 |
US $12.10 |
||
|
16289
|
16289
16276-12G00 Clip-Harness9005--01 ~ 9301--01; SR18DI |
16276-12G00 |
US $12.53 |
||
|
16376
|
16376
16165-64J00 Bracket-Accelerator Cable9005--01 ~ 9301--01; SR18DI |
16165-64J00 |
US $18.72 |
||
|
16378
|
16378
16378-64J00 Spring-Cam9005--01 ~ 9301--01; SR18DI |
16378-64J00 |
US $4.90 |
||
|
16420F
|
16420F
16328-64J00 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-64J00 |
US $4.90 |
||
|
16420F
|
16420F
16328-64J10 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-64J10 |
US $4.90 |
||
|
16420F
|
16420F
16328-12G00 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-12G00 |
US $5.76 |
||
|
16420F
|
16420F
16328-12G01 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-12G01 |
US $7.34 |
||
|
16420F
|
16420F
16328-12G04 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-12G04 |
US $5.76 |
||
|
16420FA
|
16420FA
16328-64J10 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-64J10 |
US $4.90 |
||
|
16420FB
|
16420FB
16328-12G00 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-12G00 |
US $5.76 |
||
|
16420FC
|
16420FC
16328-12G01 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-12G01 |
US $7.34 |
||
|
16420FD
|
16420FD
16328-12G04 Seal-O Ring9005--01 ~ 9301--01; SR18DI |
16328-12G04 |
US $5.76 |
