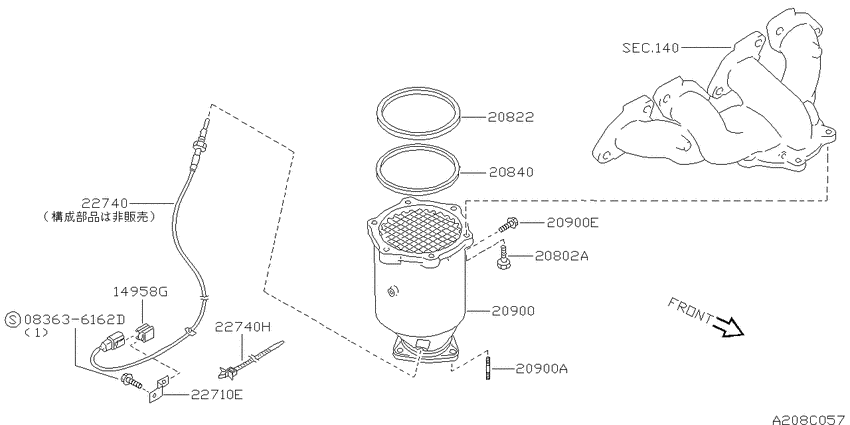

Catalyst converter (1990-05-01 ~ 1993-01-01; SR18DI) Diagram Nissan AVENIR
- Year
- 1990 - 1993
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 2WD
- transmission
- MT
- grade
- SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162D
|
083636162D
08363-6162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6162D |
— | ||
| replacement | |||||
|
083636162D
|
083636162D
08360-6162D Screw |
08360-6162D |
US $1.93 |
||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
14958G
|
14958G
22316-17C00 Clip9005--01 ~ 9301--01; SR18DI |
22316-17C00 |
US $2.02 |
||
|
20802A
|
20802A
14434V0301 Bolt9005--01 ~ 9301--01; SR18DI |
14434V0301 |
from US $4.14 |
||
|
20822
|
20822
20822D0100 Cap-Converter9005--01 ~ 9301--01; SR18DI |
20822D0100 |
from US $9.50 |
||
|
20840
|
20840
20840-D0100 Washer-Wire Mesh9005--01 ~ 9301--01; SR18DI |
20840-D0100 |
US $15.84 |
||
| replacement | |||||
|
20840
|
20840
2084064J10 Washer-Wire Mesh9005--01 ~ 9301--01; SR18DI |
2084064J10 |
US $12.10 |
||
|
20900
|
20900
B0800-64J00 Three Way Catalyst9005--01 ~ 9301--01; SR18DI; ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
B0800-64J00 |
US $705.17 |
||
|
20900
|
20900
B0800-64J60 Three Way Catalyst9005--01 ~ 9301--01; SR18DI; ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
B0800-64J60 |
US $705.17 |
||
|
20900
|
20900
14064-58Y00 Stud9109--01 ~ 9301--01; SR18DI |
14064-58Y00 |
US $3.46 |
||
|
20900
|
20900
14064N4200 Stud9005--01 ~ 9109--01; SR18DI |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
20900
|
20900
14064-N420A Stud9005--01 ~ 9109--01; SR18DI |
14064-N420A |
from US $2.22 |
||
|
20900
|
20900
20811-50A00 Pin9005--01 ~ 9301--01; SR18DI |
20811-50A00 |
US $5.04 |
||
| replacement | |||||
|
20900
|
20900
20829-0M300 Pin9005--01 ~ 9301--01; SR18DI |
20829-0M300 |
US $5.04 |
||
|
20900A
|
20900A
14064-58Y00 Stud9109--01 ~ 9301--01; SR18DI |
14064-58Y00 |
US $3.46 |
||
|
20900A
|
20900A
14064N4200 Stud9005--01 ~ 9109--01; SR18DI |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
20900A
|
20900A
14064-N420A Stud9005--01 ~ 9109--01; SR18DI |
14064-N420A |
from US $2.22 |
||
|
20900E
|
20900E
20811-50A00 Pin9005--01 ~ 9301--01; SR18DI |
20811-50A00 |
US $5.04 |
||
| replacement | |||||
|
20900E
|
20900E
20829-0M300 Pin9005--01 ~ 9301--01; SR18DI |
20829-0M300 |
US $5.04 |
||
|
22710E
|
22710E
22715-76N00 Bracket-Sensor9005--01 ~ 9301--01; SR18DI |
22715-76N00 |
US $12.38 |
||
|
22740
|
22740
22740-76N00 Sensor Assy-Catalyst9005--01 ~ 9301--01; SR18DI |
22740-76N00 |
US $443.21 |
||
|
22740
|
22740
24228-89964 Clip-Wiring Harness9005--01 ~ 9301--01; SR18DI |
24228-89964 |
US $2.49 |
||
|
22740H
|
22740H
24228-89964 Clip-Wiring Harness9005--01 ~ 9301--01; SR18DI |
24228-89964 |
US $2.49 |
||
