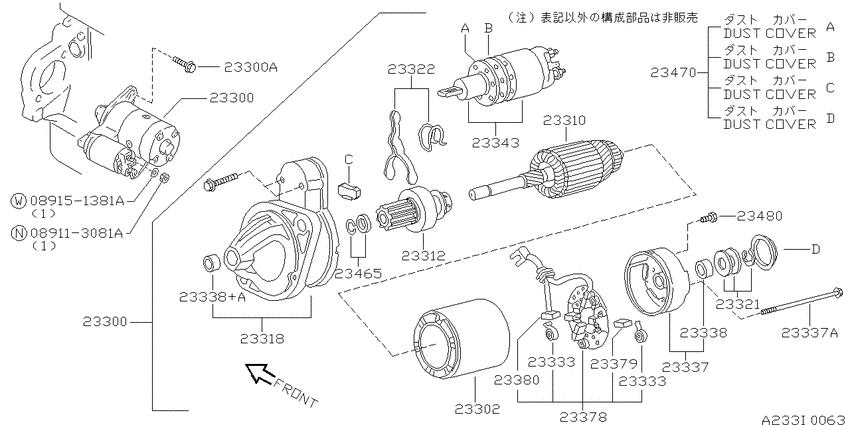

Starter motor (1990-08-01 ~ 1993-01-01; 日立; SR18DI.MT) Diagram Nissan AVENIR
- Year
- 1990 - 1993
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 2WD
- transmission
- MT
- grade
- SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
23300
|
23300
23300-53J00 Motor Assy-Starter9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23300-53J00 |
US $758.98 |
||
|
23300
|
23300
23300-53J10 Motor Assy-Starter9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23300-53J10 |
US $1,271.57 |
||
|
23300
|
23300
23300-53J11 Motor Assy-Starter9005--01 ~ 9011--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-53J11 |
US $1,057.75 |
||
|
23300
|
23300
23300-53J12 Motor Assy-Starter9011--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-53J12 |
US $1,163.95 |
||
|
23300
|
23300
01121-05211 BOLT9005--01 ~ 9008--01; SR18DI.MT |
01121-05211 |
US $5.04 |
||
|
23300
|
23300
23300-53J00 Motor Assy-Starter9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23300-53J00 |
US $758.98 |
||
|
23300
|
23300
23300-53J10 Motor Assy-Starter9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23300-53J10 |
US $1,271.57 |
||
|
23300
|
23300
23300-53J11 Motor Assy-Starter9005--01 ~ 9011--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-53J11 |
US $1,057.75 |
||
|
23300
|
23300
23300-53J12 Motor Assy-Starter9011--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-53J12 |
US $1,163.95 |
||
|
23300
|
23300
01121-05211 BOLT9005--01 ~ 9008--01; SR18DI.MT |
01121-05211 |
US $5.04 |
||
|
23300A
|
23300A
01121-05211 BOLT9005--01 ~ 9008--01; SR18DI.MT |
01121-05211 |
US $5.04 |
||
|
23302
|
23302
23302-42L70 Yoke Assy9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23302-42L70 |
US $259.20 |
||
|
23302
|
23302
23302-53J00 Yoke Assy9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23302-53J00 |
US $279.36 |
||
|
23302
|
23302
23302-53J10 Yoke Assy9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23302-53J10 |
US $298.78 |
||
|
23310
|
23310
23310-01N11 Armature Assy9011--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-01N11 |
US $671.18 |
||
|
23310
|
23310
23310-42L70 Armature Assy9005--01 ~ 9010--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-42L70 |
US $382.32 |
||
|
23310
|
23310
23310-53J00 Armature Assy9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23310-53J00 |
US $389.40 |
||
|
23310
|
23310
23310-53J10 Armature Assy9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23310-53J10 |
US $345.50 |
||
|
23310
|
23310
23310-65Y10 Armature Assy9010--01 ~ 9011--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-65Y10 |
US $382.32 |
||
| replacement | |||||
|
23310
|
23310
23310-42L70 Armature Assy9010--01 ~ 9011--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-42L70 |
US $382.32 |
||
|
23312
|
23312
23312-53J00 Pinion Assy9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23312-53J00 |
US $390.82 |
||
|
23312
|
23312
23312-53J11 Pinion Assy9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-53J11 |
US $433.30 |
||
|
23312
|
23312
23312-53J12 Pinion Assy9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-53J12 |
US $106.42 |
||
|
23318
|
23318
23318-53J00 Case Assy-Gear9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23318-53J00 |
US $133.78 |
||
|
23318
|
23318
23318-53J10 Case Assy-Gear9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23318-53J10 |
US $156.96 |
||
|
23318
|
23318
23318-53J11 Case Assy-Gear9005--01 ~ 9011--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-53J11 |
US $119.23 |
||
|
23318
|
23318
23318-53J12 Case Assy-Gear9011--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-53J12 |
US $131.18 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23321-N3300 |
US $4.18 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-42L10 Lever Set-Shift9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23322-42L10 |
US $13.10 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23322-M8100 |
US $12.67 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-53J00 Spring-Brush9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23333-53J00 |
US $8.93 |
||
|
23333
|
23333
23333M1510 Spring-Brush9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-42L71 Spring9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-42L71 |
US $4.03 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-53J00 Spring-Brush9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23333-53J00 |
US $8.93 |
||
|
23333
|
23333
23333M1510 Spring-Brush9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-42L71 Spring9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-01N10 Cover Assy-Rear9011--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-01N10 |
US $68.54 |
||
|
23337
|
23337
23337-42L10 Cover Assy-Rear9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23337-42L10 |
US $33.55 |
||
|
23337
|
23337
23337-42L70 Cover Assy-Rear9005--01 ~ 9011--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-42L70 |
US $45.65 |
||
|
23337
|
23337
23337-53J00 Cover Assy-Rear9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23337-53J00 |
US $56.74 |
||
|
23337
|
23337
23340-20P10 Bolt-Through9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
233404W01A |
US $4.03 |
||
|
23337
|
23337
23340-M4900 Bolt-Through9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340-M8010 Bolt-Through9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover9011--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-01N10 |
from US $9.36 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338+A
|
23338+A
23338N3300 Metal-Rear Cover9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23343
|
23343
23343-53J01 Switch Assy-Magnetic9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23343-53J01 |
US $185.76 |
||
|
23343
|
23343
23343-D0511 Switch Assy-Magnetic9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23343-D0511 |
US $181.44 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-42L70 |
US $60.19 |
||
|
23378
|
23378
23378-53J00 Holder Assy-Brush9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23378-53J00 |
US $58.61 |
||
|
23378
|
23378
23378-53J10 Holder Assy-Brush9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23378-53J10 |
US $58.61 |
||
|
23379
|
23379
23379-53J00 Brush-Minus9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23379-53J00 |
US $14.69 |
||
|
23379
|
23379
23380M8311 Brush-Minus9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380-30R10 Brush-Plus9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23380-30R10 |
from US $8.93 |
||
|
23380
|
23380
23380-53J00 Brush-Minus9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23380-53J00 |
US $14.83 |
||
|
23380
|
23380
23380M8310 Brush-Plus9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion9005--01 ~ 9301--01; *SR18DI.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23465-42L70 |
US $7.63 |
||
|
23465
|
23465
23465-N3300 Stopper Set-Pinion9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23465-N3300 |
US $6.48 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23470-M8000 |
US $12.53 |
||
|
23480
|
23480
23480-M0100 Screw Set9008--01 ~ 9301--01; SR18DI.MT; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
|
23480
|
23480
23480-M0110 Screw Set9005--01 ~ 9008--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
