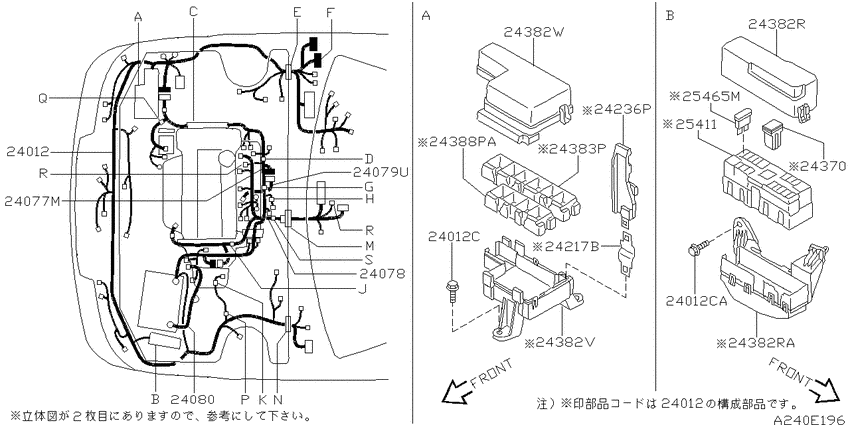

Wiring (1998-08-01 ~ 2000-05-01; エンジン ルーム; W.SR20DET) Diagram Nissan AVENIR
- Year
- 1998 - 2000
- Sales region
- Japan
- Engine
- SR20DET
- drive
- 4WD
- transmission
- AT.F4
- grade
- GT4S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-WA210 Harness Assy-Engine Room9808--01 ~ 0005--01; W.SR20DET |
24012-WA210 |
US $1,289.98 |
||
|
24012
|
24012
01466-00371 SCREW9808--01 ~ 0005--01; W.SR20DET |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
01466-00371 SCREW9808--01 ~ 0005--01; W.SR20DET |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
0145600031 SCREW9808--01 ~ 0005--01; W.SR20DET |
0145600031 |
from US $1.11 |
||
|
24012C
|
24012C
01466-00371 SCREW9808--01 ~ 0005--01; W.SR20DET |
01466-00371 |
US $1.73 |
||
|
24012C
|
24012C
01466-00371 SCREW9808--01 ~ 0005--01; W.SR20DET |
01466-00371 |
US $1.73 |
||
|
24012C
|
24012C
0145600031 SCREW9808--01 ~ 0005--01; W.SR20DET |
0145600031 |
from US $1.11 |
||
|
24012CA
|
24012CA
01466-00371 SCREW9808--01 ~ 0005--01; W.SR20DET |
01466-00371 |
US $1.73 |
||
|
24077M
|
24077M
24077-WA210 Harness Assy-Engine9808--01 ~ 0005--01; W.SR20DET |
24077-WA210 |
US $606.05 |
||
|
24077M
|
24077M
24077-WA215 Harness Assy-Engine9808--01 ~ 9910--01; *W.SR20DET; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-WA215 |
US $606.05 |
||
|
24078
|
24078
24011-WA210 Harness Assy-Egi9808--01 ~ 0005--01; W.SR20DET |
24011-WA210 |
US $741.98 |
||
|
24079U
|
24079U
24079-WA210 Harness Assy-Egi Sub9808--01 ~ 0005--01; W.SR20DET |
24079-WA210 |
US $40.61 |
||
|
24080
|
24080
24080-WA000 Cable Assy-Battery Earth9808--01 ~ 0005--01; W.SR20DET |
24080-WA000 |
US $82.22 |
||
|
24080
|
24080
24080-WA210 Cable Assy-Battery Earth9808--01 ~ 9910--01; *W.SR20DET; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-WA210 |
US $82.22 |
||
|
24217B
|
24217B
24239WA009 Bracket-Harness Clip9808--01 ~ 0005--01; W.SR20DET |
24239WA009 |
US $10.51 |
||
|
24217B
|
24217B
24239-WA010 Bracket-Harness Clip9808--01 ~ 0005--01; W.SR20DET |
24239-WA010 |
US $8.93 |
||
|
24236P
|
24236P
24346-WA000 Bracket-Connector9808--01 ~ 0005--01; W.SR20DET |
24346-WA000 |
US $25.34 |
||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link9808--01 ~ 9910--01; W.SR20DET; 100A |
2437079910 |
from US $13.10 |
||
|
24370
|
24370
24370-C9910 Connector Assy-Fusible Link9808--01 ~ 9910--01; W.SR20DET; 30A |
24370-C9910 |
US $13.10 |
||
|
24370
|
24370
24370-C9920 Connector Assy-Fusible Link9808--01 ~ 9910--01; W.SR20DET; 40A |
24370-C9920 |
US $13.10 |
||
|
24370
|
24370
24370C9980 Connector Assy-Fusible Link9808--01 ~ 9910--01; W.SR20DET; 80A |
24370C9980 |
from US $14.29 |
||
|
24382R
|
24382R
24382-WA015 Cover-Fusible Link Holder9808--01 ~ 0005--01; W.SR20DET |
24382-WA015 |
US $15.84 |
||
|
24382R
|
24382R
24382-WA010 Cover-Fusible Link Holder9808--01 ~ 0005--01; W.SR20DET |
24382-WA010 |
US $15.70 |
||
|
24382RA
|
24382RA
24382-WA010 Cover-Fusible Link Holder9808--01 ~ 0005--01; W.SR20DET |
24382-WA010 |
US $15.70 |
||
|
24382V
|
24382V
24382-WA000 Cover-Relay Box9808--01 ~ 0005--01; W.SR20DET |
24382-WA000 |
US $27.07 |
||
|
24382W
|
24382W
24382-WA020 Cover-Relay Box9808--01 ~ 0005--01; W.SR20DET |
24382-WA020 |
US $19.01 |
||
|
24383P
|
24383P
24383-VB060 Housing-Relay Box9808--01 ~ 0005--01; W.SR20DET |
24383-VB060 |
US $12.96 |
||
|
24388PA
|
24388PA
24388-WA000 Bracket-Relay Box9808--01 ~ 0005--01; W.SR20DET |
24388-WA000 |
US $12.24 |
||
|
25411
|
25411
24380VE700 Holder-Fusible Link9808--01 ~ 0005--01; W.SR20DET |
24380VE700 |
US $40.32 |
||
|
25465M
|
25465M
24319C9910 Fuse9808--01 ~ 9910--01; W.SR20DET; 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9915 Fuse9808--01 ~ 9910--01; W.SR20DET; 15A |
24319C9915 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse9808--01 ~ 9910--01; W.SR20DET; 20A |
24319C9920 |
from US $0.86 |
