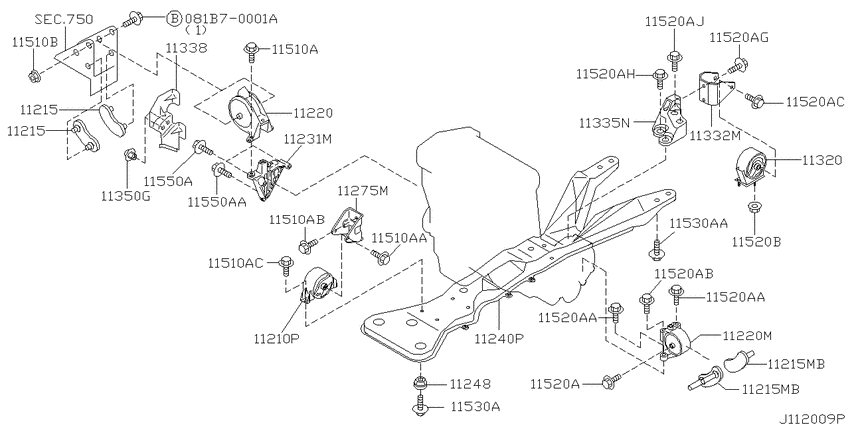

Engine & transmission mounting (2000-05-01 ~ 2002-08-01; 4WD.SR20DE) Diagram Nissan AVENIR
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MCVT
- grade
- SALUT/SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B70001A
|
081B70001A
081B7-0001A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081B7-0001A |
— | ||
|
11210P
|
11210P
112705V000 Insulator Assy-Engine Mounting, Front0005--01 ~ 0208--01; 4WD.SR20DE |
112705V000 |
US $103.54 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING0005--01 ~ 0208--01; 4WD.SR20DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-5J000 Stopper-Engine Mounting0005--01 ~ 0208--01; 4WD.SR20DE |
11215-5J000 |
US $9.50 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING0005--01 ~ 0208--01; 4WD.SR20DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-5J000 Stopper-Engine Mounting0005--01 ~ 0208--01; 4WD.SR20DE |
11215-5J000 |
US $9.50 |
||
|
11215MB
|
11215MB
11215-5J000 Stopper-Engine Mounting0005--01 ~ 0208--01; 4WD.SR20DE |
11215-5J000 |
US $9.50 |
||
|
11215MB
|
11215MB
11215-5J000 Stopper-Engine Mounting0005--01 ~ 0208--01; 4WD.SR20DE |
11215-5J000 |
US $9.50 |
||
|
11220
|
11220
11210WA200 Insulator-Engine Mounting, Front0005--01 ~ 0208--01; 4WD.SR20DE |
11210WA200 |
US $94.75 |
||
|
11220
|
11220
11220WF100 Insulator Assy-Engine Mounting, Front Lh0005--01 ~ 0208--01; 4WD.SR20DE |
11220WF100 |
US $126.68 |
||
|
11220M
|
11220M
11220WF100 Insulator Assy-Engine Mounting, Front Lh0005--01 ~ 0208--01; 4WD.SR20DE |
11220WF100 |
US $126.68 |
||
|
11231M
|
11231M
112315V000 Bracket-Engine Mounting0005--01 ~ 0208--01; 4WD.SR20DE |
112315V000 |
US $67.53 |
||
|
11240P
|
11240P
11240-WA200 Member Assy-Front, Center0005--01 ~ 0208--01; 4WD.SR20DE |
11240-WA200 |
US $300.19 |
||
|
11248
|
11248
112480E002 PAD-ENGINE MOUNTING MEMBER0005--01 ~ 0208--01; 4WD.SR20DE |
112480E002 |
from US $5.09 |
||
|
11275M
|
11275M
112745V500 Bracket-Engine Mounting Block, Front0005--01 ~ 0208--01; 4WD.SR20DE |
112745V500 |
US $30.96 |
||
|
11320
|
11320
11320-WF400 Insulator-Engine Mounting, Rear0005--01 ~ 0208--01; 4WD.SR20DE |
11320-WF400 |
US $94.03 |
||
|
11332M
|
11332M
11332-WA700 Bracket-Engine Mounting, Rear0005--01 ~ 0208--01; 4WD.SR20DE |
11332-WA700 |
US $46.51 |
||
|
11335N
|
11335N
11335-4N200 Support-Engine Mounting, Rear Lh0005--01 ~ 0208--01; 4WD.SR20DE |
11335-4N200 |
US $106.99 |
||
|
11338
|
11338
11338-2J200 Guide-Air, Engine Mounting0005--01 ~ 0208--01; 4WD.SR20DE |
11338-2J200 |
US $13.25 |
||
|
11350G
|
11350G
6387801E10 CLIP0005--01 ~ 0208--01; 4WD.SR20DE |
6387801E10 |
US $1.11 |
||
|
11510A
|
11510A
01125-03271 BOLT0005--01 ~ 0208--01; 4WD.SR20DE |
01125-03271 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J201 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-2J201 |
US $3.46 |
||
|
11510A
|
11510A
0112503041 BOLT0005--01 ~ 0208--01; 4WD.SR20DE |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J207 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-2J207 |
US $3.46 |
||
|
11510AA
|
11510AA
11298-2J201 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-2J201 |
US $3.46 |
||
|
11510AB
|
11510AB
0112503041 BOLT0005--01 ~ 0208--01; 4WD.SR20DE |
0112503041 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-2J207 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-2J207 |
US $3.46 |
||
|
11510B
|
11510B
0122500082 NUT0005--01 ~ 0208--01; 4WD.SR20DE |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
11298-6J700 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-6J700 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M406 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-4M406 |
US $4.03 |
||
|
11520A
|
11520A
11298-5J000 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5J000 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V102 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
547260W005 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
547260W005 |
US $3.06 |
||
|
11520A
|
11520A
547260W005 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
547260W005 |
US $3.06 |
||
|
11520A
|
11520A
11298-5V100 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V100 |
US $3.46 |
||
|
11520AA
|
11520AA
11298-4M406 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-4M406 |
US $4.03 |
||
|
11520AA
|
11520AA
11298-4M406 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-4M406 |
US $4.03 |
||
|
11520AB
|
11520AB
11298-5J000 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5J000 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-5V102 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V102 |
US $3.46 |
||
|
11520AG
|
11520AG
547260W005 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
547260W005 |
US $3.06 |
||
|
11520AH
|
11520AH
547260W005 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
547260W005 |
US $3.06 |
||
|
11520AJ
|
11520AJ
11298-5V100 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V100 |
US $3.46 |
||
|
11520B
|
11520B
0122500082 NUT0005--01 ~ 0208--01; 4WD.SR20DE |
0122500082 |
from US $0.61 |
||
|
11530A
|
11530A
11298-WA001 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-WA001 |
US $3.46 |
||
|
11530A
|
11530A
11298-5V101 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V101 |
from US $1.74 |
||
|
11530AA
|
11530AA
11298-5V101 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V101 |
from US $1.74 |
||
|
11550A
|
11550A
11298-5V003 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-5V003 |
US $3.46 |
||
|
11550A
|
11550A
11298-2J215 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-2J215 |
US $3.46 |
||
|
11550AA
|
11550AA
11298-2J215 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
11298-2J215 |
US $3.46 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
