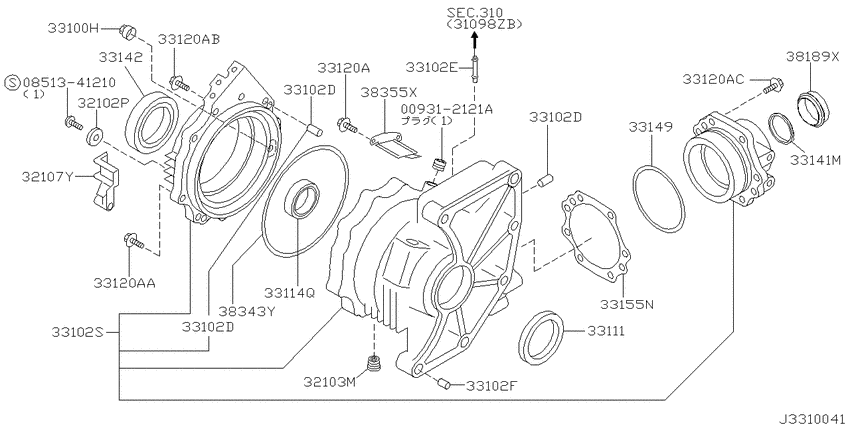

Transfer case (2001-12-01 ~ 2002-08-01; 4WD.SR20DE) Diagram Nissan AVENIR
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MCVT
- grade
- SALUT/SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
0851341210
|
0851341210
08513-41210
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-41210 |
— | ||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
32102P
|
32102P
32105-U8400 Magnet-Transfer0005--01 ~ 0208--01; 4WD.SR20DE |
32105-U8400 |
US $2.45 |
||
|
32103M
|
32103M
01642-00111
PLUG-FILLER
0005--01 ~ 0208--01; 4WD.SR20DE |
01642-00111 |
— | ||
|
32107Y
|
32107Y
32107-4N200 Gutter-Oil0005--01 ~ 0208--01; 4WD.SR20DE |
32107-4N200 |
US $9.36 |
||
|
33100H
|
33100H
31305-5V200 Plug-Filler0005--01 ~ 0208--01; 4WD.SR20DE |
31305-5V200 |
US $2.45 |
||
|
33102D
|
33102D
32105-C6900 Pin0005--01 ~ 0208--01; 4WD.SR20DE |
32105-C6900 |
US $4.18 |
||
|
33102D
|
33102D
32105-C6900 Pin0005--01 ~ 0208--01; 4WD.SR20DE |
32105-C6900 |
US $4.18 |
||
|
33102D
|
33102D
32105-C6900 Pin0005--01 ~ 0208--01; 4WD.SR20DE |
32105-C6900 |
US $4.18 |
||
|
33102E
|
33102E
38322-AD300 Breather0005--01 ~ 0208--01; 4WD.SR20DE |
38322-AD300 |
US $10.80 |
||
|
33102F
|
33102F
1102221000 Dowel-Block To Transmission0005--01 ~ 0208--01; 4WD.SR20DE |
1102221000 |
from US $0.59 |
||
|
33102S
|
33102S
33101-4N270 Case Set-Transfer0005--01 ~ 0208--01; 4WD.SR20DE |
33101-4N270 |
US $590.47 |
||
|
33111
|
33111
33111AD300 Seal-Oil, Ring Gear0005--01 ~ 0208--01; 4WD.SR20DE |
33111AD300 |
US $7.20 |
||
|
33114Q
|
33114Q
33114-AD300 Seal-Oil, Drive Pinion0005--01 ~ 0208--01; 4WD.SR20DE |
33114-AD300 |
from US $7.54 |
||
|
33120A
|
33120A
31377-80X09 Bolt0005--01 ~ 0208--01; 4WD.SR20DE |
31377-80X09 |
US $1.73 |
||
|
33120A
|
33120A
31377-4N261 Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N261 |
US $3.46 |
||
|
33120A
|
33120A
31377-4N272 Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N272 |
US $3.46 |
||
|
33120A
|
33120A
31377-4N270 Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N270 |
US $3.46 |
||
| replacement | |||||
|
33120A
|
33120A
31377-4N27A Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N27A |
US $3.46 |
||
|
33120AA
|
33120AA
31377-4N261 Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N261 |
US $3.46 |
||
|
33120AB
|
33120AB
31377-4N272 Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N272 |
US $3.46 |
||
|
33120AC
|
33120AC
31377-4N270 Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N270 |
US $3.46 |
||
| replacement | |||||
|
33120AC
|
33120AC
31377-4N27A Bolt0112--01 ~ 0208--01; 4WD.SR20DE |
31377-4N27A |
US $3.46 |
||
|
33141M
|
33141M
33141-4N200
Cover-Rear
0005--01 ~ 0208--01; 4WD.SR20DE |
33141-4N200 |
— | ||
| replacement | |||||
|
33141M
|
33141M
331414N20A Cover-Rear0005--01 ~ 0208--01; 4WD.SR20DE |
331414N20A |
US $7.76 |
||
|
33142
|
33142
331424N200 Seal-Oil0005--01 ~ 0208--01; 4WD.SR20DE |
331424N200 |
US $10.73 |
||
|
33149
|
33149
33149-5V200 Seal-O Ring, Pinion Shaft Sleeve0005--01 ~ 0112--01; 4WD.SR20DE |
33149-5V200 |
US $7.48 |
||
|
33149
|
33149
33149-5V210 Seal-O Ring, Pinion Shaft Sleeve0112--01 ~ 0208--01; 4WD.SR20DE |
33149-5V210 |
US $6.79 |
||
|
33155N
|
33155N
33155-5V200 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V200 |
US $8.73 |
||
|
33155N
|
33155N
33155-5V201 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.83 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V201 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V202 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.86 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V202 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V203 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=O.89 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V203 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V204 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.92 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V204 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V205 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V205 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V206 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V206 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V207 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.01 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V207 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V208 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.04 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V208 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V209 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V209 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V210 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V210 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V211 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.13 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V211 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V212 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.16 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V212 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V213 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.19 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V213 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V214 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=0.77 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V214 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V215 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.22 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V215 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V216 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V216 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V217 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.28 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V217 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V218 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.31 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V218 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V219 Shim-Adjust, Pinion Shaft Sleeve0005--01 ~ 0208--01; 4WD.SR20DE; T=1.34 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V219 |
US $9.07 |
||
|
38189X
|
38189X
381894N200
Seal-Oil, Drive Pinion
0005--01 ~ 0208--01; 4WD.SR20DE |
381894N200 |
— | ||
| replacement | |||||
|
38189X
|
38189X
38189-4N20A Seal-Oil, Drive Pinion0005--01 ~ 0208--01; 4WD.SR20DE |
38189-4N20A |
from US $10.54 |
||
|
38343Y
|
38343Y
38343-AD300 Seal-O Ring0005--01 ~ 0208--01; 4WD.SR20DE |
38343-AD300 |
from US $5.68 |
||
|
38355X
|
38355X
38355-4N200 Defense-Gear Oil0005--01 ~ 0208--01; 4WD.SR20DE |
38355-4N200 |
from US $10.22 |
||
