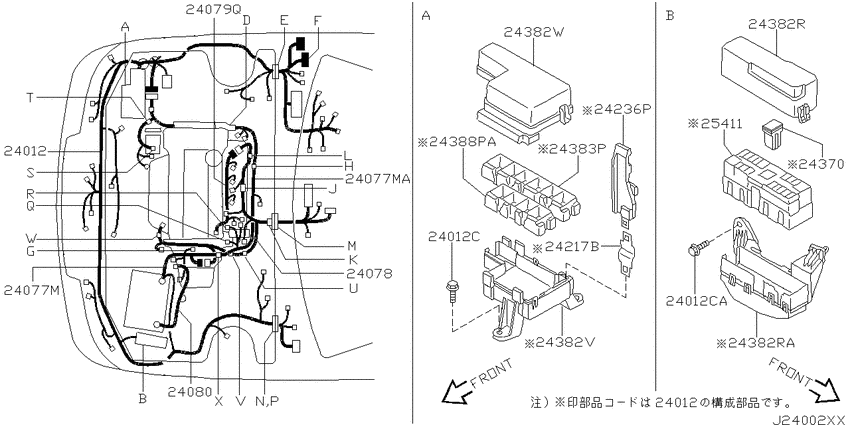

Wiring (2002-08-01 ~ ; エンジン ルーム; W.QR20DE) Diagram Nissan AVENIR
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- SALUT/SI
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-WA910 Harness Assy-Engine Room0208--01 ~ ; W.MCVT |
24012-WA910 |
US $1,289.98 |
||
|
24012
|
24012
01466-00371 SCREW0208--01 ~ ; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
01466-00371 SCREW0208--01 ~ ; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
0145600411 SCREW0208--01 ~ ; W.QR20DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0208--01 ~ ; W.QR20DE |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
01466-00371 SCREW0208--01 ~ ; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24012C
|
24012C
01466-00371 SCREW0208--01 ~ ; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24012C
|
24012C
0145600411 SCREW0208--01 ~ ; W.QR20DE |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0208--01 ~ ; W.QR20DE |
0145600411 |
US $1.67 |
||
|
24012CA
|
24012CA
01466-00371 SCREW0208--01 ~ ; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24077M
|
24077M
24077-WA910 Harness Assy-Engine0208--01 ~ ; W.MCVT |
24077-WA910 |
US $606.05 |
||
|
24077M
|
24077M
24077-WA911 Harness Assy-Engine0208--01 ~ ; *W.MCVT |
24077-WA911 |
US $606.05 |
||
|
24078
|
24078
24011-WA910 Harness Assy-Egi0208--01 ~ 0405--01; W.MCVT |
24011-WA910 |
US $741.98 |
||
|
24078
|
24078
24011-WA911 Harness Assy-Egi0405--01 ~ ; W.MCVT |
24011-WA911 |
US $741.98 |
||
|
24079Q
|
24079Q
24079WF700 Harness Assy-Engine Room Sub0208--01 ~ ; W.QR20DE |
24079WF700 |
US $60.19 |
||
|
24080
|
24080
24080-WA000 Cable Assy-Battery Earth0208--01 ~ ; W.QR20DE |
24080-WA000 |
US $82.22 |
||
|
24080
|
24080
24080-WA210 Cable Assy-Battery Earth0208--01 ~ ; *W.QR20DE |
24080-WA210 |
US $82.22 |
||
|
24217B
|
24217B
24239-WF710 Bracket-Harness Clip0208--01 ~ ; W.QR20DE |
24239-WF710 |
US $11.95 |
||
|
24236P
|
24236P
24346-WA000 Bracket-Connector0208--01 ~ ; W.QR20DE |
24346-WA000 |
US $25.34 |
||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link0208--01 ~ ; W.QR20DE; 100A |
2437079910 |
from US $13.10 |
||
|
24370
|
24370
24370-C9910 Connector Assy-Fusible Link0208--01 ~ ; W.QR20DE; 30A |
24370-C9910 |
US $13.10 |
||
|
24370
|
24370
24370-C9920 Connector Assy-Fusible Link0208--01 ~ ; W.QR20DE; 40A |
24370-C9920 |
US $13.10 |
||
|
24370
|
24370
24370C9980 Connector Assy-Fusible Link0208--01 ~ ; W.QR20DE; 80A |
24370C9980 |
from US $14.29 |
||
|
24382R
|
24382R
24382-WA900 Cover-Fusible Link Holder0208--01 ~ ; W.MCVT |
24382-WA900 |
US $15.84 |
||
|
24382R
|
24382R
24382-WA010 Cover-Fusible Link Holder0208--01 ~ ; W.QR20DE |
24382-WA010 |
US $15.70 |
||
|
24382RA
|
24382RA
24382-WA010 Cover-Fusible Link Holder0208--01 ~ ; W.QR20DE |
24382-WA010 |
US $15.70 |
||
|
24382V
|
24382V
24382-WA000 Cover-Relay Box0208--01 ~ ; W.QR20DE |
24382-WA000 |
US $27.07 |
||
|
24382W
|
24382W
24382WA920 Cover-Relay Box0208--01 ~ ; W.QR20DE |
24382WA920 |
US $19.01 |
||
|
24383P
|
24383P
24383-VB060 Housing-Relay Box0208--01 ~ ; W.QR20DE |
24383-VB060 |
US $12.96 |
||
|
24388PA
|
24388PA
24388-WA000 Bracket-Relay Box0208--01 ~ ; W.QR20DE |
24388-WA000 |
US $12.24 |
||
|
25411
|
25411
24380VE700 Holder-Fusible Link0208--01 ~ ; W.QR20DE |
24380VE700 |
US $40.32 |
