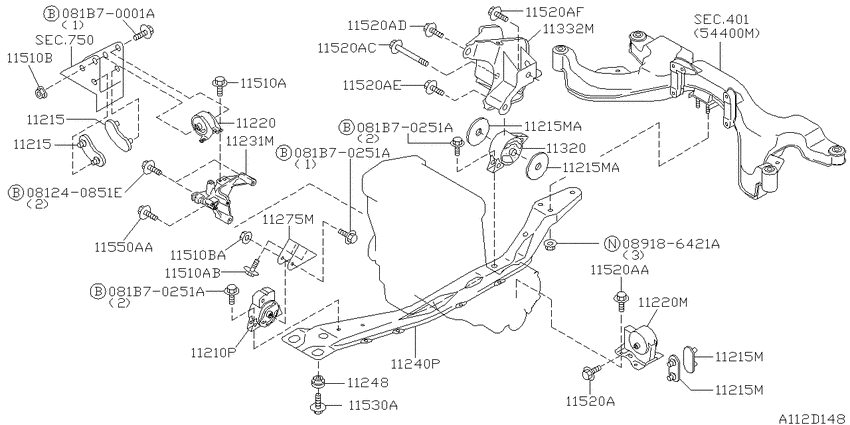

Engine & transmission mounting (1998-08-01 ~ 1999-10-01; CD20ET) Diagram Nissan AVENIR
- Year
- 1998 - 2000
- Sales region
- Japan
- Engine
- CD20ET
- drive
- 2WD
- transmission
- AT.F4
- grade
- SALUT/J
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240851E
|
081240851E
08124-0851E
Bolt-hexagon
|
08124-0851E |
— | ||
|
081B70001A
|
081B70001A
081B7-0001A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081B7-0001A |
— | ||
|
081B70251A
|
081B70251A
081B70251A BOLTFLANGE |
081B70251A |
US $0.43 |
||
|
081B70251A
|
081B70251A
081B70251A BOLTFLANGE |
081B70251A |
US $0.43 |
||
|
081B70251A
|
081B70251A
081B70251A BOLTFLANGE |
081B70251A |
US $0.43 |
||
|
089186421A
|
089186421A
089186421A NUTSLOCK |
089186421A |
US $2.21 |
||
|
11210P
|
11210P
11270-WA103 Insulator Assy-Engine Mounting, Front Rh9808--01 ~ 0005--01; CD20ET |
11270-WA103 |
US $79.20 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9808--01 ~ 0005--01; CD20ET |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
1121550A00 |
US $11.38 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9808--01 ~ 0005--01; CD20ET |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
1121550A00 |
US $11.38 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
1121550A00 |
US $11.38 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
1121550A00 |
US $11.38 |
||
|
11215MA
|
11215MA
1121550A00 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
1121550A00 |
US $11.38 |
||
|
11215MA
|
11215MA
1121550A00 Stopper-Engine Mounting9808--01 ~ 0005--01; CD20ET |
1121550A00 |
US $11.38 |
||
|
11220
|
11220
11210-WA100 Insulator-Engine Mounting, Front9808--01 ~ 0005--01; CD20ET |
11210-WA100 |
US $221.76 |
||
|
11220
|
11220
11220-WA100 Insulator Assy-Engine Mounting, Front Lh9808--01 ~ 0005--01; CD20ET |
11220-WA100 |
US $94.75 |
||
|
11220M
|
11220M
11220-WA100 Insulator Assy-Engine Mounting, Front Lh9808--01 ~ 0005--01; CD20ET |
11220-WA100 |
US $94.75 |
||
|
11231M
|
11231M
11231-82N02 Bracket-Engine Mounting9808--01 ~ 0005--01; CD20ET |
11231-82N02 |
US $180 |
||
|
11240P
|
11240P
112405V000 Member Assy-Engine Mounting9808--01 ~ 0005--01; CD20ET |
112405V000 |
US $201.60 |
||
|
11248
|
11248
112480E002 PAD-ENGINE MOUNTING MEMBER9808--01 ~ 0005--01; CD20ET |
112480E002 |
from US $5.29 |
||
|
11275M
|
11275M
11274-WA100 Bracket-Engine Mounting Block, Front9808--01 ~ 0005--01; CD20ET |
11274-WA100 |
US $40.75 |
||
|
11320
|
11320
11320WA103 Insulator-Engine Mounting, Rear9808--01 ~ 0005--01; CD20ET |
11320WA103 |
US $94.75 |
||
|
11332M
|
11332M
11332-0E401 Bracket-Engine Mounting, Rear9808--01 ~ 0005--01; CD20ET |
11332-0E401 |
US $96.91 |
||
|
11510A
|
11510A
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11510A
|
11510A
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J207 Bolt9910--01 ~ 0005--01; CD20ET |
11298-2J207 |
US $3.46 |
||
|
11510AB
|
11510AB
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11510B
|
11510B
0122500082 NUT9808--01 ~ 0005--01; CD20ET |
0122500082 |
from US $0.61 |
||
|
11510B
|
11510B
0122500082 NUT9808--01 ~ 0005--01; CD20ET |
0122500082 |
from US $0.61 |
||
|
11510BA
|
11510BA
0122500082 NUT9808--01 ~ 0005--01; CD20ET |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
11298-5V102 Bolt9808--01 ~ 0005--01; CD20ET |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11520A
|
11520A
11298-2J201 Bolt9808--01 ~ 0005--01; CD20ET |
11298-2J201 |
US $3.46 |
||
|
11520A
|
11520A
01125-01731 BOLT9808--01 ~ 0005--01; CD20ET |
01125-01731 |
US $4.03 |
||
|
11520A
|
11520A
01125-02101 BOLT9808--01 ~ 0005--01; CD20ET |
01125-02101 |
US $3.46 |
||
|
11520A
|
11520A
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11520AA
|
11520AA
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-2J201 Bolt9808--01 ~ 0005--01; CD20ET |
11298-2J201 |
US $3.46 |
||
|
11520AD
|
11520AD
01125-01731 BOLT9808--01 ~ 0005--01; CD20ET |
01125-01731 |
US $4.03 |
||
|
11520AE
|
11520AE
01125-02101 BOLT9808--01 ~ 0005--01; CD20ET |
01125-02101 |
US $3.46 |
||
|
11520AF
|
11520AF
0112503021 BOLT9808--01 ~ 0005--01; CD20ET |
0112503021 |
US $3.46 |
||
|
11530A
|
11530A
1129840U01 Bolt9808--01 ~ 0005--01; CD20ET |
1129840U01 |
from US $1.76 |
||
|
11550AA
|
11550AA
01121-04771 BOLT9808--01 ~ 0005--01; CD20ET |
01121-04771 |
US $1.73 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
