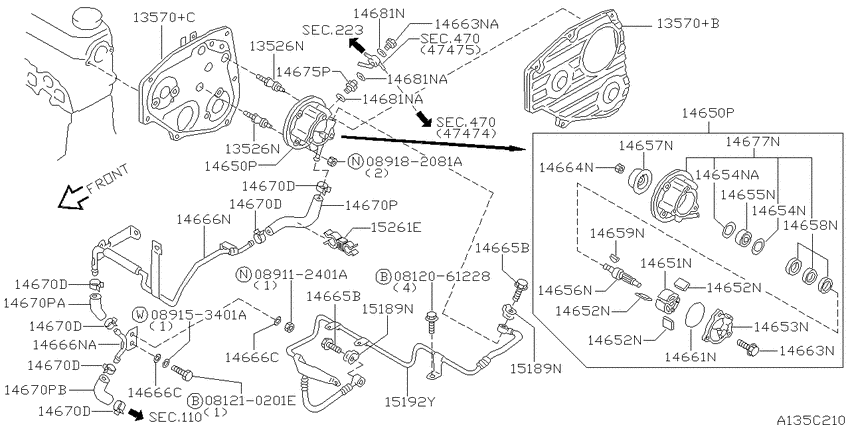

Front cover & fitting (1998-08-01 ~ 2000-05-01; バキューム ポンプ; CD20ET) Diagram Nissan AVENIR
- Year
- 1998 - 2000
- Sales region
- Japan
- Engine
- CD20ET
- drive
- 2WD
- transmission
- AT.F4
- grade
- SALUT/J
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
from US $2.21 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
13526N
|
13526N
13526-3C901 Stud9808--01 ~ 0005--01; CD20ET |
13526-3C901 |
US $14.40 |
||
|
13526N
|
13526N
13526-3C901 Stud9808--01 ~ 0005--01; CD20ET |
13526-3C901 |
US $14.40 |
||
|
13570+B
|
13570+B
13564-2J600 Cover-Belt, Back9808--01 ~ 0005--01; CD20ET |
13564-2J600 |
US $103.39 |
||
|
13570+C
|
13570+C
13570-WA105 Cover-Belt, Back9808--01 ~ 0005--01; CD20ET |
13570-WA105 |
US $103.97 |
||
|
14650P
|
14650P
14650-2J601 Pump Assy-Vacuum9808--01 ~ 0005--01; CD20ET |
14650-2J601 |
US $941.64 |
||
|
14650P
|
14650P
14650-2J601 Pump Assy-Vacuum9808--01 ~ 0005--01; CD20ET |
14650-2J601 |
US $941.64 |
||
|
14651N
|
14651N
14651-2J600 Rotor9808--01 ~ 9910--01; CD20ET |
14651-2J600 |
US $345.50 |
||
|
14652N
|
14652N
14652-2J600 Vane9808--01 ~ 0005--01; CD20ET |
14652-2J600 |
US $43.06 |
||
|
14652N
|
14652N
14652-2J600 Vane9808--01 ~ 0005--01; CD20ET |
14652-2J600 |
US $43.06 |
||
|
14652N
|
14652N
14652-2J600 Vane9808--01 ~ 0005--01; CD20ET |
14652-2J600 |
US $43.06 |
||
|
14653N
|
14653N
14653-2J601 Cover Assy-Side9808--01 ~ 0005--01; CD20ET |
14653-2J601 |
US $140.83 |
||
|
14654N
|
14654N
14654-2J601 Ring-Snap9808--01 ~ 0005--01; CD20ET |
14654-2J601 |
US $6.05 |
||
|
14654N
|
14654N
14654-2J600 Ring-Snap9808--01 ~ 0005--01; CD20ET |
14654-2J600 |
US $6.05 |
||
|
14654NA
|
14654NA
14654-2J600 Ring-Snap9808--01 ~ 0005--01; CD20ET |
14654-2J600 |
US $6.05 |
||
|
14655N
|
14655N
14655-2J600 Bearing-Ball9808--01 ~ 0005--01; CD20ET |
14655-2J600 |
US $33.55 |
||
|
14656N
|
14656N
14656-2J600 Shaft9808--01 ~ 0005--01; CD20ET |
14656-2J600 |
US $50.98 |
||
|
14657N
|
14657N
14657-2J600 Pulley9808--01 ~ 0005--01; CD20ET |
14657-2J600 |
US $75.31 |
||
|
14658N
|
14658N
14658-2J601 Seal-Oil9808--01 ~ 0005--01; CD20ET |
14658-2J601 |
US $94.32 |
||
|
14659N
|
14659N
14659-2J600 Key9808--01 ~ 0005--01; CD20ET |
14659-2J600 |
US $25.63 |
||
|
14661N
|
14661N
14661-2J600 Seal-O Ring9808--01 ~ 0005--01; CD20ET |
14661-2J600 |
US $10.22 |
||
|
14663N
|
14663N
14663-2J602 Bolt9808--01 ~ 0005--01; CD20ET |
14663-2J602 |
US $21.46 |
||
|
14663N
|
14663N
14663-2J601 Bolt9808--01 ~ 0005--01; CD20ET |
14663-2J601 |
US $10.37 |
||
|
14663NA
|
14663NA
14663-2J601 Bolt9808--01 ~ 0005--01; CD20ET |
14663-2J601 |
US $10.37 |
||
|
14664N
|
14664N
14664-2J600 Nut9808--01 ~ 0005--01; CD20ET |
14664-2J600 |
US $10.37 |
||
|
14665B
|
14665B
16432-22J00 Bolt-Eye9808--01 ~ 0005--01; CD20ET |
16432-22J00 |
US $6.19 |
||
| replacement | |||||
|
14665B
|
14665B
1643222J0A
BOLTEYE
9808--01 ~ 0005--01; CD20ET |
1643222J0A |
— | ||
|
14665B
|
14665B
16432-22J00 Bolt-Eye9808--01 ~ 0005--01; CD20ET |
16432-22J00 |
US $6.19 |
||
| replacement | |||||
|
14665B
|
14665B
1643222J0A
BOLTEYE
9808--01 ~ 0005--01; CD20ET |
1643222J0A |
— | ||
|
14666C
|
14666C
01311-01091 WASHER-PLAIN9808--01 ~ 0005--01; CD20ET |
01311-01091 |
US $1.93 |
||
|
14666C
|
14666C
01311-01091 WASHER-PLAIN9808--01 ~ 0005--01; CD20ET |
01311-01091 |
US $1.93 |
||
|
14666N
|
14666N
14666-98N01 Tube Assy-Oil9808--01 ~ 0005--01; CD20ET |
14666-98N01 |
US $93.89 |
||
|
14666N
|
14666N
14666-98N10 Tube Assy-Oil9808--01 ~ 0005--01; CD20ET |
14666-98N10 |
US $20.59 |
||
|
14666NA
|
14666NA
14666-98N10 Tube Assy-Oil9808--01 ~ 0005--01; CD20ET |
14666-98N10 |
US $20.59 |
||
|
14670D
|
14670D
0155800171 CLAMP-HOSE9808--01 ~ 0005--01; CD20ET |
0155800171 |
US $1.73 |
||
|
14670D
|
14670D
0155800171 CLAMP-HOSE9808--01 ~ 0005--01; CD20ET |
0155800171 |
US $1.73 |
||
|
14670D
|
14670D
0155800171 CLAMP-HOSE9808--01 ~ 0005--01; CD20ET |
0155800171 |
US $1.73 |
||
|
14670D
|
14670D
0155800171 CLAMP-HOSE9808--01 ~ 0005--01; CD20ET |
0155800171 |
US $1.73 |
||
|
14670D
|
14670D
0155800171 CLAMP-HOSE9808--01 ~ 0005--01; CD20ET |
0155800171 |
US $1.73 |
||
|
14670D
|
14670D
0155800171 CLAMP-HOSE9808--01 ~ 0005--01; CD20ET |
0155800171 |
US $1.73 |
||
|
14670P
|
14670P
14670-98N01 Hose-Oil Return9808--01 ~ 0005--01; CD20ET |
14670-98N01 |
US $9.79 |
||
|
14670P
|
14670P
14670-98N05 Hose-Oil Return9808--01 ~ 0005--01; CD20ET |
14670-98N05 |
US $7.20 |
||
|
14670P
|
14670P
14670-2J617 Hose-Oil Return9808--01 ~ 0005--01; CD20ET |
14670-2J617 |
US $34.13 |
||
|
14670PA
|
14670PA
14670-98N05 Hose-Oil Return9808--01 ~ 0005--01; CD20ET |
14670-98N05 |
US $7.20 |
||
|
14670PB
|
14670PB
14670-2J617 Hose-Oil Return9808--01 ~ 0005--01; CD20ET |
14670-2J617 |
US $34.13 |
||
|
14675P
|
14675P
14675-2J600 Valve9808--01 ~ 0005--01; CD20ET |
14675-2J600 |
US $30.96 |
||
|
14677N
|
14677N
14677-2J601 Housing Assy9808--01 ~ 0005--01; CD20ET |
14677-2J601 |
US $273.60 |
||
|
14681N
|
14681N
146812J600 Packing9808--01 ~ 0005--01; CD20ET |
146812J600 |
US $1.44 |
||
|
14681N
|
14681N
146812J601 Packing9808--01 ~ 0005--01; CD20ET |
146812J601 |
US $1.44 |
||
|
14681NA
|
14681NA
146812J601 Packing9808--01 ~ 0005--01; CD20ET |
146812J601 |
US $1.44 |
||
|
14681NA
|
14681NA
146812J601 Packing9808--01 ~ 0005--01; CD20ET |
146812J601 |
US $1.44 |
||
|
15189N
|
15189N
1518913C00 Gasket-Eye Bolt9808--01 ~ 0005--01; CD20ET |
1518913C00 |
US $4.18 |
||
|
15189N
|
15189N
1518913C00 Gasket-Eye Bolt9808--01 ~ 0005--01; CD20ET |
1518913C00 |
US $4.18 |
||
|
15192Y
|
15192Y
14665-98N00 Tube Assy-Oil9808--01 ~ 0005--01; CD20ET |
14665-98N00 |
US $119.38 |
||
|
15261E
|
15261E
24220-98N10 Clamp9808--01 ~ 0005--01; CD20ET |
24220-98N10 |
US $6.34 |
||
|
223
|
Vacuum piping
223
|
||||
|
470
|
Brake servo & servo control
470
|
||||
|
470
|
Brake servo & servo control
470
|
||||
