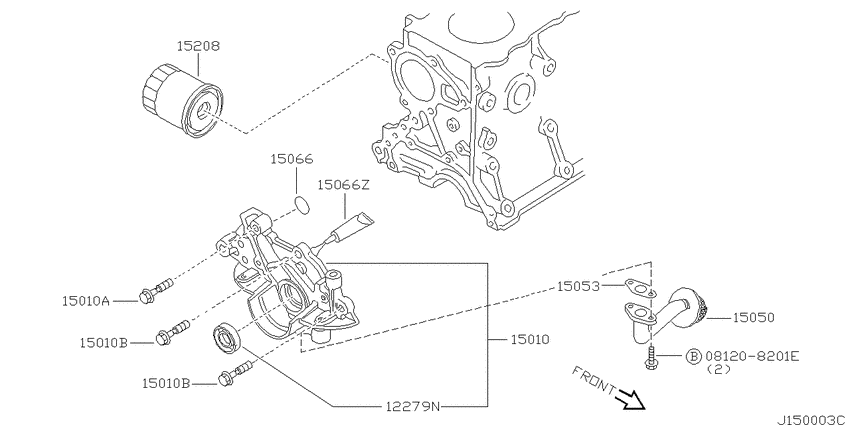

Lubricating system (1999-10-01 ~ 2000-05-01; CD20ET) Diagram Nissan AVENIR
- Year
- 1998 - 2000
- Sales region
- Japan
- Engine
- CD20ET
- drive
- 2WD
- transmission
- AT.F4
- grade
- SALUT/J
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
12279N
|
12279N
13510V7200 Seal-Oil, Crankshaft Front9808--01 ~ 0001--01; CD20ET |
13510V7200 |
from US $9.82 |
||
|
12279N
|
12279N
13510-V7201 Seal-Oil, Crankshaft Front0001--01 ~ 0005--01; CD20ET |
13510-V7201 |
US $6.77 |
||
| replacement | |||||
|
12279N
|
12279N
1351010Y12 Seal-Oil, Crankshaft Front0001--01 ~ 0005--01; CD20ET |
1351010Y12 |
from US $8.38 |
||
|
15010
|
15010
15010-2J600 Pump Assy-Oil9808--01 ~ 0001--01; CD20ET |
15010-2J600 |
US $213.12 |
||
|
15010
|
15010
15010-2J601 Pump Assy-Oil0001--01 ~ 0005--01; CD20ET |
15010-2J601 |
US $197.28 |
||
|
15010
|
15010
15060-D0102
Bolt
9808--01 ~ 0005--01; CD20ET |
15060-D0102 |
— | ||
|
15010
|
15010
13512-D0102 Bolt-Oil Pump9808--01 ~ 0005--01; CD20ET |
13512-D0102 |
US $3.06 |
||
|
15010A
|
15010A
15060-D0102
Bolt
9808--01 ~ 0005--01; CD20ET |
15060-D0102 |
— | ||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9808--01 ~ 0005--01; CD20ET |
13512-D0102 |
US $3.06 |
||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9808--01 ~ 0005--01; CD20ET |
13512-D0102 |
US $3.06 |
||
|
15050
|
15050
15050-57J01 Strainer Assy-Oil9808--01 ~ 0005--01; CD20ET |
15050-57J01 |
US $47.81 |
||
|
15053
|
15053
150531E400 Gasket-Oil Strainer9808--01 ~ 0005--01; CD20ET |
150531E400 |
from US $1.67 |
||
|
15066
|
15066
15066-77A00
Seal-O Ring
9808--01 ~ 0005--01; CD20ET |
15066-77A00 |
— | ||
| replacement | |||||
|
15066
|
15066
150664J600 Seal-O Ring9808--01 ~ 0005--01; CD20ET |
150664J600 |
US $6.51 |
||
|
15066
|
15066
KA76015000
Gasket-Liquid
9808--01 ~ 0005--01; CD20ET; [K504] |
KA76015000 |
— | ||
|
15066Z
|
15066Z
KA76015000
Gasket-Liquid
9808--01 ~ 0005--01; CD20ET; [K504] |
KA76015000 |
— | ||
|
15208
|
15208
AY100NS011
Filter Assy-Oil
9808--01 ~ 0005--01; CD20ET |
AY100NS011 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS012 Filter Assy-Oil9808--01 ~ 0005--01; CD20ET |
AY100NS012 |
US $32.38 |
||
