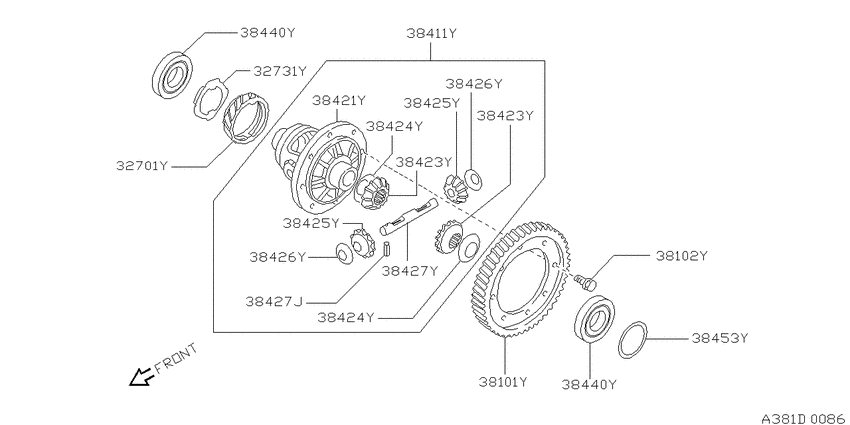

Front final drive (1998-08-01 ~ 2000-05-01; QG18DE.MT.F5) Diagram Nissan AVENIR
- Year
- 1998 - 2000
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- MT.F5
- grade
- SALUT/J
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer9808--01 ~ 0005--01; QG18DE.MT.F5 |
32701-D2100 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear9808--01 ~ 0005--01; QG18DE.MT.F5 |
38431-D2100 |
US $4.75 |
||
|
38101Y
|
38101Y
38101-6J076 Gear-Final Drive9808--01 ~ 0005--01; QG18DE.MT.F5 |
38101-6J076 |
US $167.04 |
||
|
38102Y
|
38102Y
38102-50J00 Bolt-Drive Gear9808--01 ~ 0005--01; QG18DE.MT.F5 |
38102-50J00 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-50J03 Case Compl-Differential9808--01 ~ 0005--01; QG18DE.MT.F5 |
38411-50J03 |
US $938.81 |
||
|
38421Y
|
38421Y
38421-50J00 Case-Differential9808--01 ~ 0005--01; QG18DE.MT.F5 |
38421-50J00 |
US $448.87 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9808--01 ~ 0005--01; QG18DE.MT.F5 |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9808--01 ~ 0005--01; QG18DE.MT.F5 |
38423-31X02 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9808--01 ~ 0005--01; QG18DE.MT.F5 |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9808--01 ~ 0005--01; QG18DE.MT.F5 |
38425-31X07 |
US $64.22 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9808--01 ~ 0005--01; QG18DE.MT.F5 |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9808--01 ~ 0005--01; QG18DE.MT.F5 |
38426-31X02 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9808--01 ~ 0005--01; QG18DE.MT.F5 |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-50J01 Shaft-Pinion Mate9808--01 ~ 0005--01; QG18DE.MT.F5 |
38427-50J01 |
US $76.46 |
||
|
38440Y
|
38440Y
38440-6J001 Bearing-Differential Side9808--01 ~ 0005--01; QG18DE.MT.F5 |
38440-6J001 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-6J001 Bearing-Differential Side9808--01 ~ 0005--01; QG18DE.MT.F5 |
38440-6J001 |
US $35.14 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.44 |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.48 |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8002 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.52 |
38454-M8002 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.56 |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.60 |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.64 |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.68 |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.72 |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.76 |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.80 |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.84 |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing9808--01 ~ 9910--01; QG18DE.MT.F5; ｾﾝﾀｸ T=0.88 |
38454-M8011 |
US $6.34 |
