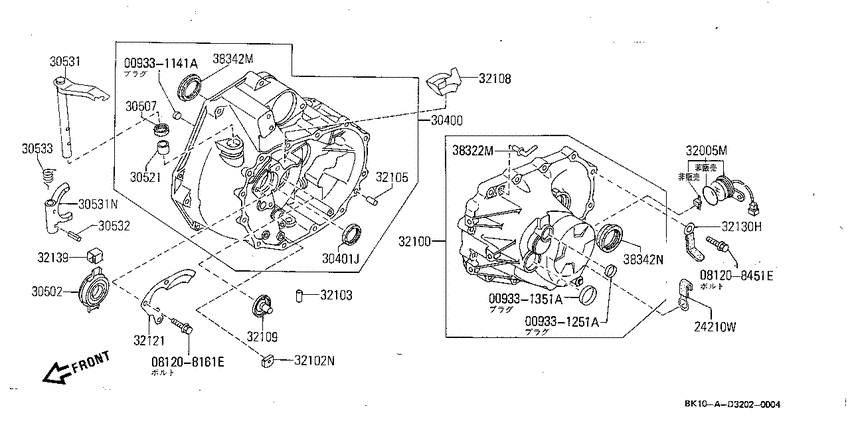

Transmission case (1987-01-01 ~ ; MA10S.5F; RS5F41A) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- F5
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331141A
|
009331141A
00933-1141A Plug-Welch |
00933-1141A |
US $2.21 |
||
|
009331251A
|
009331251A
00933-1251A
Plug-Welch
|
00933-1251A |
— | ||
| replacement | |||||
|
009331251A
|
009331251A
11021-N6800 Plug-Welch |
11021-N6800 |
from US $0.76 |
||
|
009331351A
|
009331351A
009331351A Plug-Welch |
009331351A |
US $3.06 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
24210W
|
24210W
32108-01B00 Clip8701--01 ~ ; MT |
32108-01B00 |
US $4.46 |
||
|
30400
|
30400
30400-15B00 Housing Assy-Clutch8701--01 ~ ; MT; |
30400-15B00 |
US $611.71 |
||
|
30401J
|
30401J
32113-01B00 Seal-Oil, Input8701--01 ~ ; MT |
32113-01B00 |
US $4.57 |
||
|
30502
|
30502
3050201B00 Bearing-Clutch Release8701--01 ~ ; MT; [B106] |
3050201B00 |
US $39.02 |
||
|
30507
|
30507
30507M8001 Seal-Dust, Clutch Housing8701--01 ~ ; MT |
30507M8001 |
from US $4.20 |
||
|
30521
|
30521
30521-M8001 Bush-Clutch Control8701--01 ~ ; MT |
30521-M8001 |
US $10.80 |
||
|
30531
|
30531
30520-01B01 Lever-Withdrawal, Clutch8701--01 ~ 8809--01; MT |
30520-01B01 |
US $52.27 |
||
|
30531
|
30531
30520-01B02 Lever-Withdrawal, Clutch8809--01 ~ ; MT |
30520-01B02 |
US $56.88 |
||
|
30531
|
30531
30538-01B00 Lever Assy-Clutch8701--01 ~ ; MT |
30538-01B00 |
US $53.14 |
||
|
30531N
|
30531N
30538-01B00 Lever Assy-Clutch8701--01 ~ ; MT |
30538-01B00 |
US $53.14 |
||
|
30532
|
30532
32917M3000 Pin-Withdrawal Lever8701--01 ~ ; MT |
32917M3000 |
from US $1 |
||
|
30533
|
30533
30525-01B00 Spring-Return8701--01 ~ ; MT |
30525-01B00 |
US $4.46 |
||
|
32005M
|
32005M
32005-01B05 Switch Assy-Position8701--01 ~ ; MT |
32005-01B05 |
US $43.34 |
||
|
32100
|
32100
32100-05B01 Case Assy-Transmission8701--01 ~ ; MT |
32100-05B01 |
US $387.98 |
||
|
32102N
|
32102N
32105-U8401 Magnet-Transaxle8701--01 ~ ; MT |
32105-U8401 |
US $1.73 |
||
|
32103
|
32103
009312081A Plug-Drain8701--01 ~ ; MT |
009312081A |
US $3.06 |
||
|
32105
|
32105
32105-C6900 Pin8701--01 ~ ; MT |
32105-C6900 |
US $4.18 |
||
|
32108
|
32108
32108-01B10 Pocket-Oil, Clutch Housing8701--01 ~ ; MT |
32108-01B10 |
US $2.45 |
||
|
32109
|
32109
3210901B00 Channel-Oil, Main Shaft Front8701--01 ~ ; MT |
3210901B00 |
US $1.73 |
||
|
32121
|
32121
3212101B01 Retainer-Bearing, Input Shaft8701--01 ~ ; MT |
3212101B01 |
US $14.98 |
||
|
32130H
|
32130H
24210-89963 Clip-Wiring Harness8701--01 ~ ; MT |
24210-89963 |
US $3.46 |
||
|
32139
|
32139
3050901B00 Retainer-Bearing8701--01 ~ ; MT |
3050901B00 |
from US $1.74 |
||
|
38322M
|
38322M
38322-50A01 Breather-Transmission Case8701--01 ~ ; MT |
38322-50A01 |
US $16.27 |
||
|
38342M
|
38342M
38342-01B00 Seal-Oil, Differential Clutch Housing8701--01 ~ ; MT |
38342-01B00 |
US $5.48 |
||
|
38342N
|
38342N
38342-01B00 Seal-Oil, Differential Clutch Housing8701--01 ~ ; MT |
38342-01B00 |
US $5.48 |
||
