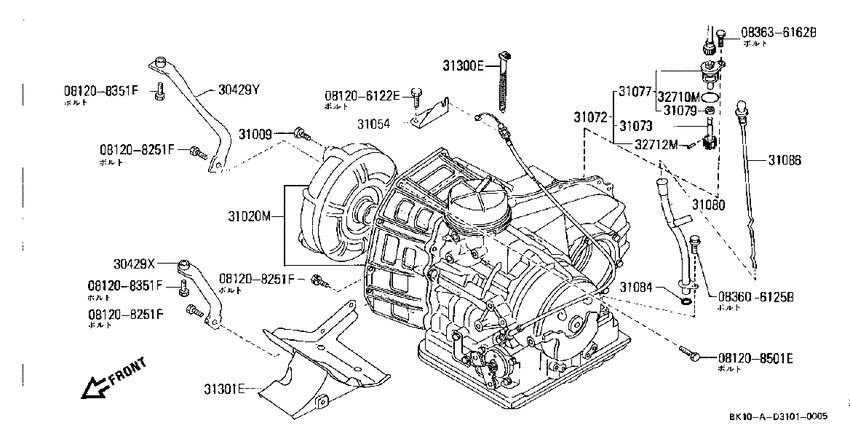

AT transmission & transaxle assembly (1987-01-01 ~ ; RN3F01A) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206122E
|
081206122E
081206122E
Bolt-hexagon
|
081206122E |
— | ||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
083606125B
|
083606125B
083606125B Screw |
083606125B |
US $1.73 |
||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
30429X
|
30429X
31087-01B00 Gusset-Transmission To Engine8701--01 ~ ; S.AT; ﾌﾛﾝﾄ ﾖｳ |
31087-01B00 |
US $31.68 |
||
|
30429Y
|
30429Y
31075-01B00 Gusset-Transmission To Engine8701--01 ~ ; S.AT; ﾘｱ ﾖｳ |
31075-01B00 |
US $21.17 |
||
|
31009
|
31009
31009-01X00 Bolt-Self Lock8701--01 ~ ; S.AT |
31009-01X00 |
US $4.18 |
||
|
31020M
|
31020M
31020-05X04 Transaxle Assy-Automatic8701--01 ~ ; S.AT; RN3F01A |
31020-05X04 |
US $3,682 |
||
|
31054
|
31054
31054-01B01 Bracket-Auto Transmission Throttle Wire8701--01 ~ ; S.AT |
31054-01B01 |
US $6.91 |
||
|
31072
|
31072
32702-83M18 Pinion Assy-Speedometer8701--01 ~ ; S.AT; 38T |
32702-83M18 |
US $27.65 |
||
|
31073
|
31073
32703M8038 Pinion-Speedometer8701--01 ~ ; S.AT; 38T |
32703M8038 |
US $9.22 |
||
|
31077
|
31077
32707-83M01 Sleeve-Speedometer Pinion8701--01 ~ ; S.AT |
32707-83M01 |
US $15.70 |
||
|
31079
|
31079
3270958S00 Seal-Oil, Speedometer Pinion8701--01 ~ ; S.AT |
3270958S00 |
from US $0.91 |
||
|
31080
|
31080
31080-01B03 Pipe Assy-Oil Charging8701--01 ~ ; S.AT |
31080-01B03 |
US $56.30 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8701--01 ~ ; S.AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-01B00 Gauge Assy-Oil Level8701--01 ~ ; S.AT |
31086-01B00 |
US $28.08 |
||
|
31300E
|
31300E
01552-00481
CLAMP
8701--01 ~ ; S.AT |
01552-00481 |
— | ||
|
31301E
|
31301E
31095-01B10 Guard-Converter Housing8701--01 ~ ; S.AT |
31095-01B10 |
US $55.58 |
||
|
32710M
|
32710M
32710M8000 Seal-O Ring, Speedometer Pinion8701--01 ~ ; S.AT; |
32710M8000 |
US $2.78 |
||
|
32712M
|
32712M
3287314600 Pin-Retainer, Speedometer Pinion8701--01 ~ ; S.AT |
3287314600 |
US $2.21 |
