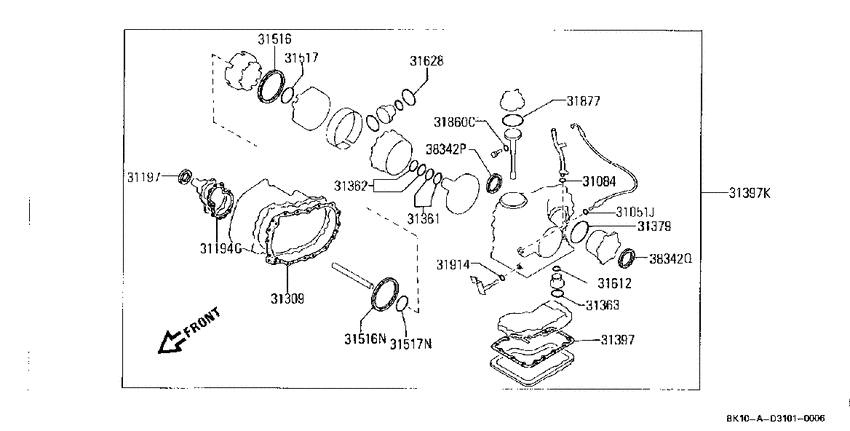

AT transmission & transaxle assembly (1987-01-01 ~ ; ガスケット&シールキット; RN3F01A) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31051J
|
31051J
31052-01X00
Seal-O Ring
8701--01 ~ ; AT |
31052-01X00 |
— | ||
| replacement | |||||
|
31051J
|
31051J
C105201X00
ｼ-ﾙ,ｵ- ﾘﾝｸﾞ
8701--01 ~ ; AT |
C105201X00 |
— | ||
|
31084
|
31084
31084M7500 Seal-O Ring8701--01 ~ ; S.AT |
31084M7500 |
US $1.15 |
||
|
31194G
|
31194G
31198-01X03 Gasket-Front Cover8701--01 ~ ; AT |
31198-01X03 |
US $8.06 |
||
| replacement | |||||
|
31194G
|
31194G
31198-01X10
Gasket-front cover
8701--01 ~ ; AT |
31198-01X10 |
— | ||
|
31197
|
31197
31197-01X01 Seal-Oil, Front Cover8701--01 ~ ; AT |
31197-01X01 |
US $15.12 |
||
| replacement | |||||
|
31197
|
31197
C1197-01X01 Seal-oil,front cover8701--01 ~ ; AT |
C1197-01X01 |
US $22.59 |
||
|
31309
|
31309
31309-01X02
Gasket-Converter Housing
8701--01 ~ ; AT |
31309-01X02 |
— | ||
|
31361
|
31361
31361-01X00 Ring-Seal8701--01 ~ ; AT |
31361-01X00 |
US $10.80 |
||
|
31362
|
31362
31362-01X00 Ring-Seal8701--01 ~ ; AT |
31362-01X00 |
US $10.80 |
||
|
31363
|
31363
31672-01X00 Seal-Lathe Cut Ring8701--01 ~ ; AT |
31672-01X00 |
US $6.91 |
||
| replacement | |||||
|
31363
|
31363
C1672-01X00
Seal-lathe cut ring
8701--01 ~ ; AT |
C1672-01X00 |
— | ||
|
31379
|
31379
31379-01X00 Seal-O Ring8701--01 ~ ; AT |
31379-01X00 |
US $11.66 |
||
|
31397
|
31397
31397-01X01
Gasket-Oil Pan
8701--01 ~ ; AT |
31397-01X01 |
— | ||
| replacement | |||||
|
31397
|
31397
3139701X10 Gasket-Oil Pan8701--01 ~ ; AT |
3139701X10 |
US $24.62 |
||
|
31397
|
31397
31397-01X29 Gasket & Seal Kit-Auto Transmission8701--01 ~ ; S.AT |
31397-01X29 |
US $158.40 |
||
| replacement | |||||
|
31397
|
31397
C1397-01X2K
Gasket & seal kit-auto transmission
8701--01 ~ ; S.AT |
C1397-01X2K |
— | ||
|
31397K
|
31397K
31397-01X29 Gasket & Seal Kit-Auto Transmission8701--01 ~ ; S.AT |
31397-01X29 |
US $158.40 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-01X2K
Gasket & seal kit-auto transmission
8701--01 ~ ; S.AT |
C1397-01X2K |
— | ||
|
31516
|
31516
31528-01X01 Seal-Lathe Cut Ring8701--01 ~ ; AT; |
31528-01X01 |
US $11.66 |
||
|
31516
|
31516
31528-01X01 Seal-Lathe Cut Ring8701--01 ~ ; AT; |
31528-01X01 |
US $11.66 |
||
|
31516N
|
31516N
31528-01X01 Seal-Lathe Cut Ring8701--01 ~ ; AT; |
31528-01X01 |
US $11.66 |
||
|
31517
|
31517
31517-01X00 Seal-O Ring8701--01 ~ ; AT |
31517-01X00 |
US $6.91 |
||
|
31517
|
31517
31547-01X00 Seal-O Ring8701--01 ~ ; AT; |
31547-01X00 |
US $7.06 |
||
|
31517N
|
31517N
31547-01X00 Seal-O Ring8701--01 ~ ; AT; |
31547-01X00 |
US $7.06 |
||
|
31612
|
31612
31673-01X01 Seal-Lathe Cut Ring8701--01 ~ ; AT |
31673-01X01 |
US $6.91 |
||
| replacement | |||||
|
31612
|
31612
C1673-01X01
Seal-lathe cut ring
8701--01 ~ ; AT |
C1673-01X01 |
— | ||
|
31628
|
31628
31628-01X00
Seal-O Ring
8701--01 ~ ; AT |
31628-01X00 |
— | ||
|
31860C
|
31860C
31897-01X00 Washer-Seal8701--01 ~ ; AT |
31897-01X00 |
US $1.73 |
||
|
31877
|
31877
3187701X01 Seal-Ring, Governor8701--01 ~ ; AT |
3187701X01 |
US $14.68 |
||
|
31914
|
31914
31914-01X00 Seal-O Ring8701--01 ~ ; AT |
31914-01X00 |
US $2.45 |
||
|
38342P
|
38342P
38342M8001 Seal-Oil, Differential Clutch Housing8701--01 ~ ; AT |
38342M8001 |
from US $5.47 |
||
|
38342Q
|
38342Q
38342M8001 Seal-Oil, Differential Clutch Housing8701--01 ~ ; AT |
38342M8001 |
from US $5.47 |
||
