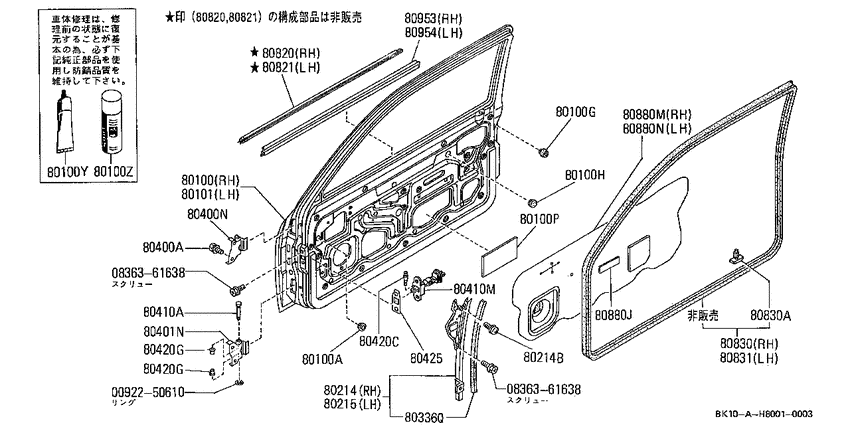

Front door panel (1987-01-01 ~ ; S) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
80100
|
80100
80100-20B00
ﾄﾞｱ,ﾌﾛﾝﾄ rh
8701--01 ~ ; S |
80100-20B00 |
— | ||
|
80100
|
80100
82860-Q3101 Grommet8701--01 ~ ; S |
82860-Q3101 |
US $2.08 |
||
|
80100
|
80100
80872W1011 Bumper Rubber-Door8701--01 ~ ; S |
80872W1011 |
from US $3.32 |
||
|
80100
|
80100
64892W5000 Unit Assy-Divider Tachometer8701--01 ~ ; S |
64892W5000 |
from US $0.96 |
||
|
80100
|
80100
80160-W1801 ｲﾝｼﾕﾚ-ﾀ-8701--01 ~ ; S |
80160-W1801 |
US $10.51 |
||
|
80100
|
80100
KA360-16570
Paint Sealer
8701--01 ~ ; S; [K504] |
KA360-16570 |
— | ||
|
80100
|
80100
KA390-18090
Metal Keep Wax
8701--01 ~ ; S; [K504] |
KA390-18090 |
— | ||
|
80100A
|
80100A
82860-Q3101 Grommet8701--01 ~ ; S |
82860-Q3101 |
US $2.08 |
||
|
80100G
|
80100G
80872W1011 Bumper Rubber-Door8701--01 ~ ; S |
80872W1011 |
from US $3.32 |
||
|
80100H
|
80100H
64892W5000 Unit Assy-Divider Tachometer8701--01 ~ ; S |
64892W5000 |
from US $0.96 |
||
|
80100P
|
80100P
80160-W1801 ｲﾝｼﾕﾚ-ﾀ-8701--01 ~ ; S |
80160-W1801 |
US $10.51 |
||
|
80100Y
|
80100Y
KA360-16570
Paint Sealer
8701--01 ~ ; S; [K504] |
KA360-16570 |
— | ||
|
80100Z
|
80100Z
KA390-18090
Metal Keep Wax
8701--01 ~ ; S; [K504] |
KA390-18090 |
— | ||
|
80101
|
80101
80101-20B00
ﾄﾞｱ,ﾌﾛﾝﾄ lh
8701--01 ~ ; S |
80101-20B00 |
— | ||
|
80214
|
80214
80214-20B00
ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾌﾛﾝﾄ rh
8701--01 ~ ; S; ｸﾞﾗｽ ﾗﾝ ﾗﾊﾞ- ﾂｷ |
80214-20B00 |
— | ||
|
80214
|
80214
01414-00031 ｽｸﾘﾕ-8701--01 ~ ; S |
01414-00031 |
US $1.73 |
||
|
80214B
|
80214B
01414-00031 ｽｸﾘﾕ-8701--01 ~ ; S |
01414-00031 |
US $1.73 |
||
|
80215
|
80215
80215-20B00
ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾌﾛﾝﾄ lh
8701--01 ~ ; S; ｸﾞﾗｽ ﾗﾝ ﾗﾊﾞ- ﾂｷ |
80215-20B00 |
— | ||
|
80336Q
|
80336Q
80331-20B00
ｶﾞﾗｽ ﾗﾝ,ﾌﾛﾝﾄ ﾄﾞｱ ﾛｱ ｻﾂｼﾕ ﾌﾛﾝﾄ
8701--01 ~ ; S; RH & LH |
80331-20B00 |
— | ||
|
80400A
|
80400A
01121-03061 BOLT8701--01 ~ ; S |
01121-03061 |
US $1.73 |
||
|
80400N
|
80400N
80402-41L00 Hinge Assy-Front Door, Upper Lh8701--01 ~ ; S; ﾐｷﾞｼﾀ ﾋﾀﾞﾘｳｴ |
80402-41L00 |
US $14.48 |
||
|
80401N
|
80401N
80422-41L00 Hinge Assy-Front Door, Upper Rh8701--01 ~ ; S; ﾐｷﾞｳｴ ﾋﾀﾞﾘｼﾀ |
80422-41L00 |
US $14.48 |
||
|
80410A
|
80410A
80406-01L02 Pin-Spring8701--01 ~ ; S |
80406-01L02 |
US $4.75 |
||
|
80410M
|
80410M
80430-04B00 ﾘﾝｸ,ﾄﾞｱ ｽﾄﾂﾊﾟ-8701--01 ~ ; S |
80430-04B00 |
US $28.51 |
||
|
80420C
|
80420C
80438-D0101 Pin-Door Stopper8701--01 ~ ; S |
80438-D0101 |
US $4.32 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8701--01 ~ ; S; |
8041001L00 |
from US $3.48 |
||
|
80420G
|
80420G
80410-01L01 Cap-Front Door Hinge8701--01 ~ ; S |
80410-01L01 |
US $4.75 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8701--01 ~ ; S; |
8041001L00 |
from US $3.48 |
||
|
80420G
|
80420G
80410-01L01 Cap-Front Door Hinge8701--01 ~ ; S |
80410-01L01 |
US $4.75 |
||
|
80425
|
80425
80490-20B00
ｼﾑ,ﾄﾞｱ ﾋﾝｼﾞ ﾛｱ
8701--01 ~ ; S |
80490-20B00 |
— | ||
|
80820
|
80820
80822-20B00
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
8701--01 ~ ; S |
80822-20B00 |
— | ||
|
80820
|
80820
80822-20B00
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
8701--01 ~ ; S |
80822-20B00 |
— | ||
|
80821
|
80821
80823-20B00
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
8701--01 ~ ; S |
80823-20B00 |
— | ||
|
80821
|
80821
80823-20B00
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
8701--01 ~ ; S |
80823-20B00 |
— | ||
|
80830
|
80830
8083020B00
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ
8701--01 ~ ; S |
8083020B00 |
— | ||
|
80830
|
80830
80832-S5000
Clip-Weatherstrip
8701--01 ~ ; S |
80832-S5000 |
— | ||
| replacement | |||||
|
80830
|
80830
01553-06821 CLIP-WEATHERSTRIP8701--01 ~ ; S |
01553-06821 |
US $1.11 |
||
|
80830
|
80830
80833-S5000
Clip-Weatherstrip
8701--01 ~ ; S |
80833-S5000 |
— | ||
|
80830A
|
80830A
80832-S5000
Clip-Weatherstrip
8701--01 ~ ; S |
80832-S5000 |
— | ||
| replacement | |||||
|
80830A
|
80830A
01553-06821 CLIP-WEATHERSTRIP8701--01 ~ ; S |
01553-06821 |
US $1.11 |
||
|
80830A
|
80830A
80833-S5000
Clip-Weatherstrip
8701--01 ~ ; S |
80833-S5000 |
— | ||
|
80831
|
80831
8083120B00
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ lh
8701--01 ~ ; S |
8083120B00 |
— | ||
|
80880J
|
80880J
80865-20B00
ｼ-ﾙ,ﾄﾞﾗﾌﾀ-
8701--01 ~ ; S |
80865-20B00 |
— | ||
|
80880M
|
80880M
80860-20B00
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ rh
8701--01 ~ ; S |
80860-20B00 |
— | ||
|
80880N
|
80880N
80861-20B00
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ lh
8701--01 ~ ; S |
80861-20B00 |
— | ||
|
80953
|
80953
80834-20B00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh
8701--01 ~ ; S |
80834-20B00 |
— | ||
|
80954
|
80954
80835-20B00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh
8701--01 ~ ; S |
80835-20B00 |
— | ||
