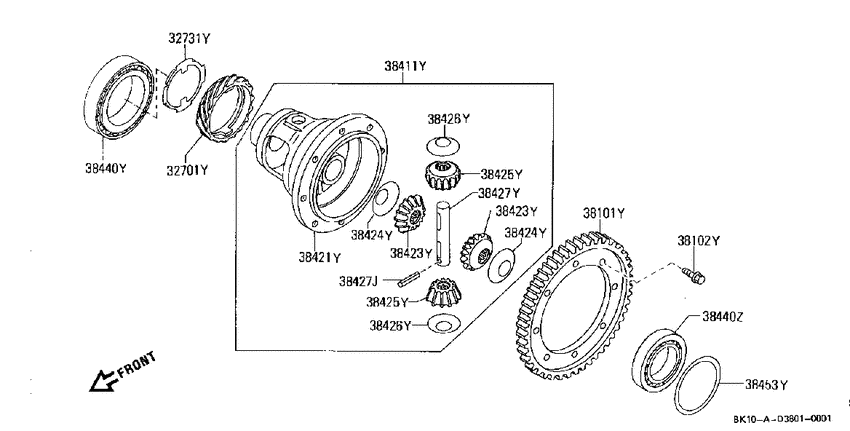

Front final drive (1987-01-01 ~ ; AT) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-01M00 Gear-Drive, Speedometer8701--01 ~ ; AT |
32701-01M00 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-M8003 Stopper-Speedometer Drive Gear8701--01 ~ ; AT |
38431-M8003 |
US $2.88 |
||
|
38101Y
|
38101Y
38101-01X63 Gear-Final Drive8701--01 ~ ; AT |
38101-01X63 |
US $162.72 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear8701--01 ~ ; AT |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-01X18
Case Compl-Differential
8701--01 ~ 8810--01; AT |
38411-01X18 |
— | ||
|
38411Y
|
38411Y
38411-01X62 Case Compl-Differential8810--01 ~ ; AT |
38411-01X62 |
US $927.48 |
||
| replacement | |||||
|
38411Y
|
38411Y
38411-01X66
Case compl-differential
8810--01 ~ ; AT |
38411-01X66 |
— | ||
|
38421Y
|
38421Y
38421-01X12 Case-Differential8701--01 ~ ; AT |
38421-01X12 |
US $564.98 |
||
|
38423Y
|
38423Y
38423-01M00 Gear-Side8701--01 ~ ; AT |
38423-01M00 |
US $98.35 |
||
|
38423Y
|
38423Y
38423-01M00 Gear-Side8701--01 ~ ; AT |
38423-01M00 |
US $98.35 |
||
|
38424Y
|
38424Y
38424-01M00 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.76-0.81 |
38424-01M00 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M01 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.81-0.86 |
38424-01M01 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M02 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.86-0.91 |
38424-01M02 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M03 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.91-0.96 |
38424-01M03 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M10 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.76-0.81 |
38424-01M10 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M11 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.76-0.81 |
38424-01M11 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M12 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.86-0.91 |
38424-01M12 |
US $4.16 |
||
|
38424Y
|
38424Y
38424-01M13 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.91-0.96 |
38424-01M13 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M00 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.76-0.81 |
38424-01M00 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M01 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.81-0.86 |
38424-01M01 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M02 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.86-0.91 |
38424-01M02 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M03 Washer-Thrust, Side Gear8701--01 ~ 8810--01; AT; ｾﾝﾀｸ T=0.91-0.96 |
38424-01M03 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M10 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.76-0.81 |
38424-01M10 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M11 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.76-0.81 |
38424-01M11 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M12 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.86-0.91 |
38424-01M12 |
US $4.16 |
||
|
38424Y
|
38424Y
38424-01M13 Washer-Thrust, Side Gear8810--01 ~ ; AT; ｾﾝﾀｸ T=0.91-0.96 |
38424-01M13 |
US $3.46 |
||
|
38425Y
|
38425Y
38425-01M01 Pinion-Mate8701--01 ~ ; AT |
38425-01M01 |
US $40.90 |
||
|
38425Y
|
38425Y
38425-01M01 Pinion-Mate8701--01 ~ ; AT |
38425-01M01 |
US $40.90 |
||
|
38426Y
|
38426Y
38426-01M01
Washer-Thrust, Pinion Mate
8701--01 ~ ; AT |
38426-01M01 |
— | ||
|
38426Y
|
38426Y
38426-01M01
Washer-Thrust, Pinion Mate
8701--01 ~ ; AT |
38426-01M01 |
— | ||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft8701--01 ~ ; AT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-01X02 Shaft-Pinion Mate8701--01 ~ ; AT |
38427-01X02 |
US $17.14 |
||
|
38440Y
|
38440Y
4021085000 BEARING-INNER,REAR AXLE8701--01 ~ ; AT |
4021085000 |
from US $28.55 |
||
|
38440Z
|
38440Z
38440-01X00 Bearing-Differential Side8701--01 ~ ; AT |
38440-01X00 |
US $104.83 |
||
| replacement | |||||
|
38440Z
|
38440Z
38440-AD301 Bearing-Ring Gear8701--01 ~ ; AT |
38440-AD301 |
US $69.70 |
||
|
38453Y
|
38453Y
38454-01X60 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.44 |
38454-01X60 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X61 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.48 |
38454-01X61 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X62 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.52 |
38454-01X62 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X63 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.56 |
38454-01X63 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X64 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.60 |
38454-01X64 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X65 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.64 |
38454-01X65 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X66 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.68 |
38454-01X66 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X67 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.72 |
38454-01X67 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X68 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.76 |
38454-01X68 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X69 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.80 |
38454-01X69 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X70 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.84 |
38454-01X70 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X71 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.88 |
38454-01X71 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-01X72 Shim-Adjust, Side Bearing8701--01 ~ ; AT; ｾﾝﾀｸ T=0.92 |
38454-01X72 |
US $5.47 |
||
