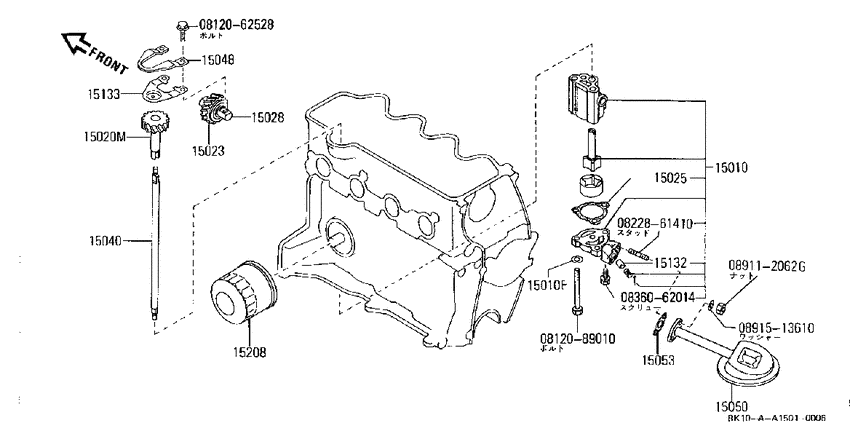

Lubricating system (1987-01-01 ~ ; MA10S) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812089010
|
0812089010
08120-89010
Bolt-hexagon
|
08120-89010 |
— | ||
|
0822861410
|
0822861410
08228-61410
ｽﾀﾂﾄﾞ
|
08228-61410 |
— | ||
|
0836062014
|
0836062014
08360-62014
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-62014 |
— | ||
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.57 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
15010
|
15010
1501001B01 Pump Assy-Oil8701--01 ~ ; MA10S |
1501001B01 |
US $120.10 |
||
|
15010
|
15010
18019-15800 Washer8701--01 ~ ; MA10S |
18019-15800 |
US $1.58 |
||
|
15010E
|
15010E
18019-15800 Washer8701--01 ~ ; MA10S |
18019-15800 |
US $1.58 |
||
|
15020M
|
15020M
1504601B11 Gear Assy-Drive8701--01 ~ ; MA10S |
1504601B11 |
US $25.92 |
||
|
15023
|
15023
15044-01B10 Gear-Idler8701--01 ~ ; MA10S |
15044-01B10 |
US $38.74 |
||
|
15025
|
15025
15025-01B01 Gasket-Oil Pump8701--01 ~ ; MA10S |
15025-01B01 |
US $2.45 |
||
|
15028
|
15028
1504501B00 Shaft-Idler Gear8701--01 ~ ; MA10S |
1504501B00 |
US $6.19 |
||
|
15040
|
15040
15041-01B00 Spindle Assy-Oil Pump Drive8701--01 ~ ; MA10S |
15041-01B00 |
US $18.72 |
||
|
15048
|
15048
15049-01B00 Support-Spindle8701--01 ~ ; MA10S |
15049-01B00 |
US $15.41 |
||
|
15050
|
15050
15050-01B01 Strainer Assy-Oil8701--01 ~ ; MA10S |
15050-01B01 |
US $15.55 |
||
|
15053
|
15053
15053-01M00 Gasket-Oil Strainer8701--01 ~ ; MA10S |
15053-01M00 |
US $1.73 |
||
| replacement | |||||
|
15053
|
15053
1505319B00 Gasket-Oil Strainer8701--01 ~ ; MA10S |
1505319B00 |
from US $2.28 |
||
|
15132
|
15132
15132-01B01 Valve Assy-Oil Regulator8701--01 ~ ; MA10S |
15132-01B01 |
US $10.51 |
||
|
15133
|
15133
15042-01B00 Spring-Oil Regulator8701--01 ~ ; MA10S |
15042-01B00 |
US $2.02 |
||
|
15208
|
15208
AY100NS025 Filter Assy-Oil8701--01 ~ ; MA10S |
AY100NS025 |
US $11.01 |
||
|
15208
|
15208
15213-21001 Stud-Oil Filter8701--01 ~ ; MA10S |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15208
|
15208
15213-W040A Stud-oil filter8701--01 ~ ; MA10S |
15213-W040A |
US $5.81 |
||
