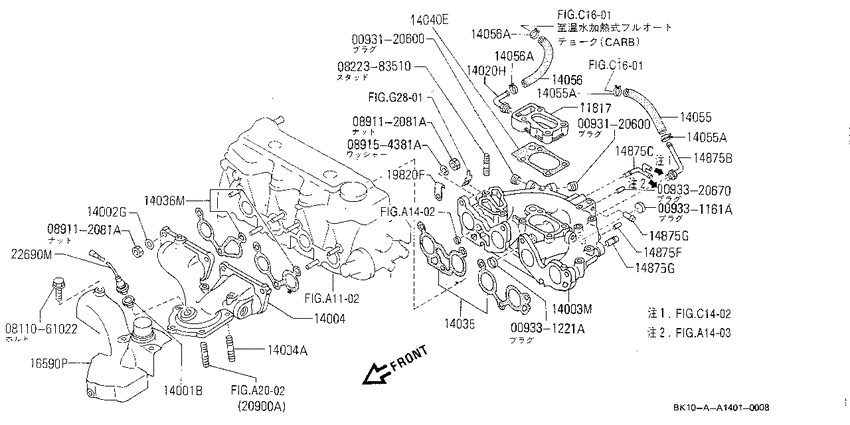

Manifold (1987-01-01 ~ ; MA10S) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093120600
|
0093120600
00931-20600
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
00931-20600 |
— | ||
|
0093120600
|
0093120600
00931-20600
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
00931-20600 |
— | ||
|
009331161A
|
009331161A
009331161A Plug-Welch |
009331161A |
US $0.54 |
||
|
009331221A
|
009331221A
00933-1221A PLUG |
00933-1221A |
from US $0.63 |
||
|
0093320670
|
0093320670
00933-20670
ﾌﾟﾗｸﾞ
|
00933-20670 |
— | ||
|
0811061022
|
0811061022
08110-61022
Bolt-hexagon
|
08110-61022 |
— | ||
|
0822383510
|
0822383510
0822383510
ｽﾀﾂﾄﾞ
|
0822383510 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
11817
|
11817
14006-01B00 Adapter-Ac Valve8701--01 ~ ; MA10S |
14006-01B00 |
US $35.34 |
||
|
14001B
|
14001B
20607P6500 Nut8701--01 ~ ; MA10S |
20607P6500 |
from US $5.51 |
||
|
14002G
|
14002G
36513-09400 Washer-Plain8701--01 ~ ; MA10S |
36513-09400 |
from US $0.07 |
||
|
14003M
|
14003M
14003-03B50 Manifold-Intake8701--01 ~ ; MA10S |
14003-03B50 |
US $382.32 |
||
|
14004
|
14004
14004-03B00
Manifold-Exhaust
8701--01 ~ ; MA10S |
14004-03B00 |
— | ||
|
14004
|
14004
1406401M00 Stud8701--01 ~ ; MA10S |
1406401M00 |
US $4.27 |
||
|
14004A
|
14004A
1406401M00 Stud8701--01 ~ ; MA10S |
1406401M00 |
US $4.27 |
||
|
14020H
|
14020H
01691-00162 CONNECTOR-WATER HOSE8701--01 ~ ; MA10S |
01691-00162 |
US $5.18 |
||
|
14035
|
14035
14035-01B26
Gasket-Manifold
8701--01 ~ ; MA10S |
14035-01B26 |
— | ||
| replacement | |||||
|
14035
|
14035
1403519B25 Gasket-Manifold8701--01 ~ ; MA10S |
1403519B25 |
US $29.40 |
||
|
14036M
|
14036M
1403601B26 Gasket-Exhaust Manifold, A8701--01 ~ ; MA10S |
1403601B26 |
US $65.85 |
||
|
14040E
|
14040E
1617419B01
Gasket-Adapter
8701--01 ~ ; MA10S |
1617419B01 |
— | ||
|
14055
|
14055
14055-01B11 Hose-Water8701--01 ~ ; MA10S |
14055-01B11 |
US $10.37 |
||
|
14055
|
14055
16439-42L00
Clamp-Hose, A
8701--01 ~ ; MA10S |
16439-42L00 |
— | ||
| replacements | |||||
|
14055
|
14055
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
8701--01 ~ ; MA10S |
164394L0A |
— | ||
|
14055
|
14055
1643942L0A Clamp-Hose A8701--01 ~ ; MA10S |
1643942L0A |
from US $4.68 |
||
|
14055A
|
14055A
16439-42L00
Clamp-Hose, A
8701--01 ~ ; MA10S |
16439-42L00 |
— | ||
| replacements | |||||
|
14055A
|
14055A
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
8701--01 ~ ; MA10S |
164394L0A |
— | ||
|
14055A
|
14055A
1643942L0A Clamp-Hose A8701--01 ~ ; MA10S |
1643942L0A |
from US $4.68 |
||
|
14055A
|
14055A
16439-42L00
Clamp-Hose, A
8701--01 ~ ; MA10S |
16439-42L00 |
— | ||
| replacements | |||||
|
14055A
|
14055A
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
8701--01 ~ ; MA10S |
164394L0A |
— | ||
|
14055A
|
14055A
1643942L0A Clamp-Hose A8701--01 ~ ; MA10S |
1643942L0A |
from US $4.68 |
||
|
14056
|
14056
1405503B01 Hose-Water8701--01 ~ ; MA10S |
1405503B01 |
US $17.42 |
||
|
14056
|
14056
16439-01B00 Clamp-Hose8701--01 ~ ; MA10S |
16439-01B00 |
US $5.18 |
||
|
14056A
|
14056A
16439-01B00 Clamp-Hose8701--01 ~ ; MA10S |
16439-01B00 |
US $5.18 |
||
|
14056A
|
14056A
16439-01B00 Clamp-Hose8701--01 ~ ; MA10S |
16439-01B00 |
US $5.18 |
||
|
14875B
|
14875B
0169100152 CONNECTOR-MANIFOLD8701--01 ~ ; MA10S |
0169100152 |
US $5.18 |
||
|
14875C
|
14875C
01692-00151 CONNECTOR-MANIFOLD8701--01 ~ ; MA10S |
01692-00151 |
US $5.47 |
||
|
14875F
|
14875F
01692-00142
CONNECTOR-STRAIGHT
8701--01 ~ ; MA10S |
01692-00142 |
— | ||
|
14875G
|
14875G
0169200052 CONNECTOR-INTAKE MANIFOLD WATER8701--01 ~ ; MA10S |
0169200052 |
US $4.71 |
||
|
14875G
|
14875G
0169200052 CONNECTOR-INTAKE MANIFOLD WATER8701--01 ~ ; MA10S |
0169200052 |
US $4.71 |
||
|
16590P
|
16590P
16590-03B00
Cover-Exhaust Manifold
8701--01 ~ ; MA10S |
16590-03B00 |
— | ||
|
19820F
|
19820F
24210-89963 Clip-Wiring Harness8701--01 ~ ; MA10S |
24210-89963 |
US $3.46 |
||
|
20900A
|
20900A
1406401M00 Stud8701--01 ~ ; MA10S |
1406401M00 |
US $4.27 |
||
|
22690M
|
22690M
22690-F5300 Heated Oxygen Sensor8701--01 ~ ; MA10S; JECS ﾐﾄﾞﾘ |
22690-F5300 |
US $549.41 |
||
|
22690M
|
22690M
22690-P6500
Heated Oxygen Sensor
8701--01 ~ ; MA10S; JECS ｸﾛ |
22690-P6500 |
— | ||
|
22690M
|
22690M
22690-P6510
Heated Oxygen Sensor
8701--01 ~ ; MA10S; JECS ｱｵ |
22690-P6510 |
— | ||
