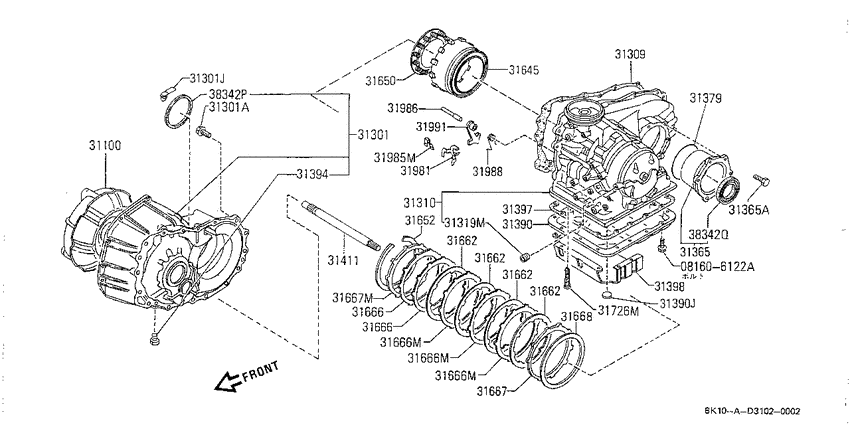

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1987-01-01 ~ ; RN3F01A) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081606122A
|
081606122A
08160-6122A
Bolt-hexagon
|
08160-6122A |
— | ||
|
31100
|
31100
31100-05X05 Converter Assy-Torque8701--01 ~ ; AT |
31100-05X05 |
US $945.89 |
||
|
31301
|
31301
31300-01X61
Housing-Converter
8701--01 ~ 8804--01; AT |
31300-01X61 |
— | ||
|
31301
|
31301
31300-01X65 Housing-Converter8804--01 ~ ; AT; |
31300-01X65 |
US $574.90 |
||
|
31301
|
31301
01121-02531 BOLT8701--01 ~ ; AT |
01121-02531 |
US $1.73 |
||
|
31301
|
31301
31095-01B10 Guard-Converter Housing8701--01 ~ ; S.AT |
31095-01B10 |
US $55.58 |
||
|
31301
|
31301
24210-01X00 Clip8701--01 ~ ; AT |
24210-01X00 |
US $5.04 |
||
|
31301A
|
31301A
01121-02531 BOLT8701--01 ~ ; AT |
01121-02531 |
US $1.73 |
||
|
31301J
|
31301J
24210-01X00 Clip8701--01 ~ ; AT |
24210-01X00 |
US $5.04 |
||
|
31309
|
31309
31309-01X02
Gasket-Converter Housing
8701--01 ~ ; AT |
31309-01X02 |
— | ||
|
31310
|
31310
31310-01X06 Case Assy-Automatic Transmission8701--01 ~ 8703--01; AT |
31310-01X06 |
US $549.41 |
||
|
31310
|
31310
31310-01X11
Case Assy-Automatic Transmission
8703--01 ~ 8711--01; AT |
31310-01X11 |
— | ||
|
31310
|
31310
31310-01X18 Case Assy-Automatic Transmission8711--01 ~ ; AT; |
31310-01X18 |
US $549.41 |
||
|
31310
|
31310
31310-01X64 Case Assy-Automatic Transmission8804--01 ~ ; AT; |
31310-01X64 |
US $549.41 |
||
|
31319M
|
31319M
01642-00071 PLUG-THREAD,SQUARE HEAD8701--01 ~ ; AT |
01642-00071 |
US $2.45 |
||
|
31365
|
31365
31370-01X04 Retainer-Bearing8701--01 ~ ; AT |
31370-01X04 |
US $58.61 |
||
|
31365
|
31365
01121-02361 BOLT-FRONT COVER8701--01 ~ ; AT |
01121-02361 |
US $3.46 |
||
|
31365A
|
31365A
01121-02361 BOLT-FRONT COVER8701--01 ~ ; AT |
01121-02361 |
US $3.46 |
||
|
31379
|
31379
31379-01X00 Seal-O Ring8701--01 ~ ; AT |
31379-01X00 |
US $11.66 |
||
|
31390
|
31390
31390-01X07 Pan Assy-Oil8701--01 ~ ; AT |
31390-01X07 |
US $26.50 |
||
|
31390
|
31390
31379-01X01 Magnet8701--01 ~ ; AT; |
31379-01X01 |
US $7.20 |
||
|
31390J
|
31390J
31379-01X01 Magnet8701--01 ~ ; AT; |
31379-01X01 |
US $7.20 |
||
|
31394
|
31394
01642-00051 Plug-Drain8701--01 ~ ; AT |
01642-00051 |
US $2.45 |
||
|
31397
|
31397
31397-01X01
Gasket-Oil Pan
8701--01 ~ ; AT |
31397-01X01 |
— | ||
| replacement | |||||
|
31397
|
31397
3139701X10 Gasket-Oil Pan8701--01 ~ ; AT |
3139701X10 |
US $24.62 |
||
|
31397
|
31397
31397-01X29 Gasket & Seal Kit-Auto Transmission8701--01 ~ ; S.AT |
31397-01X29 |
US $158.40 |
||
| replacement | |||||
|
31397
|
31397
C1397-01X2K
Gasket & seal kit-auto transmission
8701--01 ~ ; S.AT |
C1397-01X2K |
— | ||
|
31398
|
31398
31395-01X06 Guard-Oil Pan8701--01 ~ ; AT |
31395-01X06 |
US $34.27 |
||
|
31411
|
31411
31411-01X03 Shaft-Input8701--01 ~ ; AT |
31411-01X03 |
US $42.62 |
||
|
31645
|
31645
31644-01X04
Piston Assy-Low & Reverse Brake
8701--01 ~ ; AT |
31644-01X04 |
— | ||
| replacement | |||||
|
31645
|
31645
C1644-01X04
Piston assy-low & reverse brake
8701--01 ~ ; AT |
C1644-01X04 |
— | ||
|
31650
|
31650
31650-01X02 Retainer-Low & Reverse Brake8701--01 ~ ; AT |
31650-01X02 |
US $13.25 |
||
|
31652
|
31652
31376-01X00 Ring-Snap8701--01 ~ ; AT |
31376-01X00 |
US $5.18 |
||
|
31662
|
31662
31662-01X01 Plate Assy-Drive8701--01 ~ ; AT |
31662-01X01 |
US $31.54 |
||
|
31662
|
31662
31662-01X01 Plate Assy-Drive8701--01 ~ ; AT |
31662-01X01 |
US $31.54 |
||
|
31662
|
31662
31662-01X01 Plate Assy-Drive8701--01 ~ ; AT |
31662-01X01 |
US $31.54 |
||
|
31662
|
31662
31662-01X01 Plate Assy-Drive8701--01 ~ ; AT |
31662-01X01 |
US $31.54 |
||
|
31666
|
31666
31666-01X00
Plate-Driven
8701--01 ~ 8703--01; AT |
31666-01X00 |
— | ||
|
31666
|
31666
31666-01X00
Plate-Driven
8701--01 ~ ; AT |
31666-01X00 |
— | ||
|
31666
|
31666
31666-01X00
Plate-Driven
8701--01 ~ 8703--01; AT |
31666-01X00 |
— | ||
|
31666
|
31666
31666-01X00
Plate-Driven
8701--01 ~ ; AT |
31666-01X00 |
— | ||
|
31666M
|
31666M
31666-01X00
Plate-Driven
8701--01 ~ ; AT |
31666-01X00 |
— | ||
|
31666M
|
31666M
31666-01X00
Plate-Driven
8701--01 ~ ; AT |
31666-01X00 |
— | ||
|
31666M
|
31666M
31666-01X00
Plate-Driven
8701--01 ~ ; AT |
31666-01X00 |
— | ||
|
31667
|
31667
31667-01X02 Plate-Retaining8701--01 ~ 8703--01; AT |
31667-01X02 |
US $38.59 |
||
|
31667
|
31667
31667-01X00 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=3.6 |
31667-01X00 |
US $38.59 |
||
|
31667
|
31667
31667-01X01 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=3.8 |
31667-01X01 |
US $38.59 |
||
|
31667
|
31667
31667-01X02 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=4.0 |
31667-01X02 |
US $38.59 |
||
|
31667
|
31667
31667-01X03 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=4.2 |
31667-01X03 |
US $38.59 |
||
|
31667
|
31667
31667-01X04 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=4.4 |
31667-01X04 |
US $38.59 |
||
|
31667M
|
31667M
31667-01X00 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=3.6 |
31667-01X00 |
US $38.59 |
||
|
31667M
|
31667M
31667-01X01 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=3.8 |
31667-01X01 |
US $38.59 |
||
|
31667M
|
31667M
31667-01X02 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=4.0 |
31667-01X02 |
US $38.59 |
||
|
31667M
|
31667M
31667-01X03 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=4.2 |
31667-01X03 |
US $38.59 |
||
|
31667M
|
31667M
31667-01X04 Plate-Retaining8701--01 ~ ; AT; ｾﾝﾀｸ T=4.4 |
31667-01X04 |
US $38.59 |
||
|
31668
|
31668
31664-01X02 Plate-Dished8701--01 ~ ; AT |
31664-01X02 |
US $30.38 |
||
|
31726M
|
31726M
31726-21X00 Filter Assy-Oil, Control Valve8701--01 ~ ; AT |
31726-21X00 |
US $6.19 |
||
|
31981
|
31981
31981-01X03 Support-Parking Actuator8701--01 ~ ; AT |
31981-01X03 |
US $11.38 |
||
|
31985M
|
31985M
31985-01X00 Spring-Actuator Support8701--01 ~ ; AT |
31985-01X00 |
US $0.86 |
||
|
31986
|
31986
31986-01X01 Shaft-Parking Pawl8701--01 ~ ; AT |
31986-01X01 |
US $6.19 |
||
|
31988
|
31988
31988-01X02 Spring-Return Pawl8701--01 ~ ; AT |
31988-01X02 |
US $1.73 |
||
|
31991
|
31991
31991-01X04 Pawl-Parking8701--01 ~ ; AT |
31991-01X04 |
US $39.74 |
||
|
38342P
|
38342P
38342M8001 Seal-Oil, Differential Clutch Housing8701--01 ~ ; AT |
38342M8001 |
from US $5.47 |
||
|
38342Q
|
38342Q
38342M8001 Seal-Oil, Differential Clutch Housing8701--01 ~ ; AT |
38342M8001 |
from US $5.47 |
||
