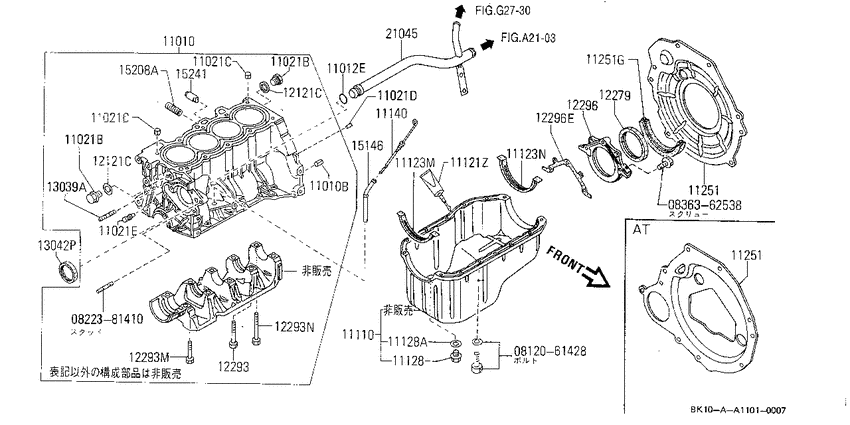

Cylinder - block & ｵｲﾙﾊﾟﾝ (1987-01-01 ~ ; MA10S) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061428
|
0812061428
0812061428
Bolt-hexagon
|
0812061428 |
— | ||
|
0822381410
|
0822381410
08223-81410
ｽﾀﾂﾄﾞ
|
08223-81410 |
— | ||
|
0836362538
|
0836362538
08363-62538
SCREWMACHINE
|
08363-62538 |
— | ||
|
11010
|
11010
11010-01B83 Block Assy-Cylinder8701--01 ~ ; MA10S |
11010-01B83 |
US $1,596 |
||
|
11010
|
11010
30412H1001 Dowel-Block8701--01 ~ ; MA10S |
30412H1001 |
from US $0.48 |
||
|
11010B
|
11010B
30412H1001 Dowel-Block8701--01 ~ ; MA10S |
30412H1001 |
from US $0.48 |
||
|
11012E
|
11012E
21046-01B00
Seal-O Ring
8701--01 ~ ; MA10S |
21046-01B00 |
— | ||
| replacement | |||||
|
11012E
|
11012E
210492J200 Seal-O Ring8701--01 ~ ; MA10S |
210492J200 |
from US $2.31 |
||
|
11021B
|
11021B
01641-00041 Plug-Taper8701--01 ~ ; MA10S |
01641-00041 |
US $5.47 |
||
|
11021B
|
11021B
01641-00041 Plug-Taper8701--01 ~ ; MA10S |
01641-00041 |
US $5.47 |
||
|
11021C
|
11021C
1105301M00 Dowel-Block To Head8701--01 ~ ; MA10S |
1105301M00 |
from US $1.35 |
||
|
11021C
|
11021C
1105301M00 Dowel-Block To Head8701--01 ~ ; MA10S |
1105301M00 |
from US $1.35 |
||
|
11021D
|
11021D
1104673402 Dowel-Water Pump8701--01 ~ ; MA10S; ﾌﾛﾝﾄ 1,ﾘﾔ- 2 |
1104673402 |
from US $0.48 |
||
|
11021E
|
11021E
01527-00042 PIN8701--01 ~ ; MA10S |
01527-00042 |
US $2.45 |
||
|
11110
|
11110
11110-01B03 Pan Assy-Oil8701--01 ~ ; MA10S |
11110-01B03 |
US $221.76 |
||
|
11121Z
|
11121Z
KP510-00150 Gasket-Liquid8701--01 ~ ; MA10S; [K504] |
KP510-00150 |
US $29.51 |
||
|
11123M
|
11123M
1113001B02 Seal-Oil Pan, Front8701--01 ~ ; MA10S |
1113001B02 |
US $2.74 |
||
|
11123N
|
11123N
1113101B01 Seal-Oil Pan, Rear8701--01 ~ ; MA10S |
1113101B01 |
US $2.74 |
||
|
11128
|
11128
11128-01M01 Plug-Drain, Engine Oil Pan8701--01 ~ ; MA10S |
11128-01M01 |
US $2.68 |
||
|
11128
|
11128
11026-01M01 Washer-Drain Plug8701--01 ~ ; MA10S |
11026-01M01 |
US $1.73 |
||
|
11128A
|
11128A
11026-01M01 Washer-Drain Plug8701--01 ~ ; MA10S |
11026-01M01 |
US $1.73 |
||
|
11140
|
11140
11140-01B02 Gauge-Oil Level8701--01 ~ ; MA10S |
11140-01B02 |
US $14.83 |
||
|
11251
|
11251
30411-02B01 Plate-Engine, Rear8701--01 ~ ; MA10S.AT |
30411-02B01 |
US $37.30 |
||
|
11251
|
11251
30411-02B01 Plate-Engine, Rear8701--01 ~ ; MA10S.AT |
30411-02B01 |
US $37.30 |
||
|
12121C
|
12121C
01351-00012 GASKET8701--01 ~ ; MA10S |
01351-00012 |
from US $0.93 |
||
|
12121C
|
12121C
01351-00012 GASKET8701--01 ~ ; MA10S |
01351-00012 |
from US $0.93 |
||
|
12279
|
12279
12279-01B00
Seal-Oil, Crankshaft Rear
8701--01 ~ 8702--01; MA10S |
12279-01B00 |
— | ||
|
12279
|
12279
12279-01B01
Seal-Oil, Crankshaft Rear
8702--01 ~ ; MA10S; ｾﾝﾀｸ ｼﾖｳ NOK |
12279-01B01 |
— | ||
| replacement | |||||
|
12279
|
12279
1227901B10 Seal-Oil, Crankshaft Rear8702--01 ~ ; MA10S; ｾﾝﾀｸ ｼﾖｳ NOK |
1227901B10 |
US $36.44 |
||
|
12279
|
12279
12279-01B11 Seal-Oil, Crankshaft Rear8702--01 ~ ; MA10S; ｾﾝﾀｸ ｼﾖｳ ｷ-ﾊﾟ- |
12279-01B11 |
US $24.48 |
||
|
12293
|
12293
12293-01B00 Bolt-Main Bearing Cap8701--01 ~ ; MA10S; L=80 |
12293-01B00 |
US $3.46 |
||
|
12293
|
12293
12293-01B01 Bolt-Main Bearing Cap8701--01 ~ ; MA10S; L=90 |
12293-01B01 |
US $3.46 |
||
|
12293
|
12293
12293-01B02 Bolt-Main Bearing Cap8701--01 ~ ; MA10S; L=116 |
12293-01B02 |
US $3.46 |
||
|
12293M
|
12293M
12293-01B01 Bolt-Main Bearing Cap8701--01 ~ ; MA10S; L=90 |
12293-01B01 |
US $3.46 |
||
|
12293N
|
12293N
12293-01B02 Bolt-Main Bearing Cap8701--01 ~ ; MA10S; L=116 |
12293-01B02 |
US $3.46 |
||
|
12296
|
12296
11136-01B00 Retainer-Oil Seal, Rear8701--01 ~ ; MA10S |
11136-01B00 |
US $28.80 |
||
|
12296
|
12296
11137-01B01 Gasket-Retainer8701--01 ~ 8803--01; MA10S |
11137-01B01 |
US $3.46 |
||
|
12296
|
12296
11137-01B02 Gasket-Retainer8803--01 ~ ; MA10S |
11137-01B02 |
US $3.46 |
||
|
12296E
|
12296E
11137-01B01 Gasket-Retainer8701--01 ~ 8803--01; MA10S |
11137-01B01 |
US $3.46 |
||
|
12296E
|
12296E
11137-01B02 Gasket-Retainer8803--01 ~ ; MA10S |
11137-01B02 |
US $3.46 |
||
|
13039A
|
13039A
01151-00131 STUD-FRONT COVER8701--01 ~ ; MA10S |
01151-00131 |
US $1.73 |
||
|
13042P
|
13042P
1351001B00 Seal-Oil, Crankshaft Front8701--01 ~ ; MA10S |
1351001B00 |
US $22.84 |
||
|
15146
|
15146
15146-01B00 Guide-Oil Level Gauge8701--01 ~ ; MA10S |
15146-01B00 |
US $8.78 |
||
|
15208A
|
15208A
15213-21001 Stud-Oil Filter8701--01 ~ ; MA10S |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15208A
|
15208A
15213-W040A Stud-oil filter8701--01 ~ ; MA10S |
15213-W040A |
US $5.81 |
||
|
15241
|
15241
15241-01M00 Valve-Oil Pressure Regulator8701--01 ~ ; MA10S |
15241-01M00 |
US $8.06 |
||
| replacement | |||||
|
15241
|
15241
1524101M0A Valve-Oil Pressure Regulator8701--01 ~ ; MA10S |
1524101M0A |
US $8.06 |
||
|
21045
|
21045
21045-01B01 ﾊﾟｲﾌﾟ,ｻｸｼﾖﾝ ｳｵ-ﾀ- ﾎﾟﾝﾌﾟ8701--01 ~ ; MA10S |
21045-01B01 |
US $62.78 |
||
