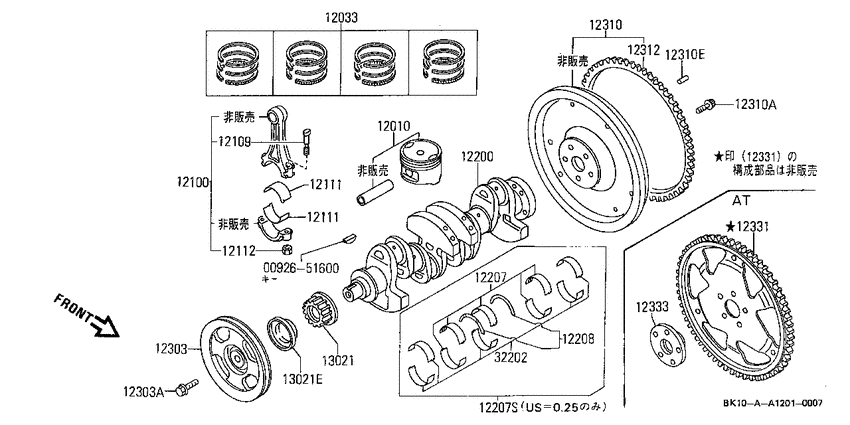

ﾋﾟｽﾄﾝ & ｸﾗﾝｸｼﾔﾌﾄ & ﾌﾗｲﾎｲ-ﾙ (1987-01-01 ~ ; 主運動部; MA10S) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092651600
|
0092651600
0092651600 KEY |
0092651600 |
US $3.06 |
||
|
12010
|
12010
12010-01B01 Piston, W/pin8701--01 ~ ; MA10S; STD ｸﾞﾚ-ﾄﾞ1 |
12010-01B01 |
US $49.54 |
||
|
12010
|
12010
12010-01B02 Piston, W/pin8701--01 ~ ; MA10S; STD ｸﾞﾚ-ﾄﾞ2 |
12010-01B02 |
US $49.54 |
||
|
12010
|
12010
12010-01B03 Piston, W/pin8701--01 ~ ; MA10S; STD ｸﾞﾚ-ﾄﾞ3 |
12010-01B03 |
US $49.54 |
||
|
12010
|
12010
12010-01B04 Piston, W/pin8701--01 ~ ; MA10S; STD ｸﾞﾚ-ﾄﾞ4 |
12010-01B04 |
US $49.54 |
||
|
12010
|
12010
12010-01B05 Piston, W/pin8701--01 ~ ; MA10S; STD ｸﾞﾚ-ﾄﾞ5 |
12010-01B05 |
US $49.54 |
||
|
12010
|
12010
12010-01B06 Piston, W/pin8701--01 ~ ; MA10S; OS=0.2 |
12010-01B06 |
US $49.54 |
||
|
12033
|
12033
12033-01B05 Ring Set-Piston8803--01 ~ ; MA10S; STD |
12033-01B05 |
US $124.32 |
||
|
12033
|
12033
12035-01B05 Ring Set-Piston8804--01 ~ ; MA10S; OS=0.2 |
12035-01B05 |
US $169.92 |
||
|
12033
|
12033
12035-01B10 Ring Set-Piston8701--01 ~ 8804--01; MA10S; OS=0.2 |
12035-01B10 |
US $142.70 |
||
|
12033
|
12033
A2033-01B10 Ring Set-Piston8701--01 ~ 8803--01; MA10S; STD ｸﾞﾚ-ﾄﾞ1 ﾆﾎﾝ ﾋﾟｽﾄﾝ ﾘﾝｸﾞ |
A2033-01B10 |
US $38.30 |
||
|
12033
|
12033
A2033-01B11 Ring Set-Piston8701--01 ~ 8803--01; MA10S; STD ｸﾞﾚ-ﾄﾞ2,3 ﾆﾎﾝ ﾋﾟｽﾄﾝ ﾘﾝｸﾞ |
A2033-01B11 |
US $38.30 |
||
|
12100
|
12100
12100-01B10
Rod Compl-Connecting
8701--01 ~ ; MA10S |
12100-01B10 |
— | ||
|
12109
|
12109
12109-01B10 Bolt-Connecting Rod8701--01 ~ ; MA10S |
12109-01B10 |
US $2.45 |
||
|
12111
|
12111
12111-01B10 Bearing-Connecting Rod8701--01 ~ ; MA10S; STD |
12111-01B10 |
US $17.14 |
||
|
12111
|
12111
12111-01B11 Bearing-Connecting Rod8701--01 ~ ; MA10S; US=0.25 |
12111-01B11 |
US $17.14 |
||
|
12111
|
12111
12111-01B10 Bearing-Connecting Rod8701--01 ~ ; MA10S; STD |
12111-01B10 |
US $17.14 |
||
|
12111
|
12111
12111-01B11 Bearing-Connecting Rod8701--01 ~ ; MA10S; US=0.25 |
12111-01B11 |
US $17.14 |
||
|
12112
|
12112
01225-00152 NUT-CONNECTING ROD8701--01 ~ ; MA10S |
01225-00152 |
US $2.45 |
||
|
12200
|
12200
12201-01B00 Crankshaft Assy8701--01 ~ ; MA10S |
12201-01B00 |
US $1,396.18 |
||
|
12207
|
12207
1221501B10 Bearing-Crankshaft8701--01 ~ ; MA10S; STD0 #2,3(ｱﾂﾊﾟ-),4 ｸﾛ (ﾐｿﾞﾂｷ) |
1221501B10 |
US $18.14 |
||
|
12207
|
12207
12215-01B11 Bearing-Crankshaft8701--01 ~ ; MA10S; STD1 #2,3(ｱﾂﾊﾟ-),4 ﾁﾔ (ﾐｿﾞﾂｷ) |
12215-01B11 |
US $18.14 |
||
|
12207
|
12207
12215-01B12 Bearing-Crankshaft8701--01 ~ ; MA10S; STD2 #2,3(ｱﾂﾊﾟ-),4 ﾐﾄﾞﾘ (ﾐｿﾞﾂｷ) |
12215-01B12 |
US $18.14 |
||
|
12207
|
12207
12215-01B13 Bearing-Crankshaft8701--01 ~ ; MA10S; STD3 #2,3(ｱﾂﾊﾟ-),4 ｷｲﾛ (ﾐｿﾞﾂｷ) |
12215-01B13 |
US $18.14 |
||
|
12207
|
12207
12215-01B14 Bearing-Crankshaft8701--01 ~ ; MA10S; STD4 #2,3(ｱﾂﾊﾟ-),4 ｱｵ (ﾐｿﾞﾂｷ) |
12215-01B14 |
US $18.14 |
||
|
12207
|
12207
12215-01B15 Bearing-Crankshaft8701--01 ~ ; MA10S; STD5 #2,3(ｱﾂﾊﾟ-),4 ﾋﾟﾝｸ(ﾐｿﾞﾂｷ) |
12215-01B15 |
US $20.02 |
||
|
12207
|
12207
12215-01B16 Bearing-Crankshaft8701--01 ~ ; MA10S; !STD6 #2,3(ｱﾂﾊﾟ-),4 ﾊﾞｲｵﾚﾂﾄ(ﾐｿﾞﾂｷ) |
12215-01B16 |
US $20.02 |
||
|
12207
|
12207
12208-01B10
Bearing Set-Crankshaft
8701--01 ~ ; MA10S; US=0.25 |
12208-01B10 |
— | ||
|
12207S
|
12207S
12208-01B10
Bearing Set-Crankshaft
8701--01 ~ ; MA10S; US=0.25 |
12208-01B10 |
— | ||
|
12208
|
12208
12280-01B00 Washer-Thrust, Upper8701--01 ~ ; MA10S |
12280-01B00 |
US $6.05 |
||
|
12303
|
12303
12303-01B11 Pulley-Crankshaft8701--01 ~ ; MA10S |
12303-01B11 |
US $149.76 |
||
|
12303
|
12303
12309-01M01
Bolt-Pulley, Crankshaft
8701--01 ~ ; MA10S |
12309-01M01 |
— | ||
|
12303A
|
12303A
12309-01M01
Bolt-Pulley, Crankshaft
8701--01 ~ ; MA10S |
12309-01M01 |
— | ||
|
12310
|
12310
12315-02B00
Bolt-Flywheel
8701--01 ~ ; MA10S.AT |
12315-02B00 |
— | ||
|
12310A
|
12310A
12315-02B00
Bolt-Flywheel
8701--01 ~ ; MA10S.AT |
12315-02B00 |
— | ||
|
12331
|
12331
12331-02B00 Plate Assy-Drive & Gear8701--01 ~ ; MA10S.AT |
12331-02B00 |
US $351.17 |
||
|
12331
|
12331
12331-02B00 Plate Assy-Drive & Gear8701--01 ~ ; MA10S.AT |
12331-02B00 |
US $351.17 |
||
|
12333
|
12333
12333-02B00 Plate-Crankshaft To Converter8701--01 ~ ; MA10S.AT |
12333-02B00 |
US $44.06 |
||
|
13021
|
13021
13021-01B00 Sprocket-Crankshaft8701--01 ~ ; MA10S |
13021-01B00 |
US $36.86 |
||
|
13021
|
13021
13023-01B00 Plate-Crankshaft Sprocket8701--01 ~ ; MA10S |
13023-01B00 |
US $5.04 |
||
|
13021E
|
13021E
13023-01B00 Plate-Crankshaft Sprocket8701--01 ~ ; MA10S |
13023-01B00 |
US $5.04 |
||
|
32202
|
32202
12216-01B10 Bushing-Crankshaft8701--01 ~ ; MA10S; STD0 #1,3(ﾛｱ-),5 (ﾐｿﾞﾅｼ) |
12216-01B10 |
US $8.06 |
||
|
32202
|
32202
1221601B11 Bushing-Crankshaft8701--01 ~ ; MA10S; STD1 #1,3(ﾛｱ-),5 (ﾐｿﾞﾅｼ) |
1221601B11 |
US $8.06 |
||
|
32202
|
32202
12216-01B12 Bushing-Crankshaft8701--01 ~ ; MA10S; STD2 #1,3(ﾛｱ-),5 (ﾐｿﾞﾅｼ) |
12216-01B12 |
US $8.06 |
||
|
32202
|
32202
12216-01B13 Bushing-Crankshaft8701--01 ~ ; MA10S; STD3 #1,3(ﾛｱ-),5 (ﾐｿﾞﾅｼ) |
12216-01B13 |
US $8.06 |
||
|
32202
|
32202
12216-01B14 Bushing-Crankshaft8701--01 ~ ; MA10S; STD4 #1,3(ﾛｱ-),5 (ﾐｿﾞﾅｼ) |
12216-01B14 |
US $8.06 |
||
|
32202
|
32202
12216-01B15 Bushing-Crankshaft8701--01 ~ ; MA10S; STD5 #1,3(ﾛｱ-),5(ﾐｿﾞ ﾅｼ) |
12216-01B15 |
US $8.06 |
||
|
32202
|
32202
12216-01B16 Bushing-Crankshaft8701--01 ~ ; MA10S; STD6 #1,3(ﾛｱ-),5(ﾐｿﾞ ﾅｼ) |
12216-01B16 |
US $7.92 |
