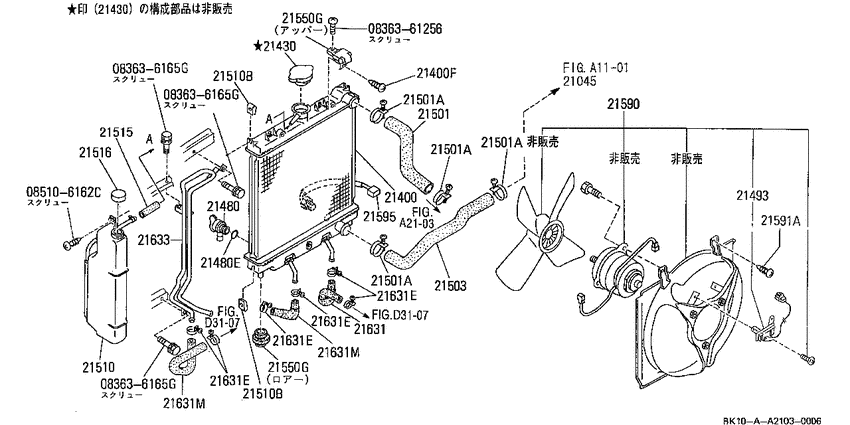

radiator (1987-01-01 ~ ; フィッティング パーツ; AT) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361256
|
0836361256
08363-61256
SCREW
|
08363-61256 |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
085106162C
|
085106162C
08510-6162C
SCREWTAPPING
|
08510-6162C |
— | ||
|
21045
|
21045
21045-01B01 ﾊﾟｲﾌﾟ,ｻｸｼﾖﾝ ｳｵ-ﾀ- ﾎﾟﾝﾌﾟ8701--01 ~ ; MA10S |
21045-01B01 |
US $62.78 |
||
|
21400
|
21400
2146020B10 ﾗﾁﾞｴ-ﾀ-8701--01 ~ ; S.AT; [B517] |
2146020B10 |
US $920.40 |
||
|
21400
|
21400
01451-00651 SCREW8701--01 ~ ; S |
01451-00651 |
US $1.73 |
||
|
21400F
|
21400F
01451-00651 SCREW8701--01 ~ ; S |
01451-00651 |
US $1.73 |
||
|
21430
|
21430
21430-01F00
Cap Assy-Radiator
8701--01 ~ ; S |
21430-01F00 |
— | ||
| replacement | |||||
|
21430
|
21430
21430-7999C Cap Assy-Radiator8701--01 ~ ; S |
21430-7999C |
from US $11.77 |
||
|
21430
|
21430
21430-01F00
Cap Assy-Radiator
8701--01 ~ ; S |
21430-01F00 |
— | ||
| replacement | |||||
|
21430
|
21430
21430-7999C Cap Assy-Radiator8701--01 ~ ; S |
21430-7999C |
from US $11.77 |
||
|
21480
|
21480
21440-01E00 COCK-WATER DRAIN8701--01 ~ ; S |
21440-01E00 |
US $8.78 |
||
|
21480
|
21480
2148118000 Packing-Drain8701--01 ~ ; S |
2148118000 |
from US $0.59 |
||
|
21480E
|
21480E
2148118000 Packing-Drain8701--01 ~ ; S |
2148118000 |
from US $0.59 |
||
|
21493
|
21493
21493-03E00 RESISTANCE-MOTOR FAN8701--01 ~ ; S |
21493-03E00 |
US $115.92 |
||
|
21501
|
21501
21501-20B00 ﾎ-ｽ,ﾗｼﾞｴ-ﾀ- ｱﾂﾊﾟ-8701--01 ~ ; S; [B517] |
21501-20B00 |
US $15.70 |
||
|
21501
|
21501
01555-00271
CLAMP-HOSE
8701--01 ~ ; S |
01555-00271 |
— | ||
| replacement | |||||
|
21501
|
21501
0155501161 CLAMP-HOSE8701--01 ~ ; S |
0155501161 |
from US $1.13 |
||
|
21501A
|
21501A
01555-00271
CLAMP-HOSE
8701--01 ~ ; S |
01555-00271 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501161 CLAMP-HOSE8701--01 ~ ; S |
0155501161 |
from US $1.13 |
||
|
21501A
|
21501A
01555-00271
CLAMP-HOSE
8701--01 ~ ; S |
01555-00271 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501161 CLAMP-HOSE8701--01 ~ ; S |
0155501161 |
from US $1.13 |
||
|
21501A
|
21501A
01555-00271
CLAMP-HOSE
8701--01 ~ ; S |
01555-00271 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501161 CLAMP-HOSE8701--01 ~ ; S |
0155501161 |
from US $1.13 |
||
|
21501A
|
21501A
01555-00271
CLAMP-HOSE
8701--01 ~ ; S |
01555-00271 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501161 CLAMP-HOSE8701--01 ~ ; S |
0155501161 |
from US $1.13 |
||
|
21503
|
21503
21503-20B05
ﾎ-ｽ,ﾗｼﾞｴ-ﾀ- ﾛｱ
8701--01 ~ ; S; [B517] |
21503-20B05 |
— | ||
|
21510
|
21510
21720-20B00 ﾀﾝｸ ｱﾂｾﾝﾌﾞﾘ-,ﾘｻﾞ-ﾌﾞ8701--01 ~ ; S |
21720-20B00 |
US $129.17 |
||
|
21510
|
21510
01241-00151 NUT-SPRING8701--01 ~ ; S |
01241-00151 |
US $2.45 |
||
|
21510B
|
21510B
01241-00151 NUT-SPRING8701--01 ~ ; S |
01241-00151 |
US $2.45 |
||
|
21510B
|
21510B
01241-00151 NUT-SPRING8701--01 ~ ; S |
01241-00151 |
US $2.45 |
||
|
21515
|
21515
21741-B9700 Hose-Reserve Tank8701--01 ~ ; S |
21741-B9700 |
US $4.18 |
||
| replacement | |||||
|
21515
|
21515
2174106J00 Hose-Reserve Tank8701--01 ~ ; S |
2174106J00 |
US $22.31 |
||
|
21516
|
21516
21712-50M00
Cap-Reservoir Tank
8701--01 ~ ; S |
21712-50M00 |
— | ||
| replacement | |||||
|
21516
|
21516
2171250M01 Cap-Reservoir Tank8701--01 ~ ; S |
2171250M01 |
from US $4.90 |
||
|
21550G
|
21550G
21507-53A01
Spacer-Radiator Mounting
8701--01 ~ ; S; ﾛｱ- |
21507-53A01 |
— | ||
|
21550G
|
21550G
21521-50M00
Mounting Rubber-Radiator
8701--01 ~ ; S; ｱﾂﾊﾟ- |
21521-50M00 |
— | ||
|
21550G
|
21550G
21507-53A01
Spacer-Radiator Mounting
8701--01 ~ ; S; ﾛｱ- |
21507-53A01 |
— | ||
|
21550G
|
21550G
21521-50M00
Mounting Rubber-Radiator
8701--01 ~ ; S; ｱﾂﾊﾟ- |
21521-50M00 |
— | ||
|
21590
|
21590
21480-20B00 ﾓ-ﾀ- & ﾌｱﾝ ｱﾂｾﾝﾌﾞﾘ-,ｳｲｽﾞ ｼﾕﾗｳﾄﾞ8701--01 ~ ; S |
21480-20B00 |
US $419.14 |
||
|
21591A
|
21591A
01451-00651 SCREW8701--01 ~ ; S |
01451-00651 |
US $1.73 |
||
|
21595
|
21595
21595-20B00
Switch-Thermometer
8701--01 ~ ; S |
21595-20B00 |
— | ||
|
21631
|
21631
21631-20B10 ﾎ-ｽ,ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ｵｲﾙ ｸ-ﾗ-8701--01 ~ ; S.AT; RH |
21631-20B10 |
US $41.47 |
||
|
21631
|
21631
01555-00451 CLAMP-HOSE8701--01 ~ ; S.AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631
|
21631
0155501061
ｸﾗﾝﾌﾟ
8701--01 ~ ; S.AT |
0155501061 |
— | ||
|
21631
|
21631
21635-20B10 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ8701--01 ~ ; S.AT; RAD TO OIL COOLER |
21635-20B10 |
US $29.09 |
||
|
21631
|
21631
21636-20B10 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ8701--01 ~ ; S.AT; TRANS TO OIL CLR |
21636-20B10 |
US $40.75 |
||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8701--01 ~ ; S.AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8701--01 ~ ; S.AT |
0155501061 |
— | ||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8701--01 ~ ; S.AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8701--01 ~ ; S.AT |
0155501061 |
— | ||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8701--01 ~ ; S.AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8701--01 ~ ; S.AT |
0155501061 |
— | ||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8701--01 ~ ; S.AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8701--01 ~ ; S.AT |
0155501061 |
— | ||
|
21631M
|
21631M
21635-20B10 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ8701--01 ~ ; S.AT; RAD TO OIL COOLER |
21635-20B10 |
US $29.09 |
||
|
21631M
|
21631M
21636-20B10 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ8701--01 ~ ; S.AT; TRANS TO OIL CLR |
21636-20B10 |
US $40.75 |
||
|
21631M
|
21631M
21635-20B10 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ8701--01 ~ ; S.AT; RAD TO OIL COOLER |
21635-20B10 |
US $29.09 |
||
|
21631M
|
21631M
21636-20B10 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ8701--01 ~ ; S.AT; TRANS TO OIL CLR |
21636-20B10 |
US $40.75 |
||
|
21633
|
21633
21623-20B10 Tube Assy-Oil Cooler8701--01 ~ ; S.AT |
21623-20B10 |
US $45.50 |
||
