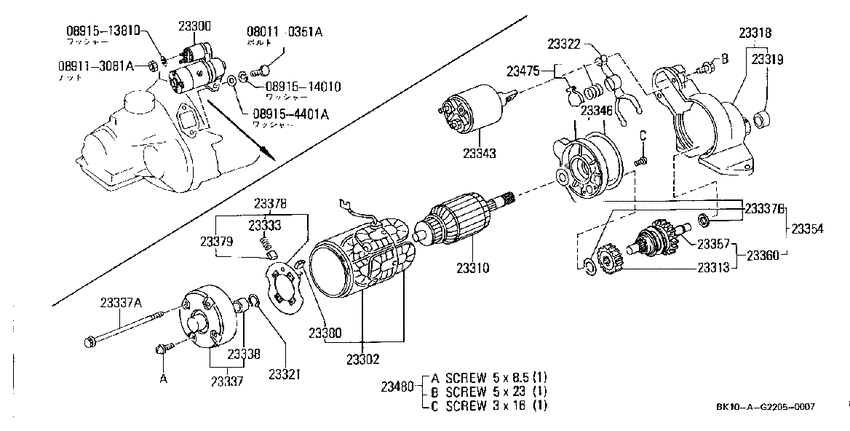

Starter motor (1987-01-01 ~ ; AT) Diagram Nissan BE-1
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080110351A
|
080110351A
08011-0351A
Bolt-hexagon
|
08011-0351A |
— | ||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
23300
|
23300
23300-M8111 Motor Assy-Starter8701--01 ~ ; AT; ﾐﾂﾋﾞｼ M2T23685 |
23300-M8111 |
US $712.25 |
||
|
23302
|
23302
23302-M8111 Yoke Assy8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23302-M8111 |
US $280.80 |
||
|
23310
|
23310
23310-M8111 Armature Assy8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23310-M8111 |
US $355.42 |
||
|
23313
|
23313
23361-M8111 Gear8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23361-M8111 |
US $30.24 |
||
|
23318
|
23318
23318-M8111 Bracket Assy-Center8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23318-M8111 |
US $117.36 |
||
|
23319
|
23319
23319-M8010 Metal-Gear Case8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23319-M8010 |
US $7.49 |
||
|
23321
|
23321
23460-B5060 Washer Set-Thrust8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23460-B5060 |
US $5.18 |
||
|
23322
|
23322
23322-M8111 Lever Set-Shift8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23322-M8111 |
US $27.65 |
||
|
23333
|
23333
23333M1510 Spring-Brush8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-H5010 Cover Assy-Rear8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23337-H5010 |
US $27.50 |
||
|
23337
|
23337
23340-H5010 Bolt-Through8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23340-H5010 |
US $2.02 |
||
|
23337
|
23337
23465-M8111 Stopper Set-Pinion8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23465-M8111 |
US $9.36 |
||
|
23337A
|
23337A
23340-H5010 Bolt-Through8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23340-H5010 |
US $2.02 |
||
|
23337B
|
23337B
23465-M8111 Stopper Set-Pinion8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23465-M8111 |
US $9.36 |
||
|
23338
|
23338
23338-P0610 Metal-Rear Cover8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23338-P0610 |
US $14.54 |
||
|
23343
|
23343
23343M8111 Switch Assy-Magnetic8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23343M8111 |
US $188.64 |
||
|
23346
|
23346
23346-M8111 Housing-Center8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23346-M8111 |
US $36 |
||
|
23354
|
23354
23312-M8111 Pinion Assy8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23312-M8111 |
US $298.78 |
||
|
23357
|
23357
23354-M8111 Clutch Assy8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23354-M8111 |
US $325.68 |
||
|
23360
|
23360
23360-M8111 Gear & Shaft Set8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23360-M8111 |
US $321.43 |
||
|
23378
|
23378
23378-M8010 Holder Assy-Brush8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23378-M8010 |
US $42.62 |
||
|
23379
|
23379
23380-U0110
Brush-Minus
8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23380-U0110 |
— | ||
|
23380
|
23380
23380-E3010 Brush-Plus8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23380-E3010 |
US $10.08 |
||
|
23475
|
23475
23475-M8110 Spring Set8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23475-M8110 |
US $7.92 |
||
|
23480
|
23480
23480-M0110 Screw Set8701--01 ~ ; AT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
