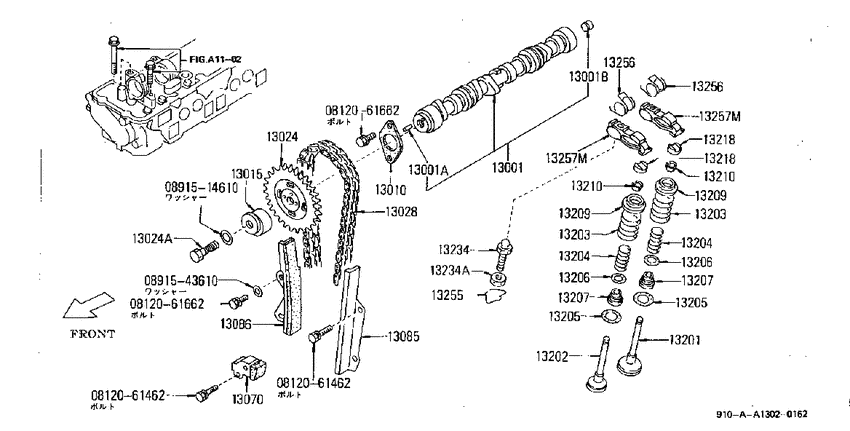

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1979-10-01 ~ 1981-12-01; L16S.V) Diagram Nissan BLUEBIRD
- Year
- 1979 - 1981
- Sales region
- Japan
- Engine
- L16S
- transmission
- AT
- grade
- GL
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061462
|
0812061462
08120-61462
Bolt-hexagon
|
08120-61462 |
— | ||
|
0812061462
|
0812061462
08120-61462
Bolt-hexagon
|
08120-61462 |
— | ||
|
0812061662
|
0812061662
08120-61662
Bolt-hexagon
|
08120-61662 |
— | ||
|
0812061662
|
0812061662
08120-61662
Bolt-hexagon
|
08120-61662 |
— | ||
|
0891514610
|
0891514610
08915-14610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-14610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
13001
|
13001
13001-H2700
Camshaft Assy
7910--01 ~ 8112--01; L16S |
13001-H2700 |
— | ||
|
13001
|
13001
1303218000 Dowel-Camshaft7910--01 ~ 8112--01; L16S |
1303218000 |
from US $0.57 |
||
|
13001
|
13001
11024K0100 Plug-Taper7910--01 ~ 8112--01; L16S |
11024K0100 |
from US $0.52 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft7910--01 ~ 8112--01; L16S |
1303218000 |
from US $0.57 |
||
|
13001B
|
13001B
11024K0100 Plug-Taper7910--01 ~ 8112--01; L16S |
11024K0100 |
from US $0.52 |
||
|
13010
|
13010
13010-21000 Plate-Locating, Camshaft7910--01 ~ 8112--01; L16S |
13010-21000 |
US $9.56 |
||
|
13015
|
13015
13015-21002
Cam Assy-Fuel Pump
7910--01 ~ 8112--01; L16S |
13015-21002 |
— | ||
| replacements | |||||
|
13015
|
13015
13015-W0400 Cam Assy-Fuel Pump7910--01 ~ 8112--01; L16S |
13015-W0400 |
US $11.79 |
||
|
13015
|
13015
13012-W0401 Bolt-Sprocket, Camshaft7910--01 ~ 8112--01; L16S |
13012-W0401 |
US $4.03 |
||
|
13024
|
13024
13024-U8000 Sprocket-Camshaft7910--01 ~ 8112--01; L16S |
13024-U8000 |
US $81.24 |
||
|
13024
|
13024
1301221002 Bolt-Sprocket, Camshaft7910--01 ~ 8112--01; L16S |
1301221002 |
US $5.12 |
||
|
13024A
|
13024A
1301221002 Bolt-Sprocket, Camshaft7910--01 ~ 8112--01; L16S |
1301221002 |
US $5.12 |
||
|
13028
|
13028
1302821000 Chain-Timing Camshaft7910--01 ~ 8112--01; L16S |
1302821000 |
US $219 |
||
|
13070
|
13070
1307021002 Tensioner Assy-Chain7910--01 ~ 8112--01; L16S |
1307021002 |
from US $37.65 |
||
|
13085
|
13085
1308521002 Guide-Chain, Tension Side7910--01 ~ 8112--01; L16S |
1308521002 |
US $13.29 |
||
| replacement | |||||
|
13085
|
13085
13085-W3400
Guide-Chain, Tension Side
7910--01 ~ 8112--01; L16S |
13085-W3400 |
— | ||
|
13086
|
13086
13091A3500 Guide-Chain, Slack Side7910--01 ~ 8112--01; L16S |
13091A3500 |
US $127.66 |
||
|
13201
|
13201
13201-A1100
Valve-Intake
7910--01 ~ 8112--01; L16S |
13201-A1100 |
— | ||
|
13202
|
13202
13202-21002
Valve-Exhaust
7910--01 ~ 8102--01; L16S |
13202-21002 |
— | ||
|
13202
|
13202
13202-21003 Valve-Exhaust8103--01 ~ 8112--01; L16S |
13202-21003 |
US $59.76 |
||
|
13203
|
13203
13203-E4100 Spring-Valve, Outer7910--01 ~ 8112--01; L16S |
13203-E4100 |
US $6.79 |
||
|
13203
|
13203
13203-E4100 Spring-Valve, Outer7910--01 ~ 8112--01; L16S |
13203-E4100 |
US $6.79 |
||
|
13204
|
13204
13204-23000 Spring-Valve, Inner7910--01 ~ 8112--01; L16S |
13204-23000 |
US $4.71 |
||
|
13204
|
13204
13204-23000 Spring-Valve, Inner7910--01 ~ 8112--01; L16S |
13204-23000 |
US $4.71 |
||
|
13205
|
13205
13205-14601 Seat-Valve Spring, Outer7910--01 ~ 8106--01; L16S |
13205-14601 |
US $1.58 |
||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR7910--01 ~ 8106--01; L16S |
13205D020A |
US $1.93 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8107--01 ~ 8112--01; L16S |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8107--01 ~ 8112--01; L16S |
13205D020A |
US $1.93 |
||
|
13205
|
13205
13205-14601 Seat-Valve Spring, Outer7910--01 ~ 8106--01; L16S |
13205-14601 |
US $1.58 |
||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR7910--01 ~ 8106--01; L16S |
13205D020A |
US $1.93 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8107--01 ~ 8112--01; L16S |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8107--01 ~ 8112--01; L16S |
13205D020A |
US $1.93 |
||
|
13206
|
13206
13206-23000
Seat-Valve Spring, Inner
7910--01 ~ 8112--01; L16S |
13206-23000 |
— | ||
| replacement | |||||
|
13206
|
13206
13206-2300A Seat-Valve Spring, Inner7910--01 ~ 8112--01; L16S |
13206-2300A |
from US $0.61 |
||
|
13206
|
13206
13206-23000
Seat-Valve Spring, Inner
7910--01 ~ 8112--01; L16S |
13206-23000 |
— | ||
| replacement | |||||
|
13206
|
13206
13206-2300A Seat-Valve Spring, Inner7910--01 ~ 8112--01; L16S |
13206-2300A |
from US $0.61 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
7910--01 ~ 8112--01; L16S |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve7910--01 ~ 8112--01; L16S |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
7910--01 ~ 8112--01; L16S |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve7910--01 ~ 8112--01; L16S |
1320781W00 |
from US $3.19 |
||
|
13209
|
13209
13209-N6800 Retainer-valve spring7910--01 ~ 8112--01; L16S |
13209-N6800 |
US $4.18 |
||
|
13209
|
13209
13209-N6800 Retainer-valve spring7910--01 ~ 8112--01; L16S |
13209-N6800 |
US $4.18 |
||
|
13210
|
13210
13210U0100 Collet-Valve Spring7910--01 ~ 8112--01; L16S |
13210U0100 |
from US $0.81 |
||
|
13210
|
13210
13210U0100 Collet-Valve Spring7910--01 ~ 8112--01; L16S |
13210U0100 |
from US $0.81 |
||
|
13218
|
13218
13218-A3501
Guide-Rocker Valve
7910--01 ~ 8112--01; L16S |
13218-A3501 |
— | ||
|
13218
|
13218
13218-A3501
Guide-Rocker Valve
7910--01 ~ 8112--01; L16S |
13218-A3501 |
— | ||
|
13234
|
13234
13234-21000 Screw-Adjust, Valve Rocker7910--01 ~ 8112--01; L16S |
13234-21000 |
US $4.42 |
||
|
13234
|
13234
13235-U0100 Nut-Lock, Rocker Pivot Screw7910--01 ~ 8112--01; L16S |
13235-U0100 |
US $3.88 |
||
|
13234A
|
13234A
13235-U0100 Nut-Lock, Rocker Pivot Screw7910--01 ~ 8112--01; L16S |
13235-U0100 |
US $3.88 |
||
|
13255
|
13255
13255-A8600 Retainer-Rocker Pivot7910--01 ~ 8112--01; L16S |
13255-A8600 |
US $1.58 |
||
|
13256
|
13256
13256-21003 Spring-Rocker7910--01 ~ 8112--01; L16S |
13256-21003 |
US $1.67 |
||
|
13256
|
13256
13256-21003 Spring-Rocker7910--01 ~ 8112--01; L16S |
13256-21003 |
US $1.67 |
||
|
13257M
|
13257M
13257-21000
Rocker-Valve
7910--01 ~ 8112--01; L16S |
13257-21000 |
— | ||
| replacement | |||||
|
13257M
|
13257M
13257W0300 Rocker-Valve7910--01 ~ 8112--01; L16S |
13257W0300 |
US $205.14 |
||
|
13257M
|
13257M
13257-21000
Rocker-Valve
7910--01 ~ 8112--01; L16S |
13257-21000 |
— | ||
| replacement | |||||
|
13257M
|
13257M
13257W0300 Rocker-Valve7910--01 ~ 8112--01; L16S |
13257W0300 |
US $205.14 |
||
