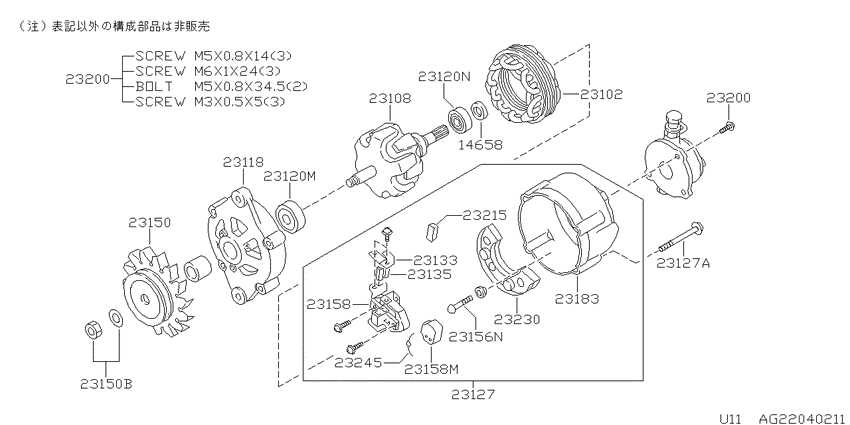

Alternator (1983-10-01 ~ ; 日立60A オルタネーター構成; LD20) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- AT
- grade
- SLXG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14658
|
14658
14658-05E16 SEAL-OIL8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14658-05E16 |
US $46.66 |
||
|
14658
|
14658
14658-36W00 Seal-Oil8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14658-36W00 |
US $13.10 |
||
|
23102
|
23102
23102-05E16 STATOR ASSY8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23102-05E16 |
US $448.87 |
||
|
23102
|
23102
23102-W1705 Stator Assy8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23102-W1705 |
US $314.35 |
||
|
23108
|
23108
23108-05E06 ROTOR ASSY8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23108-05E06 |
US $580.56 |
||
|
23108
|
23108
23108-05E16 ROTOR ASSY8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23108-05E16 |
US $448.87 |
||
|
23118
|
23118
23118-05E16 COVER ASSY-FRONT8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23118-05E16 |
US $178.56 |
||
|
23118
|
23118
23118-W1705 Cover Assy-Front8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23118-W1705 |
US $156.96 |
||
|
23118
|
23118
23115-A5510 Screw8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23115-A5510 |
US $2.16 |
||
|
23120M
|
23120M
23120-61502 Bearing-Ball8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23120-61502 |
US $23.18 |
||
|
23120M
|
23120M
23120-V5510 Bearing-Ball8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23120-V5510 |
US $25.49 |
||
|
23120N
|
23120N
23120-U0510
Bearing-Ball
8508--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23120-U0510 |
— | ||
|
23120N
|
23120N
23120-W7110 Bearing-Ball8310--01 ~ 8508--01; LD20; ﾐﾂﾋﾞｼ |
23120-W7110 |
US $18.72 |
||
|
23120N
|
23120N
23129-05E06 BEARING-BALL8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23129-05E06 |
US $45.79 |
||
|
23127
|
23127
23127-05E06 COVER ASSY-REAR8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23127-05E06 |
US $982.70 |
||
|
23127
|
23127
23127-05E16 COVER ASSY-REAR8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23127-05E16 |
US $982.70 |
||
|
23127
|
23127
23131-U0510 Bolt-Through8310--01 ~ 8508--01; LD20; ﾐﾂﾋﾞｼ |
23131-U0510 |
US $7.20 |
||
|
23127
|
23127
23131-U0515 Bolt-Through8508--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23131-U0515 |
US $7.78 |
||
|
23127
|
23127
23131-W1700 Bolt-Through8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-U0510 Bolt-Through8310--01 ~ 8508--01; LD20; ﾐﾂﾋﾞｼ |
23131-U0510 |
US $7.20 |
||
|
23127A
|
23127A
23131-U0515 Bolt-Through8508--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23131-U0515 |
US $7.78 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23133
|
23133
23135-V6600 Holder Assy-Brush8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23135-V6600 |
US $54.72 |
||
|
23135
|
23135
23135-W1710 Brush Assy8310--01 ~ 8508--01; LD20; ﾐﾂﾋﾞｼ |
23135-W1710 |
US $5.18 |
||
|
23135
|
23135
23135-W7110 Brush Assy8508--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23135-W7110 |
US $7.63 |
||
|
23135
|
23135
23142-V6600 Brush Assy8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23142-V6600 |
US $8.93 |
||
|
23150
|
23150
23150-05E16 PULLEY ASSY8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23150-05E16 |
US $43.34 |
||
|
23150
|
23150
23150-W1707 Pulley Assy8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23150-W1707 |
US $60.19 |
||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150
|
23150
23153-U0110 Nut Assy-Pulley8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23153-U0110 |
US $1.73 |
||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-U0110 Nut Assy-Pulley8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23153-U0110 |
US $1.73 |
||
|
23156N
|
23156N
23156-05E16 TERMINAL ASSY-B8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23156-05E16 |
US $1.73 |
||
|
23156N
|
23156N
23156-16A00 Screw-Holder Set8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23156-16A00 |
US $20.59 |
||
|
23158
|
23158
23528-05E06 TERMINAL ASSY-E8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23528-05E06 |
US $294.53 |
||
|
23158
|
23158
23158-05E16 TERMINAL8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23158-05E16 |
US $18.72 |
||
|
23158
|
23158
23611-05E06 TERMINAL8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23611-05E06 |
US $20.88 |
||
|
23158M
|
23158M
23158-05E16 TERMINAL8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23158-05E16 |
US $18.72 |
||
|
23158M
|
23158M
23611-05E06 TERMINAL8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23611-05E06 |
US $20.88 |
||
|
23183
|
23183
23183-05E06
COVER-REAR
8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23183-05E06 |
— | ||
|
23200
|
23200
23200-05E06 SCREW SET8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23200-05E06 |
US $6.05 |
||
|
23200
|
23200
23200-05E16 SCREW SET8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23200-05E16 |
US $6.05 |
||
|
23200
|
23200
23200-05E06 SCREW SET8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23200-05E06 |
US $6.05 |
||
|
23200
|
23200
23200-05E16 SCREW SET8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23200-05E16 |
US $6.05 |
||
|
23215
|
23215
23215-05E16 REGULATOR ASSY-IC8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23215-05E16 |
US $321.43 |
||
|
23215
|
23215
23215-W1701 Regulator-Ic8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23215-W1701 |
US $200.16 |
||
|
23230
|
23230
23124-05E16 DIODE ASSY8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
23124-05E16 |
US $273.60 |
||
|
23230
|
23230
23232-V6000 Diode Assy8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
23232-V6000 |
US $250.56 |
||
|
23245
|
23245
23245P3005 Diode Assy-Plus8310--01 ~ ; LD20; ﾋﾀﾁ |
23245P3005 |
US $13.82 |
