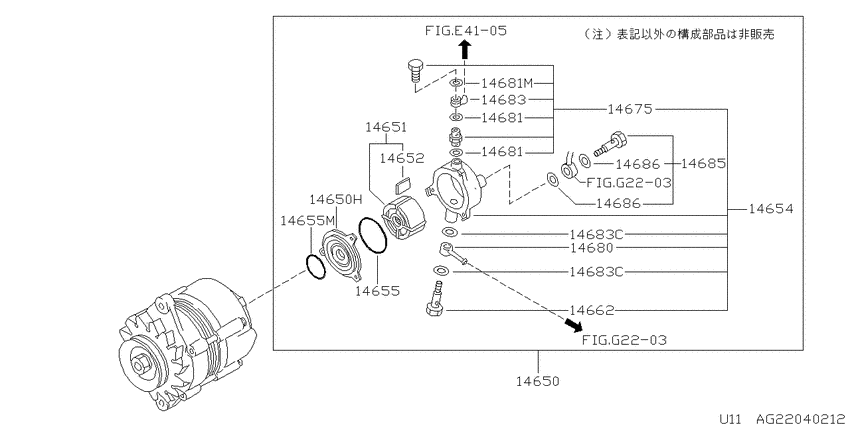

Alternator (1983-10-01 ~ ; "日立60A バキューム ポンプ構成; LD20) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- AT
- grade
- SLXG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14650
|
14650
14650-05E06 PUMP ASSY-VACUUM8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14650-05E06 |
US $842.52 |
||
|
14650
|
14650
14650-05E16 PUMP ASSY-VACUUM8310--01 ~ 8402--01; LD20; ﾐﾂﾋﾞｼ |
14650-05E16 |
US $778.80 |
||
|
14650
|
14650
14650-05E17 PUMP ASSY-VACUUM8402--01 ~ 8508--01; LD20; ﾐﾂﾋﾞｼ |
14650-05E17 |
US $842.52 |
||
|
14650
|
14650
14650-05E18 PUMP ASSY-VACUUM8508--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14650-05E18 |
US $831.19 |
||
|
14650
|
14650
14660-V1900 Cover Assy8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14660-V1900 |
US $191.52 |
||
|
14650H
|
14650H
14660-V1900 Cover Assy8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14660-V1900 |
US $191.52 |
||
|
14651
|
14651
14651-05E16 Rotor8310--01 ~ 8701--01; LD20; ﾐﾂﾋﾞｼ |
14651-05E16 |
US $331.34 |
||
|
14651
|
14651
14651-05E17 Rotor8701--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14651-05E17 |
US $331.34 |
||
|
14651
|
14651
14651-V1900 Rotor8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14651-V1900 |
US $181.44 |
||
|
14652
|
14652
14652-05E16 VANE8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14652-05E16 |
US $45.79 |
||
|
14652
|
14652
14652-W1700 Vane8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14652-W1700 |
US $17.28 |
||
|
14654
|
14654
14677-05E06
HOUSING ASSY
8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14677-05E06 |
— | ||
|
14654
|
14654
14677-05E16
HOUSING ASSY
8310--01 ~ 8402--01; LD20; ﾐﾂﾋﾞｼ |
14677-05E16 |
— | ||
|
14654
|
14654
14677-05E17 HOUSING ASSY8402--01 ~ 8508--01; LD20; ﾐﾂﾋﾞｼ |
14677-05E17 |
US $291.70 |
||
|
14654
|
14654
14677-05E18 HOUSING ASSY8508--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14677-05E18 |
US $291.70 |
||
|
14655
|
14655
14688-61502 Seal-O Ring8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14688-61502 |
US $7.06 |
||
|
14655
|
14655
14688-W1710 Seal-O Ring8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14688-W1710 |
US $9.07 |
||
|
14655
|
14655
14688-05E16 SEAL-O RING8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14688-05E16 |
US $13.68 |
||
|
14655
|
14655
14688-61503 Seal-O Ring8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14688-61503 |
from US $8.01 |
||
|
14655M
|
14655M
14688-05E16 SEAL-O RING8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14688-05E16 |
US $13.68 |
||
|
14655M
|
14655M
14688-61503 Seal-O Ring8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14688-61503 |
from US $8.01 |
||
|
14662
|
14662
14683-61503 Connector8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14683-61503 |
US $19.87 |
||
|
14662
|
14662
14684-05E16 BOLT8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14684-05E16 |
US $33.12 |
||
|
14675
|
14675
14675-05E06 BOLT ASSY-CONNECTOR8310--01 ~ 8508--01; LD20; ﾋﾀﾁ ｵ-ﾄｼｽﾃﾑｽﾞ |
14675-05E06 |
US $76.18 |
||
|
14675
|
14675
14675-05E16
BOLT ASSY-CONNECTOR
8310--01 ~ 8402--01; LD20; ﾐﾂﾋﾞｼ |
14675-05E16 |
— | ||
|
14675
|
14675
14675-05E17 BOLT ASSY-CONNECTOR8402--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14675-05E17 |
US $93.89 |
||
|
14680
|
14680
14680-16A00 Connector8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14680-16A00 |
US $27.79 |
||
|
14681
|
14681
14681-61502 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14681-61502 |
US $5.76 |
||
|
14681
|
14681
14681-61503 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14681-61503 |
US $5.47 |
||
|
14681
|
14681
14681-61502 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14681-61502 |
US $5.76 |
||
|
14681
|
14681
14681-61503 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14681-61503 |
US $5.47 |
||
|
14681M
|
14681M
14681-61503 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14681-61503 |
US $5.47 |
||
|
14683
|
14683
14680-05E06 CONNECTOR8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14680-05E06 |
US $39.46 |
||
|
14683
|
14683
14683-05E16 CONNECTOR8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14683-05E16 |
US $31.54 |
||
|
14683
|
14683
14684-61503 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14684-61503 |
US $2.45 |
||
|
14683C
|
14683C
14684-61503 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14684-61503 |
US $2.45 |
||
|
14683C
|
14683C
14684-61503 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14684-61503 |
US $2.45 |
||
|
14685
|
14685
14685-05E06 BOLT-EYE8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14685-05E06 |
US $15.26 |
||
|
14685
|
14685
14685-05E16 BOLT-EYE8310--01 ~ 8709--01; LD20; ﾐﾂﾋﾞｼ |
14685-05E16 |
US $37.15 |
||
|
14686
|
14686
14686-61501 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14686-61501 |
US $4.46 |
||
|
14686
|
14686
14686-61501 Packing8310--01 ~ 8508--01; LD20; ﾋﾀﾁ |
14686-61501 |
US $4.46 |
