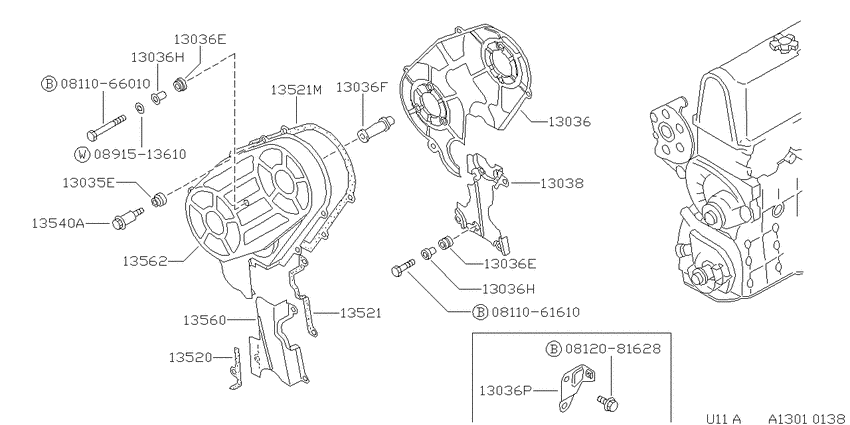

front cover (1983-10-01 ~ 1985-08-01; LD20) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- AT
- grade
- SLXG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061610
|
0811061610
08110-61610
Bolt-hexagon
|
08110-61610 |
— | ||
|
0811066010
|
0811066010
08110-66010
Bolt-hexagon
|
08110-66010 |
— | ||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
13035E
|
13035E
13524-05E00 WASHER8310--01 ~ 8709--01; LD20 |
13524-05E00 |
US $3.31 |
||
|
13036
|
13036
13564-05E00 COVER-FRONT8310--01 ~ 8508--01; LD20 |
13564-05E00 |
US $61.78 |
||
|
13036
|
13036
13570-05E00 COVER-FRONT8508--01 ~ 8606--01; LD20 |
13570-05E00 |
US $65.66 |
||
|
13036
|
13036
13570-05E01 COVER-FRONT8606--01 ~ 8709--01; LD20 |
13570-05E01 |
US $50.54 |
||
|
13036
|
13036
1352516A01 Grommet-Front Cover8310--01 ~ 8709--01; LD20 |
1352516A01 |
US $3.35 |
||
|
13036
|
13036
13526-G5500 Collar-Front Cover Grommet8310--01 ~ 8709--01; LD20 |
13526-G5500 |
US $9.36 |
||
|
13036
|
13036
13526-16A01 Collar-Front Cover Grommet8310--01 ~ 8709--01; LD20 |
13526-16A01 |
US $1.74 |
||
|
13036
|
13036
13568-05E00 BRACKET-FRONT COVER8310--01 ~ 8709--01; LD20 |
13568-05E00 |
US $8.64 |
||
|
13036E
|
13036E
1352516A01 Grommet-Front Cover8310--01 ~ 8709--01; LD20 |
1352516A01 |
US $3.35 |
||
|
13036E
|
13036E
1352516A01 Grommet-Front Cover8310--01 ~ 8709--01; LD20 |
1352516A01 |
US $3.35 |
||
|
13036F
|
13036F
13526-G5500 Collar-Front Cover Grommet8310--01 ~ 8709--01; LD20 |
13526-G5500 |
US $9.36 |
||
|
13036H
|
13036H
13526-16A01 Collar-Front Cover Grommet8310--01 ~ 8709--01; LD20 |
13526-16A01 |
US $1.74 |
||
|
13036H
|
13036H
13526-16A01 Collar-Front Cover Grommet8310--01 ~ 8709--01; LD20 |
13526-16A01 |
US $1.74 |
||
|
13036P
|
13036P
13568-05E00 BRACKET-FRONT COVER8310--01 ~ 8709--01; LD20 |
13568-05E00 |
US $8.64 |
||
|
13038
|
13038
13565-05E00 COVER-FRONT8310--01 ~ 8508--01; LD20 |
13565-05E00 |
US $8.93 |
||
|
13038
|
13038
13580-05E00 COVER-FRONT8508--01 ~ 8606--01; LD20 |
13580-05E00 |
US $78.62 |
||
|
13038
|
13038
13580-05E01 COVER-FRONT8606--01 ~ 8709--01; LD20 |
13580-05E01 |
US $60.19 |
||
|
13520
|
13520
13522-05E00 GASKET-FRONT COVER,RH8310--01 ~ 8508--01; LD20 |
13522-05E00 |
US $7.63 |
||
|
13521
|
13521
13521-05E00 GASKET-FRONT COVER,LH8310--01 ~ 8508--01; LD20 |
13521-05E00 |
US $6.34 |
||
|
13521
|
13521
13520-05E00 GASKET-DUST COVER,UPPER8310--01 ~ 8508--01; LD20 |
13520-05E00 |
US $38.30 |
||
|
13521M
|
13521M
13520-05E00 GASKET-DUST COVER,UPPER8310--01 ~ 8508--01; LD20 |
13520-05E00 |
US $38.30 |
||
|
13540A
|
13540A
13505-D0100 Bolt-Front Cover8310--01 ~ 8709--01; LD20 |
13505-D0100 |
US $3.06 |
||
|
13560
|
13560
13560-05E10 COVER ASSY-DUST,LOWER8508--01 ~ 8606--01; LD20; ｴｷﾀｲ ｶﾞｽｹﾂﾄ ﾂｷ |
13560-05E10 |
US $125.42 |
||
|
13560
|
13560
13560-05E11 COVER ASSY-DUST,LOWER8606--01 ~ 8709--01; LD20 |
13560-05E11 |
US $60.19 |
||
|
13560
|
13560
13563-05E00 COVER ASSY-DUST,LOWER8310--01 ~ 8508--01; LD20 |
13563-05E00 |
US $17.57 |
||
|
13562
|
13562
13561-05E00 COVER ASSY-DUST,UPPER8310--01 ~ 8508--01; LD20 |
13561-05E00 |
US $37.73 |
||
|
13562
|
13562
13562-05E10
COVER ASSY-DUST,UPPER
8508--01 ~ 8606--01; LD20; ｴｷﾀｲ ｶﾞｽｹﾂﾄ ﾂｷ |
13562-05E10 |
— | ||
|
13562
|
13562
13562-05E12 COVER ASSY-DUST,UPPER8606--01 ~ 8709--01; LD20 |
13562-05E12 |
US $33.12 |
||
