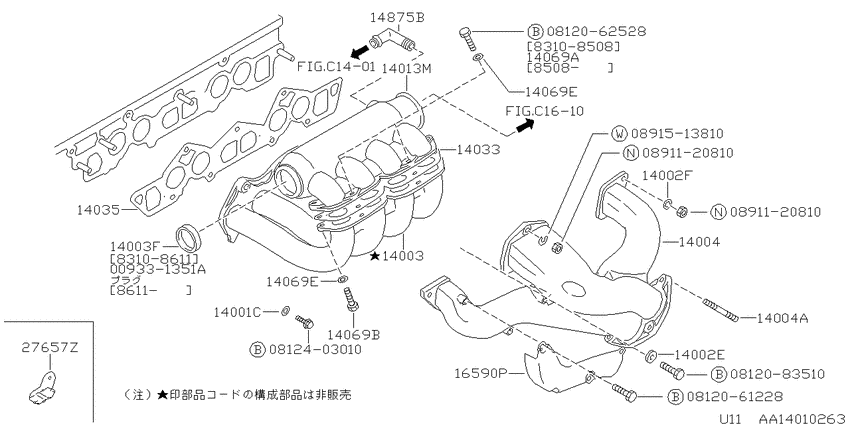

Manifold (1983-10-01 ~ ; LD20) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- AT
- grade
- SLXG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331351A
|
009331351A
009331351A Plug-Welch |
009331351A |
US $3.06 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812083510
|
0812083510
08120-83510
Bolt-hexagon
|
08120-83510 |
— | ||
|
0812403010
|
0812403010
08124-03010
Bolt-hexagon
|
08124-03010 |
— | ||
|
0891120810
|
0891120810
08911-20810
Nut
|
08911-20810 |
— | ||
| replacement | |||||
|
0891120810
|
0891120810
089112082A NUT |
089112082A |
US $2.21 |
||
|
0891120810
|
0891120810
08911-20810
Nut
|
08911-20810 |
— | ||
| replacement | |||||
|
0891120810
|
0891120810
089112082A NUT |
089112082A |
US $2.21 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
14001C
|
14001C
1105821001 Washer-Plain8310--01 ~ 8709--01; LD20 |
1105821001 |
US $2.78 |
||
|
14002E
|
14002E
14037N3600 Yoke-Manifold8310--01 ~ 8709--01; LD20 |
14037N3600 |
US $1.74 |
||
|
14002F
|
14002F
14037-W4800 Washer-Plain8508--01 ~ 8709--01; LD20 |
14037-W4800 |
US $2.45 |
||
|
14003
|
14003
14003-05E00 MANIFOLD-INTAKE8310--01 ~ 8508--01; LD20 |
14003-05E00 |
US $358.25 |
||
|
14003
|
14003
14003-G5500 Manifold-Intake8508--01 ~ 8709--01; LD20 |
14003-G5500 |
US $187.20 |
||
|
14003
|
14003
11021-E3000 Plug-Welch8310--01 ~ 8611--01; LD20 |
11021-E3000 |
from US $1.09 |
||
|
14003F
|
14003F
11021-E3000 Plug-Welch8310--01 ~ 8611--01; LD20 |
11021-E3000 |
from US $1.09 |
||
|
14004
|
14004
14004-05E00 MANIFOLD-EXHAUST8310--01 ~ 8709--01; LD20 |
14004-05E00 |
US $412.06 |
||
|
14004
|
14004
14064N4200 Stud8310--01 ~ 8709--01; LD20 |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
14004
|
14004
14064-N420A Stud8310--01 ~ 8709--01; LD20 |
14064-N420A |
from US $2.24 |
||
|
14004A
|
14004A
14064N4200 Stud8310--01 ~ 8709--01; LD20 |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
14004A
|
14004A
14064-N420A Stud8310--01 ~ 8709--01; LD20 |
14064-N420A |
from US $2.24 |
||
|
14013M
|
14013M
14005-05E00 COLLECTOR-INTAKE MANIFOLD8310--01 ~ 8508--01; LD20 |
14005-05E00 |
US $201.60 |
||
|
14013M
|
14013M
14005-05E10 COLLECTOR-INTAKE MANIFOLD8508--01 ~ 8709--01; LD20 |
14005-05E10 |
US $140.40 |
||
|
14033
|
14033
14033-05E00 GASKET-INTAKE MANIFOLD8310--01 ~ 8508--01; LD20 |
14033-05E00 |
US $5.33 |
||
|
14033
|
14033
14033-G5500 Gasket-Intake Manifold8508--01 ~ 8709--01; LD20 |
14033-G5500 |
US $15.26 |
||
|
14035
|
14035
14035-W1701 Gasket-Manifold8310--01 ~ 8709--01; LD20 |
14035-W1701 |
from US $13.99 |
||
|
14069A
|
14069A
14031-V7200 Bolt8508--01 ~ 8709--01; LD20 |
14031-V7200 |
US $3.46 |
||
|
14069B
|
14069B
01121-01791
BOLT
8310--01 ~ 8508--01; LD20 |
01121-01791 |
— | ||
|
14069B
|
14069B
14031-05E00 BOLT8508--01 ~ 8709--01; LD20 |
14031-05E00 |
US $3.46 |
||
|
14069E
|
14069E
14030-V7200 Washer-Plain8508--01 ~ 8709--01; LD20 |
14030-V7200 |
US $4.03 |
||
|
14069E
|
14069E
14030-V7200 Washer-Plain8508--01 ~ 8709--01; LD20 |
14030-V7200 |
US $4.03 |
||
|
14875B
|
14875B
13267-23000 Connector-Breather Tube8310--01 ~ 8709--01; LD20 |
13267-23000 |
US $9.79 |
||
|
16590P
|
16590P
16590-05E01
COVER-EXHAUST MANIFOLD
8310--01 ~ 8508--01; LD20 |
16590-05E01 |
— | ||
|
16590P
|
16590P
16590-G5500 Cover-Exhaust Manifold8508--01 ~ 8709--01; LD20 |
16590-G5500 |
US $57.02 |
||
