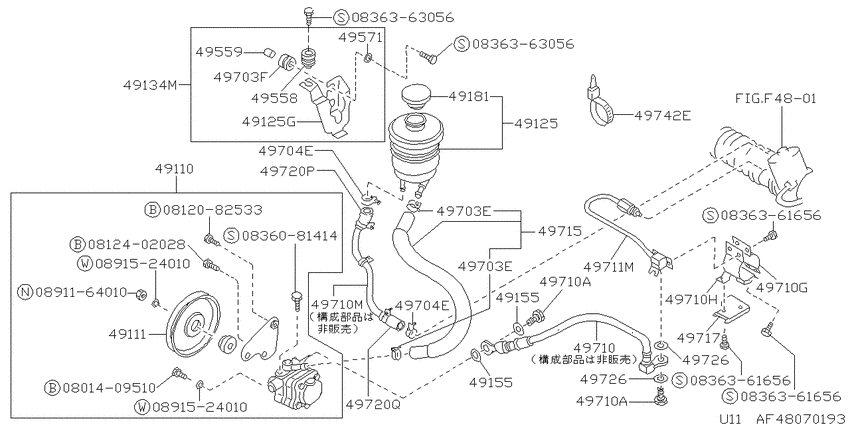

power steering control (1983-10-01 ~ 1985-08-01; パイピング部品; LD20) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- AT
- grade
- SLXG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0801409510
|
0801409510
08014-09510
Bolt-hexagon
|
08014-09510 |
— | ||
|
0812082533
|
0812082533
08120-82533
Bolt-hexagon
|
08120-82533 |
— | ||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
0836081414
|
0836081414
08360-81414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81414 |
— | ||
|
0836361656
|
0836361656
08363-61656
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61656 |
— | ||
|
0836361656
|
0836361656
08363-61656
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61656 |
— | ||
|
0836361656
|
0836361656
08363-61656
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61656 |
— | ||
|
0836363056
|
0836363056
08363-63056
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-63056 |
— | ||
|
0836363056
|
0836363056
08363-63056
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-63056 |
— | ||
|
0891164010
|
0891164010
08911-64010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64010 |
— | ||
| replacement | |||||
|
0891164010
|
0891164010
089116402A
NUTHEX
|
089116402A |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
49110
|
49110
49110-05E00 PUMP ASSY-POWER STEERING8310--01 ~ 8508--01; &LD20.SLXG *S.LD20.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49110-05E00 |
US $1,526 |
||
|
49110
|
49110
49110-05E10 PUMP ASSY-POWER STEERING8508--01 ~ 8709--01; S.LD20 |
49110-05E10 |
US $952.97 |
||
|
49110
|
49110
49128-04R86 Seal Kit-Power Steering Pump8508--01 ~ ; S.LD20 *V.LD20; ﾊﾟﾜｽﾃ ﾖｳ |
49128-04R86 |
US $13.39 |
||
| replacement | |||||
|
49110
|
49110
49128-04R88 Seal Kit-Power Steering Pump8508--01 ~ ; S.LD20 *V.LD20; ﾊﾟﾜｽﾃ ﾖｳ |
49128-04R88 |
US $11.09 |
||
|
49111
|
49111
49586-05E00 PULLEY-POWER STEERING PUMP8508--01 ~ 8709--01; S.LD20 *V.LD20; ﾊﾟﾜｽﾃ ﾖｳ |
49586-05E00 |
US $40.75 |
||
|
49125
|
49125
49115-03E02 TANK ASSY-RESERVOIR8508--01 ~ 8810--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
49115-03E02 |
US $154.08 |
||
|
49125
|
49125
49116-03E01
BRACKET-RESERVOIR TANK
8411--01 ~ 8508--01; OSSSEX+SSSEXG S.LD20.SLXG CA20S+VG20T *CA18S *SSSE *SSSES; ﾊﾟﾜｽﾃ ﾖｳ |
49116-03E01 |
— | ||
|
49125G
|
49125G
49116-03E01
BRACKET-RESERVOIR TANK
8411--01 ~ 8508--01; OSSSEX+SSSEXG S.LD20.SLXG CA20S+VG20T *CA18S *SSSE *SSSES; ﾊﾟﾜｽﾃ ﾖｳ |
49116-03E01 |
— | ||
|
49134M
|
49134M
49116-03E00 BRACKET-ADJUST,POWER STEERING PUMP8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
49116-03E00 |
US $38.30 |
||
|
49181
|
49181
49181-03E00 CAP ASSY-PUMP8508--01 ~ 8810--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
49181-03E00 |
US $8.45 |
||
|
49558
|
49558
64840-H9200 Bush8508--01 ~ 8810--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
64840-H9200 |
US $5.33 |
||
|
49559
|
49559
49726-D0301 Washer-Lock8508--01 ~ 8810--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
49726-D0301 |
US $2.74 |
||
|
49571
|
49571
49726-D0301 Washer-Lock8508--01 ~ 8709--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
49726-D0301 |
US $2.74 |
||
|
49703E
|
49703E
01555-00241 CLIP8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20; D=23MM |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20; D=23MM |
0155500861 |
US $2.45 |
||
|
49703E
|
49703E
01555-00241 CLIP8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20; D=23MM |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20; D=23MM |
0155500861 |
US $2.45 |
||
|
49703F
|
49703F
18316S3260 Bush8508--01 ~ 8810--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
18316S3260 |
from US $3.39 |
||
|
49704E
|
49704E
01555-00101 CLAMP8310--01 ~ 8508--01; H(S+K).CA18#+S.LD20 CA16S.SLXG+W.SSS *CA16S.(L+LX) *W.LX+V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
01555-00101 |
US $2.45 |
||
| replacement | |||||
|
49704E
|
49704E
0155500811 CLAMP-HOSE8310--01 ~ 8508--01; H(S+K).CA18#+S.LD20 CA16S.SLXG+W.SSS *CA16S.(L+LX) *W.LX+V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
0155500811 |
from US $3.03 |
||
|
49704E
|
49704E
01555-00211
CLAMP-HOSE
8508--01 ~ 8705--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20#; D=18 |
01555-00211 |
— | ||
| replacement | |||||
|
49704E
|
49704E
0155500811 CLAMP-HOSE8508--01 ~ 8705--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20#; D=18 |
0155500811 |
from US $3.03 |
||
|
49704E
|
49704E
0155500691 CLAMP8705--01 ~ ; ALL; D=18 |
0155500691 |
from US $2.11 |
||
|
49704E
|
49704E
01555-00101 CLAMP8310--01 ~ 8508--01; H(S+K).CA18#+S.LD20 CA16S.SLXG+W.SSS *CA16S.(L+LX) *W.LX+V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
01555-00101 |
US $2.45 |
||
| replacement | |||||
|
49704E
|
49704E
0155500811 CLAMP-HOSE8310--01 ~ 8508--01; H(S+K).CA18#+S.LD20 CA16S.SLXG+W.SSS *CA16S.(L+LX) *W.LX+V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
0155500811 |
from US $3.03 |
||
|
49704E
|
49704E
01555-00211
CLAMP-HOSE
8508--01 ~ 8705--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20#; D=18 |
01555-00211 |
— | ||
| replacement | |||||
|
49704E
|
49704E
0155500811 CLAMP-HOSE8508--01 ~ 8705--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20#; D=18 |
0155500811 |
from US $3.03 |
||
|
49704E
|
49704E
0155500691 CLAMP8705--01 ~ ; ALL; D=18 |
0155500691 |
from US $2.11 |
||
|
49710
|
49710
49720-D4010 Hose Assy-Pump8508--01 ~ 8709--01; LD20 |
49720-D4010 |
US $234.72 |
||
|
49710
|
49710
49722-05E00 HOSE ASSY-PUMP8310--01 ~ 8508--01; &LD20.SLXG *S.LD20.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49722-05E00 |
US $201.60 |
||
|
49710
|
49710
0161900011 BOLT8701--01 ~ ; *CA16S.(L+LX) +*W.LX +*LD20; ﾊﾟﾜｽﾃ ﾖｳ |
0161900011 |
from US $3.74 |
||
|
49710
|
49710
49590-R8200 Bolt-Connector8310--01 ~ 8508--01; &LD20.SLXG *S.LD20.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49590-R8200 |
US $13.39 |
||
|
49710
|
49710
49781-16E00 BRACKET-HOSE8508--01 ~ 8709--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
49781-16E00 |
US $11.38 |
||
|
49710
|
49710
49781-D4005 Bracket-Hose8606--01 ~ 8709--01; CS+K+W *CA16S.(L+LX) *W.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49781-D4005 |
US $7.34 |
||
|
49710
|
49710
49780-16E00 BRACKET-HOSE8508--01 ~ 8709--01; .(S+K).CA18#+ CA16S.SLXG+W.SSS S.LD20 |
49780-16E00 |
US $15.84 |
||
|
49710
|
49710
49780-D4005 Bracket-Hose8606--01 ~ 8709--01; S+K+W |
49780-D4005 |
US $10.08 |
||
|
49710
|
49710
49726-01E01 HOSE-TUBE TO PUMP8508--01 ~ 8606--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
49726-01E01 |
US $66.38 |
||
|
49710A
|
49710A
0161900011 BOLT8701--01 ~ ; *CA16S.(L+LX) +*W.LX +*LD20; ﾊﾟﾜｽﾃ ﾖｳ |
0161900011 |
from US $3.74 |
||
|
49710A
|
49710A
49590-R8200 Bolt-Connector8310--01 ~ 8508--01; &LD20.SLXG *S.LD20.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49590-R8200 |
US $13.39 |
||
|
49710A
|
49710A
0161900011 BOLT8701--01 ~ ; *CA16S.(L+LX) +*W.LX +*LD20; ﾊﾟﾜｽﾃ ﾖｳ |
0161900011 |
from US $3.74 |
||
|
49710A
|
49710A
49590-R8200 Bolt-Connector8310--01 ~ 8508--01; &LD20.SLXG *S.LD20.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49590-R8200 |
US $13.39 |
||
|
49710G
|
49710G
49781-16E00 BRACKET-HOSE8508--01 ~ 8709--01; A(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 VG20# |
49781-16E00 |
US $11.38 |
||
|
49710G
|
49710G
49781-D4005 Bracket-Hose8606--01 ~ 8709--01; CS+K+W *CA16S.(L+LX) *W.LX *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49781-D4005 |
US $7.34 |
||
|
49710H
|
49710H
49780-16E00 BRACKET-HOSE8508--01 ~ 8709--01; .(S+K).CA18#+ CA16S.SLXG+W.SSS S.LD20 |
49780-16E00 |
US $15.84 |
||
|
49710H
|
49710H
49780-D4005 Bracket-Hose8606--01 ~ 8709--01; S+K+W |
49780-D4005 |
US $10.08 |
||
|
49710M
|
49710M
49726-01E01 HOSE-TUBE TO PUMP8508--01 ~ 8606--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
49726-01E01 |
US $66.38 |
||
|
49711M
|
49711M
49713-D4005 Tube-Power Steering Hose8508--01 ~ 8602--01; (S+K).CA18DT S.LD20 |
49713-D4005 |
US $38.74 |
||
|
49715
|
49715
49723-05E01 HOSE-PUMP TO RESERVOIR TANK8508--01 ~ 8709--01; S.LD20 *V.LD20; *=ﾊﾟﾜｽﾃ ﾖｳ |
49723-05E01 |
US $37.87 |
||
|
49717
|
49717
49788-01E02 PLATE ASSY-POWER STEERING8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
49788-01E02 |
US $6.19 |
||
|
49720P
|
49720P
4972101E01 HOSE-RETURN,POWER STEERING8310--01 ~ 8709--01; B(S+K).CA18E# S.CA16S.SLXG W.SSS S.LD20 |
4972101E01 |
US $15.66 |
||
|
49720Q
|
49720Q
4972101E02 HOSE ASSY-RETURN POWER STEERING8310--01 ~ 8709--01; B(S+K).CA18E#-K.CA18ET.SSSXG S.CA16S.SLXG+W.SSS S.LD20 |
4972101E02 |
US $23.18 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
49726Y0100 |
from US $1.72 |
||
|
49742E
|
49742E
01552-00411
CLAMP-HOSE
8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
01552-00411 |
— | ||
| replacement | |||||
|
49742E
|
49742E
2421610Y80 Clamp8508--01 ~ 8709--01; .(S+K).CA18# CA16S.SLXG+W.SSS S.LD20 |
2421610Y80 |
from US $4.42 |
||
