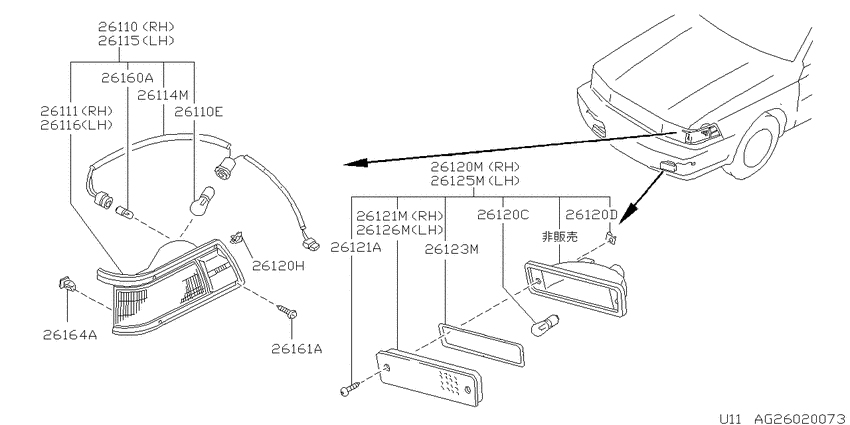

Front combination lamp (1984-10-01 ~ ; K.VG20ET) Diagram Nissan BLUEBIRD
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- VG20T
- transmission
- AT
- grade
- MAXIMAXR
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26110
|
26110
26110-26E10 LAMP ASSY-SIDE COMBINATION,RH8410--01 ~ 8601--01; K.VG20ET.XR; [B113] |
26110-26E10 |
US $195.84 |
||
|
26110
|
26110
B6110-28E65 Lamp Assy-Side Combination, Rh8601--01 ~ ; K.VG20ET.XR; [B113] |
B6110-28E65 |
US $180 |
||
|
26110
|
26110
AY08000023
Bulb
8410--01 ~ ; K.VG20ET; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26110
|
26110
AY080-00087 Bulb (12V 21W)8410--01 ~ ; K.VG20ET; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26110E
|
26110E
AY08000023
Bulb
8410--01 ~ ; K.VG20ET; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26110E
|
26110E
AY080-00087 Bulb (12V 21W)8410--01 ~ ; K.VG20ET; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26111
|
26111
26114-26E10 LENS-SIDE COMBINATION,RH8410--01 ~ 8601--01; K.VG20ET.XR; [B113] |
26114-26E10 |
US $224.64 |
||
|
26111
|
26111
26114-28E65 LENS-SIDE COMBINATION,RH8601--01 ~ ; K.VG20ET.XR; [B113] |
26114-28E65 |
US $203.04 |
||
|
26114M
|
26114M
26241-26E00 SOCKET ASSY-SIDE COMBINATION LAMP8410--01 ~ 8601--01; S.VG20ET K.VG20ET; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ[B113] |
26241-26E00 |
US $25.34 |
||
|
26114M
|
26114M
26241-28E60 SOCKET ASSY-SIDE COMBINATION LAMP8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ[B113] |
26241-28E60 |
US $25.34 |
||
|
26115
|
26115
26115-26E10 LAMP ASSY-SIDE COMBINATION,LH8410--01 ~ 8601--01; K.VG20ET.XR; [B113] |
26115-26E10 |
US $195.84 |
||
|
26115
|
26115
B6115-28E65 Lamp Assy-Side Combination, Lh8601--01 ~ ; K.VG20ET.XR; [B113] |
B6115-28E65 |
US $180 |
||
|
26116
|
26116
26119-26E10 LENS-SIDE COMBINATION,LH8410--01 ~ 8601--01; K.VG20ET.XR; [B113] |
26119-26E10 |
US $224.64 |
||
|
26116
|
26116
26119-28E65 LENS-SIDE COMBINATION,LH8601--01 ~ ; K.VG20ET.XR; [B113] |
26119-28E65 |
US $203.04 |
||
|
26120C
|
26120C
AY08000023
Bulb
8310--01 ~ ; ALL; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26120C
|
26120C
AY080-00087 Bulb (12V 21W)8310--01 ~ ; ALL; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26120D
|
26120D
21477-C0500 Nut8410--01 ~ ; K.VG20ET; ｽﾌﾟﾘﾝｸﾞﾅﾂﾄ |
21477-C0500 |
US $1.73 |
||
|
26120H
|
26120H
26399-28E60 GROMMET8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET |
26399-28E60 |
US $2.02 |
||
|
26120M
|
26120M
26120-26E00 LAMP ASSY-TURN SIGNAL,FRONT RH8410--01 ~ ; K.VG20ET; [B113] |
26120-26E00 |
US $78.77 |
||
|
26121A
|
26121A
01451-00491 SCREW8410--01 ~ ; K.VG20ET |
01451-00491 |
US $1.73 |
||
|
26121M
|
26121M
26121-15E00 LENS-FRONT TURN SIGNAL,RH8410--01 ~ ; K.VG20ET; [B113] |
26121-15E00 |
US $31.39 |
||
|
26123M
|
26123M
26123-15E00 PACKING-LENS,RH8410--01 ~ ; K.VG20ET; ﾐｷﾞ[B113] |
26123-15E00 |
US $10.37 |
||
|
26123M
|
26123M
26128-15E00 PACKING-LENS,RH8410--01 ~ ; K.VG20ET; ﾋﾀﾞﾘ[B113] |
26128-15E00 |
US $10.37 |
||
|
26125M
|
26125M
26125-26E00 LAMP ASSY-TURN SIGNAL,FRONT LH8410--01 ~ ; K.VG20ET; [B113] |
26125-26E00 |
US $78.77 |
||
|
26126M
|
26126M
26126-15E00 LENS-FRONT TURN SIGNAL,LH8410--01 ~ ; K.VG20ET; [B113] |
26126-15E00 |
US $31.39 |
||
|
26160A
|
26160A
AY08000062
Bulb
8310--01 ~ ; S+K+W; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26160A
|
26160A
AY080-00090 BULB LICENCE_AS8310--01 ~ ; S+K+W; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26161A
|
26161A
01451-00051 SCREW8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET |
01451-00051 |
US $2.36 |
||
|
26161A
|
26161A
01451-00461 SCREW8410--01 ~ 8601--01; S.VG20ET K.VG20ET |
01451-00461 |
US $1.73 |
||
|
26164A
|
26164A
96706B0700 Nut8410--01 ~ ; K.VG20ET |
96706B0700 |
US $1.93 |
||
