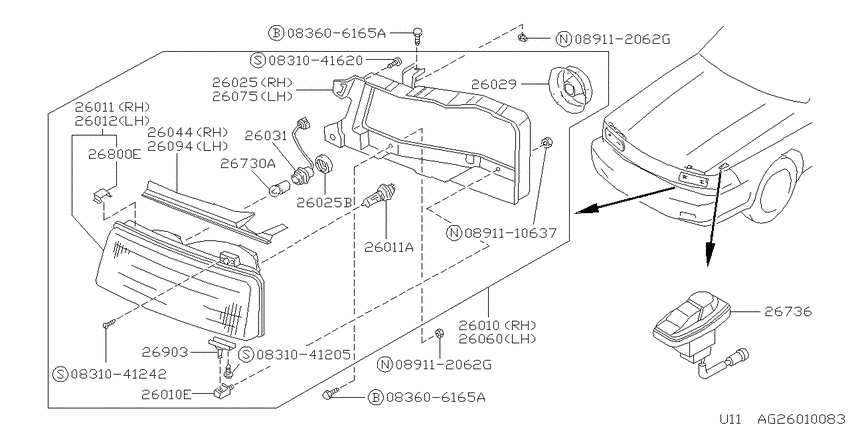

Head lamp (1986-01-01 ~ ; MAXIMA#) Diagram Nissan BLUEBIRD
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- VG20T
- transmission
- AT
- grade
- MAXIMAXR
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831041242
|
0831041242
08310-41242
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-41242 |
— | ||
|
0831041620
|
0831041620
08310-41620
New Genuine Part
|
08310-41620 |
— | ||
|
083606165A
|
083606165A
08360-6165A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6165A |
— | ||
|
083606165A
|
083606165A
08360-6165A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6165A |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.65 |
||
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.65 |
||
|
26010
|
26010
26010-26E00 LAMP ASSY-RH8410--01 ~ 8601--01; S.VG20ET K.VG20ET; [B113] |
26010-26E00 |
US $611.71 |
||
|
26010
|
26010
B6010-28E65 Lamp Assy-Rh8601--01 ~ ; K.VG20ET.XR; [B113] |
B6010-28E65 |
US $557.90 |
||
|
26010
|
26010
26072-15E10 RETAINER8410--01 ~ ; K.VG20ET; [B113] |
26072-15E10 |
US $7.06 |
||
|
26010E
|
26010E
26072-15E10 RETAINER8410--01 ~ ; K.VG20ET; [B113] |
26072-15E10 |
US $7.06 |
||
|
26011
|
26011
26015-26E00 HEAD LAMP UNIT8410--01 ~ 8601--01; S.VG20ET K.VG20ET; [B113] |
26015-26E00 |
US $277.92 |
||
|
26011
|
26011
26015-28E60 HEAD LAMP UNIT8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET; [B113] |
26015-28E60 |
US $392.23 |
||
|
26011
|
26011
AY08010003 Bulb8410--01 ~ ; K.VG20ET; 12V-60/55W |
AY08010003 |
US $16.67 |
||
|
26011A
|
26011A
AY08010003 Bulb8410--01 ~ ; K.VG20ET; 12V-60/55W |
AY08010003 |
US $16.67 |
||
|
26012
|
26012
26065-26E00 HEAD LAMP UNIT8410--01 ~ 8601--01; S.VG20ET K.VG20ET; [B113] |
26065-26E00 |
US $277.92 |
||
|
26012
|
26012
26065-28E60 HEAD LAMP UNIT8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET; [B113] |
26065-28E60 |
US $392.23 |
||
|
26025
|
26025
26025-15E10 HOUSING ASSY-HEAD LAMP,RH8410--01 ~ 8601--01; S.VG20ET K.VG20ET; [B113] |
26025-15E10 |
US $148.32 |
||
|
26025
|
26025
26025-28E60 HOUSING ASSY-HEAD LAMP,RH8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET; [B113] |
26025-28E60 |
US $109.44 |
||
|
26025
|
26025
26029-15E11 Holder-Head Lamp8410--01 ~ ; K.VG20ET; [B113] |
26029-15E11 |
US $7.06 |
||
|
26025B
|
26025B
26029-15E11 Holder-Head Lamp8410--01 ~ ; K.VG20ET; [B113] |
26029-15E11 |
US $7.06 |
||
|
26029
|
26029
26029-26E00 Holder-Head Lamp8410--01 ~ ; K.VG20ET; [B113] |
26029-26E00 |
US $13.25 |
||
|
26031
|
26031
26050-15E10 CABLE ASSY-HEAD LAMP8410--01 ~ ; K.VG20ET; [B113] |
26050-15E10 |
US $32.98 |
||
|
26044
|
26044
26044-28E65 MOULDING-HEAD LAMP,RH8601--01 ~ ; K.VG20ET.XR; [B113] |
26044-28E65 |
US $34.99 |
||
|
26060
|
26060
26060-26E00 LAMP ASSY-LH8410--01 ~ 8601--01; S.VG20ET K.VG20ET; [B113] |
26060-26E00 |
US $611.71 |
||
|
26060
|
26060
B6060-28E65 Lamp Assy-Lh8601--01 ~ ; K.VG20ET.XR; [B113] |
B6060-28E65 |
US $557.90 |
||
|
26075
|
26075
26075-15E10 HOUSING ASSY-HEAD LAMP,LH8410--01 ~ 8601--01; S.VG20ET K.VG20ET; [B113] |
26075-15E10 |
US $148.32 |
||
|
26075
|
26075
26075-28E60 HOUSING ASSY-HEAD LAMP,LH8601--01 ~ ; 0S.VG20E K.VG20E K.VG20ET; [B113] |
26075-28E60 |
US $109.44 |
||
|
26094
|
26094
26094-28E65 MOULDING-HEAD LAMP,LH8601--01 ~ ; K.VG20ET.XR; [B113] |
26094-28E65 |
US $34.99 |
||
|
26730A
|
26730A
26715-89902 Bulb8410--01 ~ ; K.VG20ET; 12V-8W[B113] |
26715-89902 |
US $2.16 |
||
|
26736
|
26736
26730-26E00 INDICATOR-MONITOR,HEAD LAMP8410--01 ~ ; K.VG20ET; ﾐｷﾞ[B113] |
26730-26E00 |
US $46.80 |
||
|
26736
|
26736
26735-26E00 INDICATOR-MONITOR,HEAD LAMP8410--01 ~ ; K.VG20ET; ﾋﾀﾞﾘ[B113] |
26735-26E00 |
US $46.80 |
||
|
26800E
|
26800E
26398-28E60
CLIP-BLIND
8508--01 ~ ; S+K+W; ｱｴﾝ ﾒﾂｷ(ｷｲﾛ) |
26398-28E60 |
— | ||
|
26903
|
26903
26040-15E10 BRACKET-LAMP8410--01 ~ ; K.VG20ET; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ[B113] |
26040-15E10 |
US $11.81 |
