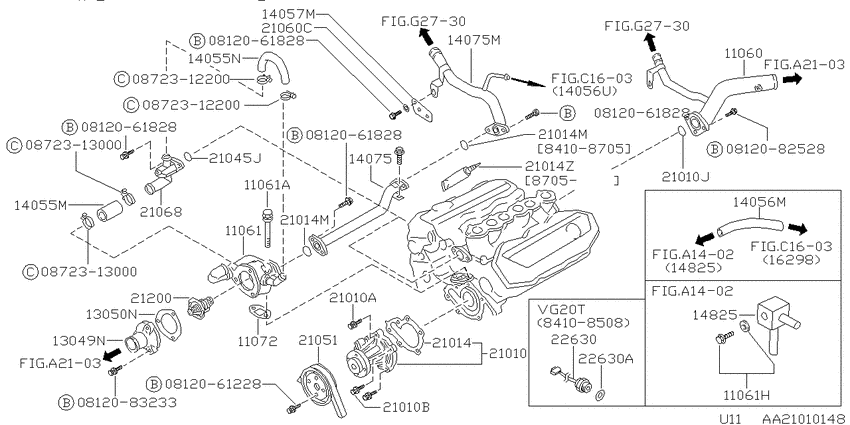

water pump & ｻ-ﾓｽﾀﾂﾄ (1984-10-01 ~ 1986-01-01; VG20ET) Diagram Nissan BLUEBIRD
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- VG20T
- transmission
- AT
- grade
- MAXIMAXR
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812061828
|
0812061828
08120-61828
Bolt-hexagon
|
08120-61828 |
— | ||
|
0812082528
|
0812082528
08120-82528
Bolt-hexagon
|
08120-82528 |
— | ||
| replacement | |||||
|
0812082528
|
0812082528
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0812083233
|
0812083233
08120-83233
Bolt-hexagon
|
08120-83233 |
— | ||
|
0872312200
|
0872312200
08723-12200
CLAMP-HOSE
|
08723-12200 |
— | ||
| replacement | |||||
|
0872312200
|
0872312200
0155500851 CLAMP |
0155500851 |
from US $2.98 |
||
|
0872312200
|
0872312200
08723-12200
CLAMP-HOSE
|
08723-12200 |
— | ||
| replacement | |||||
|
0872312200
|
0872312200
0155500851 CLAMP |
0155500851 |
from US $2.98 |
||
|
0872313000
|
0872313000
08723-13000 CLAMP-HOSE |
08723-13000 |
US $2.45 |
||
| replacement | |||||
|
0872313000
|
0872313000
0155500243 CLIP |
0155500243 |
US $2.45 |
||
|
0872313000
|
0872313000
08723-13000 CLAMP-HOSE |
08723-13000 |
US $2.45 |
||
| replacement | |||||
|
0872313000
|
0872313000
0155500243 CLIP |
0155500243 |
US $2.45 |
||
|
11060
|
11060
11060-26E03 OUTLET-WATER8410--01 ~ 8705--01; VG20# |
11060-26E03 |
US $123.55 |
||
|
11060
|
11060
11060-26E04 OUTLET-WATER8705--01 ~ ; VG20# |
11060-26E04 |
US $123.55 |
||
|
11061
|
11061
11061-26E00 HOUSING-THERMOSTAT8410--01 ~ ; VG20# |
11061-26E00 |
US $181.44 |
||
|
11061
|
11061
01121-01841 BOLT8410--01 ~ ; VG20# |
01121-01841 |
US $2.45 |
||
|
11061
|
11061
14053-42L00
Plug Assy-Air Relief
8601--01 ~ ; VG20# |
14053-42L00 |
— | ||
| replacement | |||||
|
11061
|
11061
1405342L0A Plug Assy-Air Relief8601--01 ~ ; VG20# |
1405342L0A |
US $3.89 |
||
|
11061A
|
11061A
01121-01841 BOLT8410--01 ~ ; VG20# |
01121-01841 |
US $2.45 |
||
|
11061H
|
11061H
14053-42L00
Plug Assy-Air Relief
8601--01 ~ ; VG20# |
14053-42L00 |
— | ||
| replacement | |||||
|
11061H
|
11061H
1405342L0A Plug Assy-Air Relief8601--01 ~ ; VG20# |
1405342L0A |
US $3.89 |
||
|
11072
|
11072
11072-V5001
Gasket-Thermostat Housing
8410--01 ~ ; VG20# |
11072-V5001 |
— | ||
| replacement | |||||
|
11072
|
11072
11072-V5010
Gasket-thermostat housing
8410--01 ~ ; VG20# |
11072-V5010 |
— | ||
|
13049N
|
13049N
13049-16E01 INLET-WATER8410--01 ~ ; VG20# |
13049-16E01 |
US $29.38 |
||
|
13050N
|
13050N
13050-V5001 Gasket-Water Inlet8410--01 ~ ; VG20# |
13050-V5001 |
US $22.48 |
||
| replacement | |||||
|
13050N
|
13050N
13050V5011 GASKET, WATER8410--01 ~ ; VG20# |
13050V5011 |
from US $10.54 |
||
|
14055M
|
14055M
14055-16E00 HOSE-WATER8410--01 ~ 8605--01; VG20# |
14055-16E00 |
US $6.34 |
||
|
14055M
|
14055M
14055-16E01 HOSE-WATER8605--01 ~ ; VG20#; L=60 |
14055-16E01 |
US $6.34 |
||
|
14055N
|
14055N
1405526E05 HOSE-WATER8410--01 ~ ; VG20# |
1405526E05 |
US $17.28 |
||
|
14056M
|
14056M
14056-26E04 HOSE-WATER8601--01 ~ ; VG20# |
14056-26E04 |
US $11.95 |
||
|
14057M
|
14057M
14076-26E07 BRACKET-HEATER PIPE8410--01 ~ ; VG20# |
14076-26E07 |
US $5.90 |
||
|
14075
|
14075
14075-16E10 PIPE ASSY-HEATER RETURN,FRONT8410--01 ~ 8705--01; VG20# |
14075-16E10 |
US $59.47 |
||
|
14075
|
14075
14075-16E11 PIPE ASSY-HEATER RETURN,FRONT8705--01 ~ ; VG20# |
14075-16E11 |
US $63.79 |
||
|
14075
|
14075
14053-16E07 PIPE ASSY-HEATER RETURN,REAR8410--01 ~ 8705--01; VG20# |
14053-16E07 |
US $55.30 |
||
|
14075
|
14075
14053-16E08 PIPE ASSY-HEATER RETURN,REAR8705--01 ~ ; VG20# |
14053-16E08 |
US $57.60 |
||
|
14075M
|
14075M
14053-16E07 PIPE ASSY-HEATER RETURN,REAR8410--01 ~ 8705--01; VG20# |
14053-16E07 |
US $55.30 |
||
|
14075M
|
14075M
14053-16E08 PIPE ASSY-HEATER RETURN,REAR8705--01 ~ ; VG20# |
14053-16E08 |
US $57.60 |
||
|
14825
|
14825
14061-26E00 PIPE ASSY-AIR8410--01 ~ ; VG20# |
14061-26E00 |
US $142.99 |
||
|
21010
|
21010
21010-26E25 PUMP ASSY-WATER8410--01 ~ ; VG20#; [B106] |
21010-26E25 |
US $307.27 |
||
|
21010
|
21010
21012-V5001 Bolt8410--01 ~ ; VG20# |
21012-V5001 |
US $4.61 |
||
|
21010
|
21010
21012-V5011 Bolt8410--01 ~ ; VG20# |
21012-V5011 |
from US $6.34 |
||
|
21010
|
21010
11062-01P00
Seal-O Ring
8410--01 ~ ; VG20# |
11062-01P00 |
— | ||
|
21010A
|
21010A
21012-V5001 Bolt8410--01 ~ ; VG20# |
21012-V5001 |
US $4.61 |
||
|
21010B
|
21010B
21012-V5011 Bolt8410--01 ~ ; VG20# |
21012-V5011 |
from US $6.34 |
||
|
21010J
|
21010J
11062-01P00
Seal-O Ring
8410--01 ~ ; VG20# |
11062-01P00 |
— | ||
|
21014
|
21014
21014-V5000 Gasket-Water Pump8410--01 ~ 8502--01; VG20ET |
21014-V5000 |
US $4.18 |
||
| replacement | |||||
|
21014
|
21014
21014-V5002 Gasket-water pump8410--01 ~ 8502--01; VG20ET |
21014-V5002 |
US $6.59 |
||
|
21014
|
21014
21014-V5001 Gasket-Water Pump8502--01 ~ ; VG20# |
21014-V5001 |
US $4.18 |
||
| replacement | |||||
|
21014
|
21014
21014-V5002 Gasket-water pump8502--01 ~ ; VG20# |
21014-V5002 |
US $6.59 |
||
|
21014
|
21014
21014V5011 Seal-O Ring8410--01 ~ 8705--01; VG20# |
21014V5011 |
US $2.36 |
||
|
21014
|
21014
KA76015000
Gasket-Liquid
8705--01 ~ ; VG20#; [K504] |
KA76015000 |
— | ||
|
21014M
|
21014M
21014V5011 Seal-O Ring8410--01 ~ 8705--01; VG20# |
21014V5011 |
US $2.36 |
||
|
21014M
|
21014M
21014V5011 Seal-O Ring8410--01 ~ 8705--01; VG20# |
21014V5011 |
US $2.36 |
||
|
21014Z
|
21014Z
KA76015000
Gasket-Liquid
8705--01 ~ ; VG20#; [K504] |
KA76015000 |
— | ||
|
21045J
|
21045J
11062-01P10
Seal-O Ring
8410--01 ~ ; VG20# |
11062-01P10 |
— | ||
|
21051
|
21051
21051-16E00 PULLEY-FAN & WATER PUMP8410--01 ~ ; VG20# |
21051-16E00 |
US $98.93 |
||
|
21060C
|
21060C
11058-26E00 WASHER-PLAIN8410--01 ~ ; VG20# |
11058-26E00 |
US $1.73 |
||
|
21068
|
21068
14053-16E00 CONNECTOR-SUCTION8410--01 ~ ; VG20# |
14053-16E00 |
US $64.22 |
||
|
21200
|
21200
21200V5010
Thermostat Assy
8410--01 ~ ; VG20#; ｵ-ﾄ ｴｱｺﾝ |
21200V5010 |
— | ||
| replacement | |||||
|
21200
|
21200
21200-42L0A Thermostat8410--01 ~ ; VG20#; ｵ-ﾄ ｴｱｺﾝ |
21200-42L0A |
US $33.28 |
||
|
22630
|
22630
22630-V5010
Engine Coolant Temperature Sensor
8410--01 ~ 8508--01; VG20T |
22630-V5010 |
— | ||
| replacement | |||||
|
22630
|
22630
2263051E02 ENGINE COOLANT TEMPERATURE SENSOR8410--01 ~ 8508--01; VG20T |
2263051E02 |
from US $38.79 |
||
|
22630
|
22630
22636N4200 Gasket-Temperature Sensor8410--01 ~ 8508--01; VG20T |
22636N4200 |
from US $1.33 |
||
|
22630
|
22630
22630-01P01 Sensor-Water Temperature8410--01 ~ ; VG20#; ﾃｲｵﾝ ｽｲﾂﾁ |
22630-01P01 |
US $297.43 |
||
|
22630A
|
22630A
22636N4200 Gasket-Temperature Sensor8410--01 ~ 8508--01; VG20T |
22636N4200 |
from US $1.33 |
||
