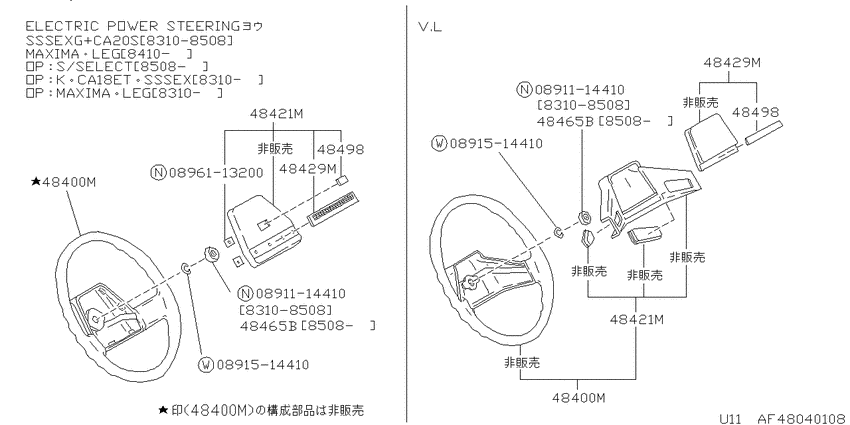

Steering wheel (1984-10-01 ~ ; MAXIMA.LEG) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- VG20T
- transmission
- F5
- grade
- MAXIMALE
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891114410
|
0891114410
08911-14410
NUTHEX
|
08911-14410 |
— | ||
|
0891114410
|
0891114410
08911-14410
NUTHEX
|
08911-14410 |
— | ||
|
0891514410
|
0891514410
08915-14410
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-14410 |
— | ||
|
0891514410
|
0891514410
08915-14410
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-14410 |
— | ||
|
0896113200
|
0896113200
08961-13200
ﾅﾂﾄ,ｽﾌﾟﾘﾝｸﾞ
|
08961-13200 |
— | ||
|
48400M
|
48400M
48430-02E17 WHEEL ASSY-STEERING,LESS PAD8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (G) |
48430-02E17 |
US $573.48 |
||
|
48400M
|
48400M
48430-04E10 WHEEL ASSY-STEERING,LESS PAD8410--01 ~ 8506--01; MAXIMA.LEG; (K) |
48430-04E10 |
US $365.33 |
||
|
48400M
|
48400M
48430-04E13 WHEEL ASSY-STEERING,LESS PAD8410--01 ~ 8506--01; MAXIMA.LEG; (B) |
48430-04E13 |
US $365.33 |
||
|
48400M
|
48400M
48430-04E15 WHEEL ASSY-STEERING,LESS PAD8506--01 ~ 8601--01; MAXIMA.LEG; (K) |
48430-04E15 |
US $365.33 |
||
|
48400M
|
48400M
48430-04E18 WHEEL ASSY-STEERING,LESS PAD8506--01 ~ 8601--01; MAXIMA.LEG; (B) |
48430-04E18 |
US $365.33 |
||
|
48400M
|
48400M
48430-28E10 WHEEL ASSY-STEERING,LESS PAD8601--01 ~ ; VG20ET.MAXIMA.LEG *S/SELECT; (K) EPS ｱﾘ |
48430-28E10 |
US $396.48 |
||
|
48400M
|
48400M
48430-28E66 WHEEL ASSY-STEERING,LESS PAD8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (C) |
48430-28E66 |
US $621.62 |
||
|
48400M
|
48400M
48430-02E17 WHEEL ASSY-STEERING,LESS PAD8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (G) |
48430-02E17 |
US $573.48 |
||
|
48400M
|
48400M
48430-04E10 WHEEL ASSY-STEERING,LESS PAD8410--01 ~ 8506--01; MAXIMA.LEG; (K) |
48430-04E10 |
US $365.33 |
||
|
48400M
|
48400M
48430-04E13 WHEEL ASSY-STEERING,LESS PAD8410--01 ~ 8506--01; MAXIMA.LEG; (B) |
48430-04E13 |
US $365.33 |
||
|
48400M
|
48400M
48430-04E15 WHEEL ASSY-STEERING,LESS PAD8506--01 ~ 8601--01; MAXIMA.LEG; (K) |
48430-04E15 |
US $365.33 |
||
|
48400M
|
48400M
48430-04E18 WHEEL ASSY-STEERING,LESS PAD8506--01 ~ 8601--01; MAXIMA.LEG; (B) |
48430-04E18 |
US $365.33 |
||
|
48400M
|
48400M
48430-28E10 WHEEL ASSY-STEERING,LESS PAD8601--01 ~ ; VG20ET.MAXIMA.LEG *S/SELECT; (K) EPS ｱﾘ |
48430-28E10 |
US $396.48 |
||
|
48400M
|
48400M
48430-28E66 WHEEL ASSY-STEERING,LESS PAD8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (C) |
48430-28E66 |
US $621.62 |
||
|
48421M
|
48421M
48420-04E10 PAD-HORN8410--01 ~ 8506--01; MAXIMA.LEG; (K) EPS ｱﾘ |
48420-04E10 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E13 PAD-HORN8410--01 ~ 8506--01; MAXIMA.LEG; (B) EPS ｱﾘ |
48420-04E13 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E15 PAD-HORN8506--01 ~ 8601--01; MAXIMA.LEG; (K) EPS ｱﾘ |
48420-04E15 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E18 PAD-HORN8506--01 ~ 8601--01; MAXIMA.LEG; (B) EPS ｱﾘ |
48420-04E18 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E25 PAD-HORN8506--01 ~ 8601--01; *MAXIMA.LEG; (K) EPS ﾅｼ |
48420-04E25 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E28 PAD-HORN8506--01 ~ 8601--01; *MAXIMA.LEG; (B) EPS ﾅｼ |
48420-04E28 |
US $74.30 |
||
|
48421M
|
48421M
48420-32E15 PAD-HORN8601--01 ~ ; VG20ET.MAXIMA.LEG; (K) |
48420-32E15 |
US $74.30 |
||
|
48421M
|
48421M
48420-32E17 PAD-HORN8601--01 ~ ; VG20ET.MAXIMA.LEG; (B) |
48420-32E17 |
US $74.30 |
||
|
48421M
|
48421M
48420-37E05 PAD-HORN8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (K) |
48420-37E05 |
US $53.14 |
||
|
48421M
|
48421M
48420-37E06 PAD-HORN8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (C) |
48420-37E06 |
US $53.14 |
||
|
48421M
|
48421M
48420-37E13 PAD-HORN8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (G) |
48420-37E13 |
US $53.14 |
||
|
48421M
|
48421M
48420-04E10 PAD-HORN8410--01 ~ 8506--01; MAXIMA.LEG; (K) EPS ｱﾘ |
48420-04E10 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E13 PAD-HORN8410--01 ~ 8506--01; MAXIMA.LEG; (B) EPS ｱﾘ |
48420-04E13 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E15 PAD-HORN8506--01 ~ 8601--01; MAXIMA.LEG; (K) EPS ｱﾘ |
48420-04E15 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E18 PAD-HORN8506--01 ~ 8601--01; MAXIMA.LEG; (B) EPS ｱﾘ |
48420-04E18 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E25 PAD-HORN8506--01 ~ 8601--01; *MAXIMA.LEG; (K) EPS ﾅｼ |
48420-04E25 |
US $74.30 |
||
|
48421M
|
48421M
48420-04E28 PAD-HORN8506--01 ~ 8601--01; *MAXIMA.LEG; (B) EPS ﾅｼ |
48420-04E28 |
US $74.30 |
||
|
48421M
|
48421M
48420-32E15 PAD-HORN8601--01 ~ ; VG20ET.MAXIMA.LEG; (K) |
48420-32E15 |
US $74.30 |
||
|
48421M
|
48421M
48420-32E17 PAD-HORN8601--01 ~ ; VG20ET.MAXIMA.LEG; (B) |
48420-32E17 |
US $74.30 |
||
|
48421M
|
48421M
48420-37E05 PAD-HORN8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (K) |
48420-37E05 |
US $53.14 |
||
|
48421M
|
48421M
48420-37E06 PAD-HORN8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (C) |
48420-37E06 |
US $53.14 |
||
|
48421M
|
48421M
48420-37E13 PAD-HORN8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT; (G) |
48420-37E13 |
US $53.14 |
||
|
48429M
|
48429M
48421-32E15 COVER8601--01 ~ ; MAXIMA.LEG |
48421-32E15 |
US $21.31 |
||
|
48429M
|
48429M
48427-04E00 COVER8310--01 ~ 8601--01; MAXIMA.LEG *(S+K).CA20S; (A) EPS ﾅｼ |
48427-04E00 |
US $14.83 |
||
|
48429M
|
48429M
48427-04E10 COVER8310--01 ~ 8709--01; G(S+K).CA20S K.SSSEXG *K.CA18ET.SSSEX *MAXIMA.LEG; (A) EPS ｱﾘ |
48427-04E10 |
US $14.83 |
||
|
48429M
|
48429M
48421-32E15 COVER8601--01 ~ ; MAXIMA.LEG |
48421-32E15 |
US $21.31 |
||
|
48429M
|
48429M
48427-04E00 COVER8310--01 ~ 8601--01; MAXIMA.LEG *(S+K).CA20S; (A) EPS ﾅｼ |
48427-04E00 |
US $14.83 |
||
|
48429M
|
48429M
48427-04E10 COVER8310--01 ~ 8709--01; G(S+K).CA20S K.SSSEXG *K.CA18ET.SSSEX *MAXIMA.LEG; (A) EPS ｱﾘ |
48427-04E10 |
US $14.83 |
||
|
48465B
|
48465B
01223-00061
NUT
8508--01 ~ ; S+K |
01223-00061 |
— | ||
| replacement | |||||
|
48465B
|
48465B
0122300241 NUT8508--01 ~ ; S+K |
0122300241 |
from US $1.02 |
||
|
48465B
|
48465B
01223-00061
NUT
8508--01 ~ ; S+K |
01223-00061 |
— | ||
| replacement | |||||
|
48465B
|
48465B
0122300241 NUT8508--01 ~ ; S+K |
0122300241 |
from US $1.02 |
||
|
48498
|
48498
48423-04E00 EMBLEM8410--01 ~ 8508--01; GAS.SLX#+SSSEXG MAXIMA.LEG |
48423-04E00 |
US $13.68 |
||
|
48498
|
48498
48423-11E00 EMBLEM8601--01 ~ 8604--01; MAXIMA.LEG |
48423-11E00 |
US $9.50 |
||
|
48498
|
48498
48423-11E05 EMBLEM8604--01 ~ ; MAXIMA.LEG *S/SELECT |
48423-11E05 |
US $9.50 |
||
|
48498
|
48498
48423-13E01 EMBLEM8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT |
48423-13E01 |
US $11.09 |
||
|
48498
|
48498
48423-04E00 EMBLEM8410--01 ~ 8508--01; GAS.SLX#+SSSEXG MAXIMA.LEG |
48423-04E00 |
US $13.68 |
||
|
48498
|
48498
48423-11E00 EMBLEM8601--01 ~ 8604--01; MAXIMA.LEG |
48423-11E00 |
US $9.50 |
||
|
48498
|
48498
48423-11E05 EMBLEM8604--01 ~ ; MAXIMA.LEG *S/SELECT |
48423-11E05 |
US $9.50 |
||
|
48498
|
48498
48423-13E01 EMBLEM8508--01 ~ 8709--01; 0S.(SLXG+S/SELECT) S.(SSS+SSSX) K-CA18DT |
48423-13E01 |
US $11.09 |
||
