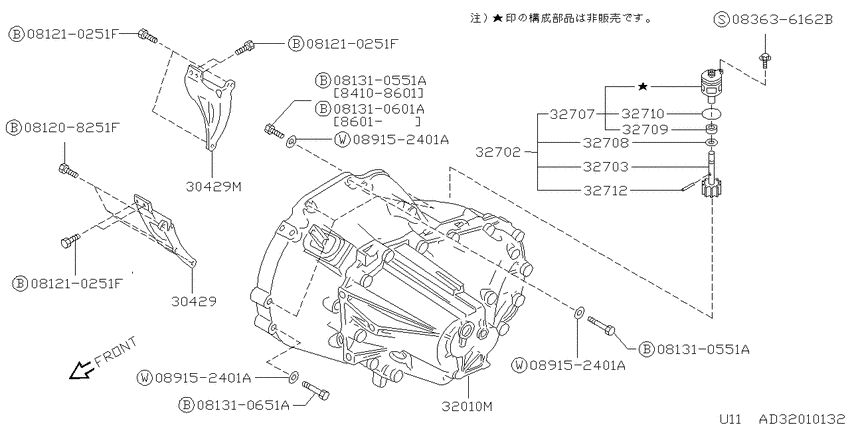

Transmission & transaxle assembly (1984-10-01 ~ ; RS5F50A.VG20#) Diagram Nissan BLUEBIRD
- Year
- 1984 - 2012
- Sales region
- Japan
- Engine
- VG20T
- transmission
- F5
- grade
- MAXIMALE
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081310551A
|
081310551A
08131-0551A
Bolt-hexagon
|
08131-0551A |
— | ||
|
081310551A
|
081310551A
08131-0551A
Bolt-hexagon
|
08131-0551A |
— | ||
|
081310601A
|
081310601A
08131-0601A
Bolt-hexagon
|
08131-0601A |
— | ||
|
081310651A
|
081310651A
08131-0651A
Bolt-hexagon
|
08131-0651A |
— | ||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
30429
|
30429
30430-26E00 Gusset-Transmission To Engine8410--01 ~ 8601--01; VG20ET.MT; ﾌﾛﾝﾄ ﾖｳ |
30430-26E00 |
US $62.21 |
||
|
30429
|
30429
30429-16E00 Gusset-Transmission To Engine8410--01 ~ 8601--01; VG20ET.MT; ﾘｱ ﾖｳ |
30429-16E00 |
US $31.10 |
||
|
30429M
|
30429M
30429-16E00 Gusset-Transmission To Engine8410--01 ~ 8601--01; VG20ET.MT; ﾘｱ ﾖｳ |
30429-16E00 |
US $31.10 |
||
|
32010M
|
32010M
32010-26E04 TRANSAXLE ASSY-MANUAL8410--01 ~ 8601--01; VG20ET.MT; RS5F50A |
32010-26E04 |
US $2,128 |
||
|
32010M
|
32010M
32010-31E04 TRANSAXLE ASSY-MANUAL8601--01 ~ ; VG20ET.MT; RS5F50A |
32010-31E04 |
US $2,408 |
||
|
32702
|
32702
32702-05E31
PINION ASSY-SPEEDOMETER
8310--01 ~ 8508--01; MT.(CA18ET,VG20ET); 31T |
32702-05E31 |
— | ||
| replacement | |||||
|
32702
|
32702
32702-16E11 PINION ASSY-SPEEDOMETER8310--01 ~ 8508--01; MT.(CA18ET,VG20ET); 31T |
32702-16E11 |
US $28.14 |
||
|
32702
|
32702
32702-16E11 PINION ASSY-SPEEDOMETER8606--01 ~ ; VG20#.F5; 31T |
32702-16E11 |
US $28.14 |
||
|
32703
|
32703
32703-05E31 PINION-SPEEDOMETER8310--01 ~ 8508--01; MT.(CA18ET.VG20ET); 31T |
32703-05E31 |
US $18.14 |
||
|
32707
|
32707
32707-05E00 SLEEVE-SPEEDOMETER PINION8508--01 ~ 8606--01; 1(CA18DT+LD20).MT VG20#.MT CA18ET.MT |
32707-05E00 |
US $15.70 |
||
|
32707
|
32707
32707-16E00 SLEEVE-SPEEDOMETER PINION8606--01 ~ 8709--01; 1(CA18DT+LD20).MT VG20#.MT CA18ET.MT |
32707-16E00 |
US $15.70 |
||
|
32708
|
32708
32713-M8001 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.61 |
32713-M8001 |
US $0.82 |
||
|
32708
|
32708
32713-M8002 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.67 |
32713-M8002 |
US $0.86 |
||
|
32708
|
32708
32713-M8003 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.73 |
32713-M8003 |
US $0.86 |
||
|
32708
|
32708
32713-M8004 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.79 |
32713-M8004 |
US $0.86 |
||
|
32708
|
32708
32713-M8005 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.85 |
32713-M8005 |
US $0.86 |
||
|
32708
|
32708
32713-M8006 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.91 |
32713-M8006 |
US $0.86 |
||
|
32708
|
32708
32713-M8007 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.97 |
32713-M8007 |
US $0.86 |
||
|
32708
|
32708
32713-M8008 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=1.03 |
32713-M8008 |
US $0.86 |
||
|
32708
|
32708
32713-M8009 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=1.09 |
32713-M8009 |
US $0.86 |
||
|
32708
|
32708
32713-M8010 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=1.15 |
32713-M8010 |
US $0.86 |
||
|
32709
|
32709
3270958S00 Seal-Oil, Speedometer Pinion8606--01 ~ 8709--01; 1(CA18DT+LD20).MT VG20#.MT CA18ET.MT |
3270958S00 |
from US $0.91 |
||
|
32710
|
32710
32710M8000 Seal-O Ring, Speedometer Pinion8310--01 ~ 8709--01; MT |
32710M8000 |
US $2.78 |
||
|
32712
|
32712
3287314600 Pin-Retainer, Speedometer Pinion8508--01 ~ 8709--01; 1(CA18DT+LD20).MT VG20#.MT CA18ET.MT |
3287314600 |
US $2.21 |
||
