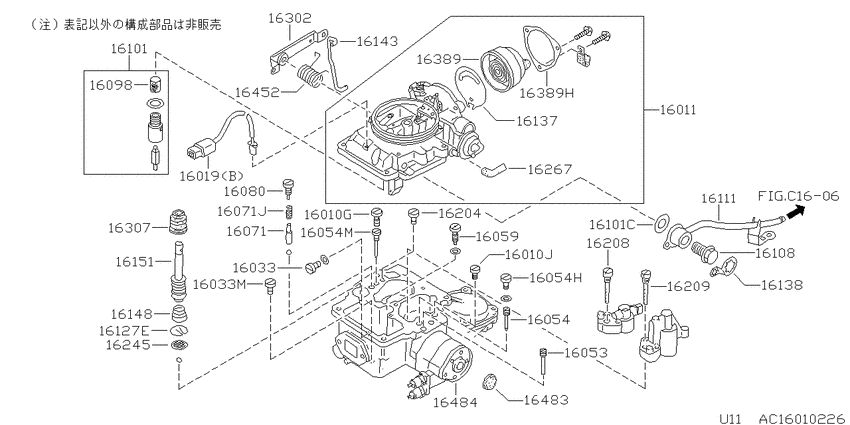

Carburetor (1985-08-01 ~ ; &NIKKI スロットル チャンバー関係; CA16S) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA16S
- transmission
- AT
- grade
- LX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010G
|
16010G
16286-A8600 Plug8310--01 ~ 8609--01; CA16S |
16286-A8600 |
US $2.45 |
||
|
16010G
|
16010G
16286-A8601 Plug8609--01 ~ 8709--01; CA16S |
16286-A8601 |
US $1.67 |
||
|
16010J
|
16010J
16286-D0105 Plug-Drain8310--01 ~ 8508--01; CA16S |
16286-D0105 |
US $2.45 |
||
|
16011
|
16011
16011-06E00 CHAMBER ASSY-CHOKE8310--01 ~ 8508--01; S.CA16S |
16011-06E00 |
US $739.15 |
||
|
16011
|
16011
16011-D4000 Chamber Assy-Choke8508--01 ~ 8709--01; S.CA16S |
16011-D4000 |
US $933.14 |
||
|
16011
|
16011
16011-D4001 Chamber Assy-Choke8910--01 ~ ; S.CA16S +V.CA16S |
16011-D4001 |
US $719.33 |
||
|
16019
|
16019
16019-D4000 Coupler8508--01 ~ 8709--01; CA16S; (A) |
16019-D4000 |
US $14.40 |
||
|
16019
|
16019
16019-D4010
Coupler
8508--01 ~ 8709--01; S.CA16S; (B) |
16019-D4010 |
— | ||
|
16033
|
16033
16033-B8200 Jet-Main8508--01 ~ 8709--01; S.CA16S |
16033-B8200 |
US $2.74 |
||
|
16033
|
16033
16033-J0500 Jet-Main8310--01 ~ 8508--01; CA16S |
16033-J0500 |
US $3.46 |
||
|
16033
|
16033
16033-B8561 Jet-Main8310--01 ~ 8508--01; CA16S |
16033-B8561 |
US $3.74 |
||
|
16033
|
16033
16033-B8562 Jet-Main8508--01 ~ 8709--01; S.CA16S |
16033-B8562 |
US $3.02 |
||
|
16033M
|
16033M
16033-B8561 Jet-Main8310--01 ~ 8508--01; CA16S |
16033-B8561 |
US $3.74 |
||
|
16033M
|
16033M
16033-B8562 Jet-Main8508--01 ~ 8709--01; S.CA16S |
16033-B8562 |
US $3.02 |
||
|
16053
|
16053
16054-A4500
Jet-Step
8310--01 ~ 8508--01; CA16S |
16054-A4500 |
— | ||
|
16053
|
16053
16054-U0102 Jet-Coasting8605--01 ~ 8709--01; S.CA16S.AT |
16054-U0102 |
US $9.50 |
||
|
16053
|
16053
16055-D4010
Jet-Slow
8508--01 ~ 8605--01; S.CA16S.AT |
16055-D4010 |
— | ||
|
16054
|
16054
16055-D0101 Jet-Step8310--01 ~ 8709--01; CA16S |
16055-D0101 |
US $20.02 |
||
|
16054
|
16054
16272-B8201 Plug-Drain8310--01 ~ 8709--01; CA16S |
16272-B8201 |
US $1.87 |
||
|
16054
|
16054
16286-D0101 Plug8310--01 ~ 8508--01; CA16S |
16286-D0101 |
US $12.38 |
||
|
16054
|
16054
16055-W4500 Jet-Slow8310--01 ~ 8709--01; CA16S |
16055-W4500 |
US $12.38 |
||
|
16054H
|
16054H
16286-D0101 Plug8310--01 ~ 8508--01; CA16S |
16286-D0101 |
US $12.38 |
||
|
16054M
|
16054M
16055-W4500 Jet-Slow8310--01 ~ 8709--01; CA16S |
16055-W4500 |
US $12.38 |
||
|
16059
|
16059
16059-D0101 Valve-Power8310--01 ~ 8508--01; S.CA16S.AT |
16059-D0101 |
US $11.95 |
||
|
16071
|
16071
16071-01M00 Weight-Injector8310--01 ~ 8709--01; CA16S |
16071-01M00 |
US $3.17 |
||
|
16071
|
16071
16069-D0100 Spring-Injector8310--01 ~ 8709--01; CA16S |
16069-D0100 |
US $2.45 |
||
|
16071J
|
16071J
16069-D0100 Spring-Injector8310--01 ~ 8709--01; CA16S |
16069-D0100 |
US $2.45 |
||
|
16080
|
16080
16080-D0100 Screw-Injector Set8310--01 ~ 8609--01; CA16S |
16080-D0100 |
US $2.45 |
||
|
16080
|
16080
16286-A8601 Plug8609--01 ~ 8709--01; CA16S |
16286-A8601 |
US $1.67 |
||
|
16098
|
16098
16098-D0100 Filter8310--01 ~ 8709--01; CA16S |
16098-D0100 |
US $5.72 |
||
|
16101
|
16101
16101-06E00 VALVE-NEEDLE8310--01 ~ 8709--01; CA16S |
16101-06E00 |
US $21.89 |
||
|
16101
|
16101
16094-D0100 Washer8310--01 ~ 8709--01; CA16S |
16094-D0100 |
US $0.86 |
||
|
16101C
|
16101C
16094-D0100 Washer8310--01 ~ 8709--01; CA16S |
16094-D0100 |
US $0.86 |
||
|
16108
|
16108
16108-D0100
Screw-Filter Set
8310--01 ~ 8709--01; CA16S |
16108-D0100 |
— | ||
|
16111
|
16111
16111-06E00
NIPPLE-FUEL
8310--01 ~ 8508--01; CA16S |
16111-06E00 |
— | ||
|
16111
|
16111
16111-11E75 NIPPLE-FUEL8508--01 ~ 8709--01; CA16S |
16111-11E75 |
US $22.46 |
||
|
16127E
|
16127E
16156-11200 Clip-Strainer Pump8310--01 ~ 8709--01; CA16S |
16156-11200 |
US $0.97 |
||
|
16137
|
16137
16390-D0100 Plate-Stopping8310--01 ~ 8709--01; CA16S |
16390-D0100 |
US $7.20 |
||
|
16138
|
16138
16137-D0100 Lever-Lock8310--01 ~ 8709--01; CA16S |
16137-D0100 |
US $4.18 |
||
|
16143
|
16143
16143-D0100 Rod-Pump8310--01 ~ 8709--01; CA16S |
16143-D0100 |
US $5.76 |
||
|
16148
|
16148
16148-D0100 Spring-Return, Piston8310--01 ~ 8709--01; CA16S |
16148-D0100 |
US $3.74 |
||
|
16151
|
16151
16151D0100 Piston8310--01 ~ 8508--01; CA16S |
16151D0100 |
US $23.37 |
||
|
16151
|
16151
16151-D4000
Piston
8508--01 ~ 8709--01; CA16S |
16151-D4000 |
— | ||
| replacement | |||||
|
16151
|
16151
16151D0100 Piston8508--01 ~ 8709--01; CA16S |
16151D0100 |
US $23.37 |
||
|
16204
|
16204
16204-D4000 Bleed-Slow Air8508--01 ~ 8709--01; S.CA16S |
16204-D4000 |
US $5.04 |
||
|
16204
|
16204
16253-U9200 Bleed-Slow Air8310--01 ~ 8508--01; CA16S |
16253-U9200 |
US $4.18 |
||
|
16208
|
16208
16036-D4001 Bleed-Main Air8508--01 ~ 8709--01; S.CA16S |
16036-D4001 |
US $9.22 |
||
|
16208
|
16208
16050-D0100 Bleed-Main Air8310--01 ~ 8508--01; CA16S |
16050-D0100 |
US $7.63 |
||
|
16209
|
16209
16036-D4000 Bleed-Main Air8508--01 ~ 8709--01; S.CA16S |
16036-D4000 |
US $12.38 |
||
|
16209
|
16209
16050-D0101 Bleed-Main Air8310--01 ~ 8508--01; CA16S |
16050-D0101 |
US $7.63 |
||
|
16245
|
16245
16245-11200 Strainer-Pump8310--01 ~ 8709--01; CA16S |
16245-11200 |
US $0.97 |
||
|
16267
|
16267
16267-01M00 Pipe-Rubber8608--01 ~ 8709--01; CA16S |
16267-01M00 |
US $4.18 |
||
|
16267
|
16267
16267-D0100
Pipe-Rubber
8310--01 ~ 8608--01; CA16S |
16267-D0100 |
— | ||
|
16302
|
16302
16302-D0101 Lever-Pump8310--01 ~ 8508--01; CA16S |
16302-D0101 |
US $21.17 |
||
|
16302
|
16302
16302-D4000 Lever-Pump8508--01 ~ 8709--01; CA16S |
16302-D4000 |
US $17.28 |
||
|
16307
|
16307
16307-D0100 Cover-Pump8508--01 ~ ; CA16S |
16307-D0100 |
US $5.04 |
||
|
16389
|
16389
16389-06E00 COVER-THERMO8310--01 ~ 8709--01; S.CA16S |
16389-06E00 |
US $151.20 |
||
|
16389
|
16389
16399-W7000 Nut8310--01 ~ 8508--01; S.CA16S |
16399-W7000 |
US $13.39 |
||
|
16389
|
16389
16390-D0105 Plate-Thermo Cover8310--01 ~ 8508--01; CA16S |
16390-D0105 |
US $11.52 |
||
|
16389
|
16389
16390-V6500 Plate-Thermo Cover8508--01 ~ 8709--01; CA16S |
16390-V6500 |
US $7.20 |
||
|
16389H
|
16389H
16390-D0105 Plate-Thermo Cover8310--01 ~ 8508--01; CA16S |
16390-D0105 |
US $11.52 |
||
|
16389H
|
16389H
16390-V6500 Plate-Thermo Cover8508--01 ~ 8709--01; CA16S |
16390-V6500 |
US $7.20 |
||
|
16452
|
16452
16452-D0100 Spring-Pump Lever8310--01 ~ 8508--01; CA16S |
16452-D0100 |
US $4.18 |
||
|
16452
|
16452
16452-V6500 Spring-Pump Lever8508--01 ~ 8709--01; CA16S |
16452-V6500 |
US $4.03 |
||
|
16483
|
16483
16483-P5320 Cap-Rubber8508--01 ~ 8709--01; CA16S |
16483-P5320 |
US $4.90 |
||
|
16484
|
16484
16484-D4010 Barometic Pressure Sensor-B.c.d.d8508--01 ~ 8605--01; CA16S.AT |
16484-D4010 |
US $373.82 |
||
|
16484
|
16484
16484-D4011 Barometic Pressure Sensor-B.c.d.d8605--01 ~ 8709--01; S.CA16S.AT |
16484-D4011 |
US $276.48 |
||
