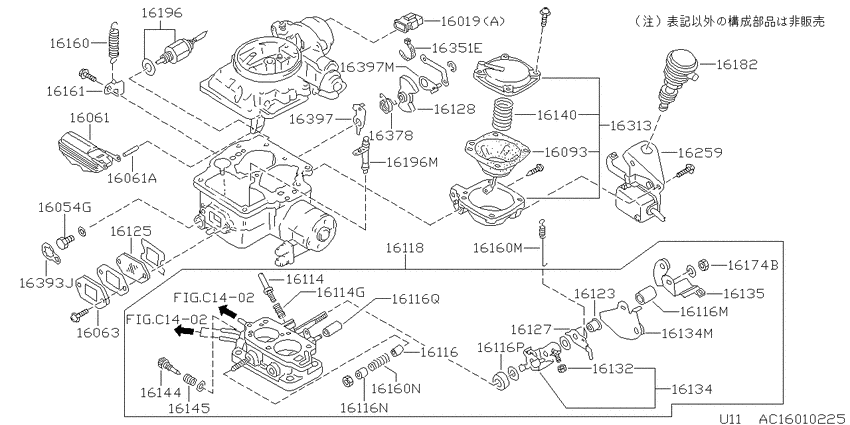

Carburetor (1985-08-01 ~ ; $NIKKI チョーク チャンバー関係; CA16S) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA16S
- transmission
- AT
- grade
- LX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16019
|
16019
16019-D4000 Coupler8508--01 ~ 8709--01; CA16S; (A) |
16019-D4000 |
US $14.40 |
||
|
16019
|
16019
16019-D4010
Coupler
8508--01 ~ 8709--01; S.CA16S; (B) |
16019-D4010 |
— | ||
|
16054G
|
16054G
16272-B8201 Plug-Drain8310--01 ~ 8709--01; CA16S |
16272-B8201 |
US $1.87 |
||
|
16061
|
16061
16061-D0100 Float8310--01 ~ 8508--01; CA16S |
16061-D0100 |
US $16.85 |
||
|
16061
|
16061
16061-D4000 Float8508--01 ~ 8709--01; S.CA16S |
16061-D4000 |
US $14.11 |
||
|
16061
|
16061
16827-0201P Collar-Float Pin8310--01 ~ 8709--01; CA16S |
16827-0201P |
US $2.74 |
||
|
16061A
|
16061A
16827-0201P Collar-Float Pin8310--01 ~ 8709--01; CA16S |
16827-0201P |
US $2.74 |
||
|
16063
|
16063
16125-01M01 Cover-Gauge Lever8310--01 ~ 8709--01; CA16S |
16125-01M01 |
US $2.45 |
||
|
16093
|
16093
16093-D0100 Diaphragm8310--01 ~ 8709--01; CA16S |
16093-D0100 |
US $17.86 |
||
|
16114
|
16114
16114-D0100 Screw-Adjust, Throttle8310--01 ~ 8709--01; CA16S |
16114-D0100 |
US $11.23 |
||
|
16114
|
16114
16145-62S01 Spring-Screw Adjust8508--01 ~ 8709--01; CA16S |
16145-62S01 |
US $11.95 |
||
|
16114
|
16114
16193-D0100 Spring-Screw Adjust8310--01 ~ 8508--01; CA16S |
16193-D0100 |
US $12.24 |
||
|
16114G
|
16114G
16145-62S01 Spring-Screw Adjust8508--01 ~ 8709--01; CA16S |
16145-62S01 |
US $11.95 |
||
|
16114G
|
16114G
16193-D0100 Spring-Screw Adjust8310--01 ~ 8508--01; CA16S |
16193-D0100 |
US $12.24 |
||
|
16116
|
16116
16116-D0105 Sleeve-B8310--01 ~ 8508--01; CA16S |
16116-D0105 |
US $1.73 |
||
|
16116
|
16116
16116-D4000 Sleeve-A8508--01 ~ 8709--01; CA16S |
16116-D4000 |
US $5.04 |
||
|
16116
|
16116
16116-D0110 Sleeve-B8310--01 ~ 8508--01; CA16S.AT |
16116-D0110 |
US $4.18 |
||
|
16116
|
16116
16116-D4001 Sleeve-C8508--01 ~ 8709--01; CA16S |
16116-D4001 |
US $3.46 |
||
|
16116
|
16116
16116-D4002 Sleeve-Inner8508--01 ~ 8709--01; CA16S |
16116-D4002 |
US $5.04 |
||
|
16116
|
16116
16116-D4003 Sleeve-Inner8508--01 ~ 8709--01; CA16S |
16116-D4003 |
US $5.04 |
||
|
16116M
|
16116M
16116-D0110 Sleeve-B8310--01 ~ 8508--01; CA16S.AT |
16116-D0110 |
US $4.18 |
||
|
16116N
|
16116N
16116-D4001 Sleeve-C8508--01 ~ 8709--01; CA16S |
16116-D4001 |
US $3.46 |
||
|
16116P
|
16116P
16116-D4002 Sleeve-Inner8508--01 ~ 8709--01; CA16S |
16116-D4002 |
US $5.04 |
||
|
16116Q
|
16116Q
16116-D4003 Sleeve-Inner8508--01 ~ 8709--01; CA16S |
16116-D4003 |
US $5.04 |
||
|
16118
|
16118
16118-D0110 Throttle Body8310--01 ~ 8508--01; CA16S.AT |
16118-D0110 |
US $430.46 |
||
|
16118
|
16118
16118-D4010 Throttle Body8508--01 ~ 8709--01; CA16S.AT |
16118-D4010 |
US $349.75 |
||
|
16123
|
16123
16116-D0100 Collar-Throttle, 1St8310--01 ~ 8709--01; CA16S |
16116-D0100 |
US $6.77 |
||
|
16125
|
16125
16125-01M00 Gauge-Level8310--01 ~ 8709--01; CA16S |
16125-01M00 |
US $4.99 |
||
|
16127
|
16127
16127-D0100 Plate-Return8310--01 ~ 8709--01; CA16S |
16127-D0100 |
US $9.22 |
||
|
16127
|
16127
16156-11200 Clip-Strainer Pump8310--01 ~ 8709--01; CA16S |
16156-11200 |
US $0.97 |
||
|
16128
|
16128
16063-06E00 CAM-FAST IDLE8310--01 ~ 8709--01; S.CA16S |
16063-06E00 |
US $5.04 |
||
|
16132
|
16132
16132-B8500 Nut8508--01 ~ 8709--01; CA16S |
16132-B8500 |
US $3.31 |
||
|
16134
|
16134
16134-D0100 Lever-Throttle8310--01 ~ 8709--01; CA16S |
16134-D0100 |
US $11.95 |
||
|
16134
|
16134
16134-D0105 Lever-Throttle8310--01 ~ 8709--01; CA16S |
16134-D0105 |
US $8.78 |
||
|
16134M
|
16134M
16134-D0105 Lever-Throttle8310--01 ~ 8709--01; CA16S |
16134-D0105 |
US $8.78 |
||
|
16135
|
16135
16135-D0100 Iacv-Ficd Lever8310--01 ~ 8508--01; CA16S.AT |
16135-D0100 |
US $22.46 |
||
|
16135
|
16135
16135-D0110 Iacv-Ficd Lever8508--01 ~ 8709--01; CA16S.AT |
16135-D0110 |
US $26.93 |
||
|
16140
|
16140
16140-D0100 Spring-Diaphragm8310--01 ~ 8709--01; CA16S |
16140-D0100 |
US $2.74 |
||
|
16144
|
16144
16144-D0100 Screw-Adjust, Idle8310--01 ~ 8709--01; CA16S |
16144-D0100 |
US $9.65 |
||
|
16145
|
16145
16145-31301 Spring-Screw, Adjust8310--01 ~ 8508--01; CA16S |
16145-31301 |
US $1.73 |
||
|
16145
|
16145
16145-62S00 Spring-Screw, Adjust8508--01 ~ 8709--01; CA16S |
16145-62S00 |
US $2.45 |
||
|
16160
|
16160
16160-B8500 Spring-Throttle Primary8310--01 ~ 8709--01; CA16S |
16160-B8500 |
US $7.78 |
||
|
16160
|
16160
16160-D0100 Spring-Throttle Assist8310--01 ~ 8709--01; CA16S |
16160-D0100 |
US $6.05 |
||
|
16160
|
16160
16160-62S00 Spring-Throttle Secondary8508--01 ~ 8709--01; CA16S |
16160-62S00 |
US $8.35 |
||
|
16160M
|
16160M
16160-D0100 Spring-Throttle Assist8310--01 ~ 8709--01; CA16S |
16160-D0100 |
US $6.05 |
||
|
16160N
|
16160N
16160-62S00 Spring-Throttle Secondary8508--01 ~ 8709--01; CA16S |
16160-62S00 |
US $8.35 |
||
|
16161
|
16161
16161-D0100 Hanger-Spring8310--01 ~ 8709--01; CA16S |
16161-D0100 |
US $5.18 |
||
|
16174B
|
16174B
16124-31300 Nut8508--01 ~ 8709--01; CA16S |
16124-31300 |
US $1.73 |
||
|
16182
|
16182
16182-W8800 Idle Speed Control-Fi Pot8310--01 ~ 8508--01; CA16S+CA18S+CA20S |
16182-W8800 |
US $114.19 |
||
|
16196
|
16196
16196-06E00 IACV-FICD SOLENOID VALVE8310--01 ~ 8508--01; CA16S |
16196-06E00 |
US $129.60 |
||
|
16196
|
16196
16196-D4001 Iacv-Ficd Solenoid Valve8508--01 ~ 8709--01; S.CA16S |
16196-D4001 |
US $122.98 |
||
|
16196
|
16196
16196-06E10 IACV-FICD SOLENOID VALVE8310--01 ~ 8508--01; CA16S |
16196-06E10 |
US $148.32 |
||
|
16196
|
16196
16196-D4000 Iacv-Ficd Solenoid Valve8508--01 ~ 8709--01; S.CA16S |
16196-D4000 |
US $139.82 |
||
|
16196M
|
16196M
16196-06E10 IACV-FICD SOLENOID VALVE8310--01 ~ 8508--01; CA16S |
16196-06E10 |
US $148.32 |
||
|
16196M
|
16196M
16196-D4000 Iacv-Ficd Solenoid Valve8508--01 ~ 8709--01; S.CA16S |
16196-D4000 |
US $139.82 |
||
|
16259
|
16259
16260-06E00 THROTTLE POSITION SWITCH8310--01 ~ 8508--01; CA16S |
16260-06E00 |
US $154.08 |
||
|
16259
|
16259
16260-D4000 Switch-Micro8508--01 ~ 8709--01; S.CA16S |
16260-D4000 |
US $121.10 |
||
|
16313
|
16313
16313-06E00 DIAPHRAGM ASSY-CHAMBER8310--01 ~ 8508--01; CA16S |
16313-06E00 |
US $89.28 |
||
|
16313
|
16313
16313-D4000 Diaphragm Assy-Chamber8508--01 ~ 8709--01; S.CA16S |
16313-D4000 |
US $93.17 |
||
|
16351E
|
16351E
16138-D0100 Holder Assy-Cord8310--01 ~ 8709--01; CA16S |
16138-D0100 |
US $2.45 |
||
|
16378
|
16378
16378-W0100 Spring-Cam8310--01 ~ 8508--01; S.CA16S |
16378-W0100 |
from US $4.03 |
||
|
16393J
|
16393J
16273-01M00 Plate-Lock8310--01 ~ 8508--01; CA16S |
16273-01M00 |
US $6.05 |
||
|
16393J
|
16393J
16273-50A00 Plate-Lock8508--01 ~ 8709--01; CA16S |
16273-50A00 |
US $5.90 |
||
|
16397
|
16397
16379-W7000 Lever-Counter8310--01 ~ 8709--01; CA16S |
16379-W7000 |
US $7.49 |
||
|
16397
|
16397
16063-W7000 Stopper-Cam8310--01 ~ 8709--01; S.CA16S |
16063-W7000 |
US $8.93 |
||
|
16397M
|
16397M
16063-W7000 Stopper-Cam8310--01 ~ 8709--01; S.CA16S |
16063-W7000 |
US $8.93 |
