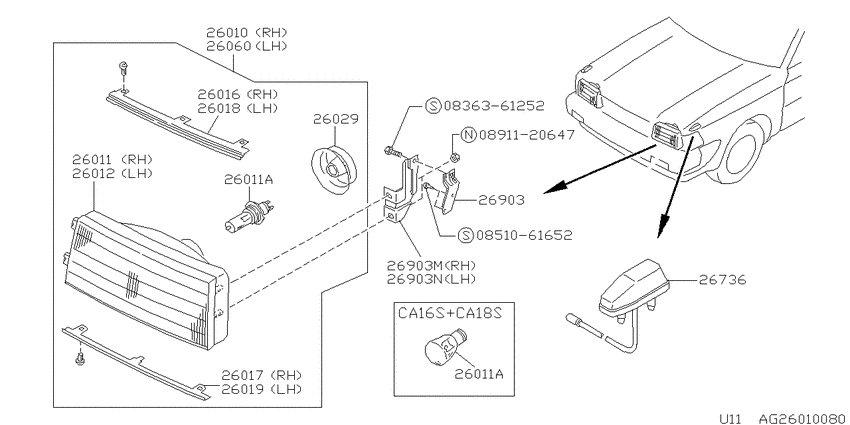

Head lamp (1983-10-01 ~ 1985-08-01; (S+K) -MAXIMA# +W) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA16S
- transmission
- AT
- grade
- LX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361252
|
0836361252
08363-61252
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61252 |
— | ||
|
0851061652
|
0851061652
08510-61652
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61652 |
— | ||
|
0891120647
|
0891120647
08911-20647
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-20647 |
— | ||
|
26010
|
26010
26010-01E00 LAMP ASSY-RH8310--01 ~ 8508--01; .S.CA16S.(LX+LXL) S.CA18S S.LD20; [B113] |
26010-01E00 |
US $457.37 |
||
|
26010
|
26010
B6010-01E60 Lamp Assy-Rh8508--01 ~ 8608--01; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
B6010-01E60 |
US $327.10 |
||
|
26010
|
26010
B6010-01E65 Lamp Assy-Rh8608--01 ~ ; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
B6010-01E65 |
US $311.52 |
||
|
26010
|
26010
B6010-02E60 Lamp Assy-Rh8601--01 ~ 8608--01; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
B6010-02E60 |
US $348.34 |
||
|
26010
|
26010
B6010-02E65 Lamp Assy-Rh8608--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
B6010-02E65 |
US $337.01 |
||
|
26011
|
26011
26015-01E00 HEAD LAMP UNIT8310--01 ~ 8508--01; /S.(CA16S+CA18S) S.LD20 K.CA18S; [B113] |
26015-01E00 |
US $241.92 |
||
|
26011
|
26011
26015-01E60 HEAD LAMP UNIT8508--01 ~ 8608--01; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
26015-01E60 |
US $249.12 |
||
|
26011
|
26011
26015-01E65 HEAD LAMP UNIT8608--01 ~ ; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
26015-01E65 |
US $241.92 |
||
|
26011
|
26011
26015-02E60 HEAD LAMP UNIT8601--01 ~ 8608--01; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
26015-02E60 |
US $249.12 |
||
|
26011
|
26011
26015-02E65 HEAD LAMP UNIT8608--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
26015-02E65 |
US $241.92 |
||
|
26011
|
26011
AY08000003 Bulb8310--01 ~ 8508--01; /S.(CA16S+CA18S) S.LD20 K.CA18S; 12V-65/55W |
AY08000003 |
US $23.04 |
||
|
26011
|
26011
AY08010003 Bulb8601--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; 12V-60/55W. LXｾﾚｸﾄ ﾖｳ |
AY08010003 |
US $16.67 |
||
|
26011A
|
26011A
AY08000003 Bulb8310--01 ~ 8508--01; /S.(CA16S+CA18S) S.LD20 K.CA18S; 12V-65/55W |
AY08000003 |
US $23.04 |
||
|
26011A
|
26011A
AY08010003 Bulb8601--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; 12V-60/55W. LXｾﾚｸﾄ ﾖｳ |
AY08010003 |
US $16.67 |
||
|
26011A
|
26011A
AY08000003 Bulb8310--01 ~ 8508--01; /S.(CA16S+CA18S) S.LD20 K.CA18S; 12V-65/55W |
AY08000003 |
US $23.04 |
||
|
26011A
|
26011A
AY08010003 Bulb8601--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; 12V-60/55W. LXｾﾚｸﾄ ﾖｳ |
AY08010003 |
US $16.67 |
||
|
26012
|
26012
26065-01E00 HEAD LAMP UNIT8310--01 ~ 8508--01; /S.(CA16S+CA18S) S.LD20 K.CA18S; [B113] |
26065-01E00 |
US $241.92 |
||
|
26012
|
26012
26065-01E60 HEAD LAMP UNIT8508--01 ~ 8608--01; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
26065-01E60 |
US $249.12 |
||
|
26012
|
26012
26065-01E65 HEAD LAMP UNIT8608--01 ~ ; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
26065-01E65 |
US $241.92 |
||
|
26012
|
26012
26065-02E60 HEAD LAMP UNIT8601--01 ~ 8608--01; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
26065-02E60 |
US $249.12 |
||
|
26012
|
26012
26065-02E65 HEAD LAMP UNIT8608--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
26065-02E65 |
US $241.92 |
||
|
26016
|
26016
26044-01E00 RIM-MOUNTING,N0.1 RH8310--01 ~ 8508--01; .S.CA16S.(LX+LXL) S.CA18S S.LD20; ﾐｷﾞ[B113] |
26044-01E00 |
US $25.06 |
||
|
26017
|
26017
26044-01E20 RIM-MOUNTING,N0.2 RH8310--01 ~ 8508--01; S+K; [B113] |
26044-01E20 |
US $11.66 |
||
|
26018
|
26018
26094-01E00 RIM-MOUNTING,N0.1 LH8310--01 ~ 8508--01; .S.CA16S.(LX+LXL) S.CA18S S.LD20; ﾋﾀﾞﾘ[B113] |
26094-01E00 |
US $25.06 |
||
|
26019
|
26019
26094-01E20 RIM-MOUNTING,N0.2 LH8310--01 ~ 8508--01; S+K; [B113] |
26094-01E20 |
US $11.66 |
||
|
26029
|
26029
26029-41L00 Holder-Head Lamp8508--01 ~ ; 0S.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT; [B113] |
26029-41L00 |
US $14.54 |
||
|
26029
|
26029
26029-V5100 Holder-Head Lamp8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; [B113] |
26029-V5100 |
US $22.18 |
||
|
26060
|
26060
26060-01E00 LAMP ASSY-LH8310--01 ~ 8508--01; .S.CA16S.(LX+LXL) S.CA18S S.LD20; [B113] |
26060-01E00 |
US $457.37 |
||
|
26060
|
26060
B6060-01E60 Lamp Assy-Lh8508--01 ~ 8608--01; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
B6060-01E60 |
US $327.10 |
||
|
26060
|
26060
B6060-01E65 Lamp Assy-Lh8608--01 ~ ; FS.CA16S.(L+LX) S.CA18S.LX S.LD20.LX W.CA18S.LX; [B113] |
B6060-01E65 |
US $311.52 |
||
|
26060
|
26060
B6060-02E60 Lamp Assy-Lh8601--01 ~ 8608--01; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
B6060-02E60 |
US $348.34 |
||
|
26060
|
26060
B6060-02E65 Lamp Assy-Lh8608--01 ~ ; 2*S.CA16S.LX *S.CA18S.LX *S.LD20.LX; LXｾﾚｸﾄ ﾖｳ[B113] |
B6060-02E65 |
US $337.01 |
||
|
26736
|
26736
26730-01E00 INDICATOR-MONITOR,HEAD LAMP8310--01 ~ ; .S.(CA16S+CA18S) S.(CA18E+CA18ET) S.LD20; ﾐｷﾞ[B113] |
26730-01E00 |
US $39.31 |
||
|
26736
|
26736
26735-01E00 INDICATOR-MONITOR,HEAD LAMP8310--01 ~ ; .S.(CA16S+CA18S) S.(CA18E+CA18ET) S.LD20; LH[B113] |
26735-01E00 |
US $39.31 |
||
|
26903
|
26903
26042-01E10 Bracket8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾐｷﾞ |
26042-01E10 |
US $6.19 |
||
|
26903
|
26903
26092-01E10 Bracket8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾋﾀﾞﾘ |
26092-01E10 |
US $6.19 |
||
|
26903
|
26903
26042-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾐｷﾞ[B113] |
26042-01E00 |
US $6.48 |
||
|
26903
|
26903
26042-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾐｷﾞ |
26042-01E70 |
US $10.94 |
||
|
26903
|
26903
26092-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ[B113] |
26092-01E00 |
US $6.19 |
||
|
26903
|
26903
26092-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ |
26092-01E70 |
US $8.78 |
||
|
26903M
|
26903M
26042-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾐｷﾞ[B113] |
26042-01E00 |
US $6.48 |
||
|
26903M
|
26903M
26042-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾐｷﾞ |
26042-01E70 |
US $10.94 |
||
|
26903N
|
26903N
26092-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ[B113] |
26092-01E00 |
US $6.19 |
||
|
26903N
|
26903N
26092-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ |
26092-01E70 |
US $8.78 |
