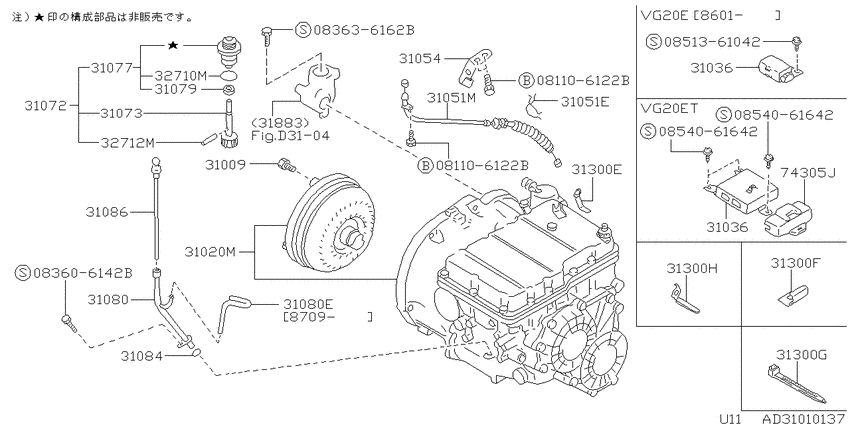

AT transmission & transaxle assembly (1983-10-01 ~ ; &アッセンブリー& フィッティング パー; RL4F02A+RN4F02A) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- SSSEX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106122B
|
081106122B
08110-6122B
Bolt-hexagon
|
08110-6122B |
— | ||
|
081106122B
|
081106122B
08110-6122B
Bolt-hexagon
|
08110-6122B |
— | ||
|
083606142B
|
083606142B
08360-6142B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6142B |
— | ||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
0851361042
|
0851361042
0851361042 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ |
0851361042 |
US $1.87 |
||
|
0854061642
|
0854061642
0854061642
SCREWTAPPING
|
0854061642 |
— | ||
|
0854061642
|
0854061642
0854061642
SCREWTAPPING
|
0854061642 |
— | ||
|
31009
|
31009
31009-01X00 Bolt-Self Lock8310--01 ~ 8805--01; AT |
31009-01X00 |
US $4.18 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock8805--01 ~ ; (S+K).AT |
3100921X00 |
from US $2.65 |
||
|
31020M
|
31020M
31020-13X13 Transaxle Assy-Automatic8310--01 ~ 8508--01; CA18E.AT; RL3F01A |
31020-13X13 |
US $4,018 |
||
|
31020M
|
31020M
31020-21X12 Transaxle Assy-Automatic8508--01 ~ 8709--01; (S+K).CA18E.AT; RL4F02A ｼﾖｳ |
31020-21X12 |
US $4,704 |
||
|
31051E
|
31051E
24220-D1800 Clip-Accelerator Wire8310--01 ~ 8508--01; CA18E.AT |
24220-D1800 |
US $3.46 |
||
|
31051M
|
31051M
31051-28E00 WIRE ASSY-THROTTLE8508--01 ~ 8709--01; (S+K).CA18E.AT |
31051-28E00 |
US $34.27 |
||
|
31072
|
31072
32702-04E30 PINION ASSY-SPEEDOMETER8508--01 ~ 8601--01; 4(S+K).SSS#.AT W.AT SUPER SELECT; 30T |
32702-04E30 |
US $27.65 |
||
|
31072
|
31072
32702-21X10 Pinion Assy-Speedometer8606--01 ~ 8709--01; D(S+K).CA18S.AT.(S/SELECT+SSS) (S+K).(CA18E#+VG20#).AT,W.AT; 30T |
32702-21X10 |
US $27.65 |
||
|
31073
|
31073
32703-04E30 PINION-SPEEDOMETER8508--01 ~ 8601--01; 4(S+K).SSS#.AT W.AT SUPER SELECT; 30T ﾖｳ |
32703-04E30 |
US $25.49 |
||
|
31077
|
31077
32707-04E00 SLEEVE ASSY-SPEEDOMETER PINION8508--01 ~ 8601--01; 4(S+K).SSS#.AT W.AT SUPER SELECT; 30T,32T ﾖｳ |
32707-04E00 |
US $17.57 |
||
|
31077
|
31077
32707-21X00 Sleeve Assy-Speedometer Pinion8606--01 ~ 8709--01; D(S+K).CA18S.AT.(S/SELECT+SSS) (S+K).(CA18E#+VG20#).AT,W.AT; 30T,32T ﾖｳ |
32707-21X00 |
US $17.57 |
||
|
31079
|
31079
3270914600 Seal-Oil, Speedometer Pinion8310--01 ~ 8606--01; AT |
3270914600 |
from US $1.60 |
||
|
31079
|
31079
3270958S00 Seal-Oil, Speedometer Pinion8606--01 ~ ; AT |
3270958S00 |
from US $0.91 |
||
|
31080
|
31080
31080-06E00 Pipe Assy-Oil Charging8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31080-06E00 |
US $53.28 |
||
|
31080
|
31080
31080-D4000 Pipe Assy-Oil Charging8508--01 ~ 8709--01; (S+K).CA18#.AT W.AT |
31080-D4000 |
US $72.58 |
||
|
31084
|
31084
31084-21X01 Seal-O Ring8508--01 ~ 8601--01; 3(S+K).CA18#.AT S.LD20.AT W.AT,VG20ET |
31084-21X01 |
US $2.45 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-03E02 GAUGE ASSY-OIL LEVEL8508--01 ~ 8709--01; ,(S+K).CA18#.AT S.LD20.AT W.AT |
31086-03E02 |
US $17.86 |
||
|
31086
|
31086
31086-D0101 Gauge Assy-Oil Level8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31086-D0101 |
US $16.56 |
||
|
31300E
|
31300E
24210-06E00 CLIP-HARNESS8310--01 ~ 8508--01; CA18E.AT |
24210-06E00 |
US $27.50 |
||
|
31300F
|
31300F
24220-G3100 Clip-Harness8508--01 ~ 8709--01; ,(S+K).CA18#.AT S.LD20.AT W.AT |
24220-G3100 |
US $1.15 |
||
|
32710M
|
32710M
32710-04E01 SEAL-O RING,SPEEDOMETER PINION8310--01 ~ ; AT; 30T,32T ﾖｳ |
32710-04E01 |
US $2.45 |
||
|
32710M
|
32710M
32710M8000 Seal-O Ring, Speedometer Pinion8310--01 ~ ; AT; 34T,35T ﾖｳ |
32710M8000 |
US $2.78 |
||
|
32712M
|
32712M
15046-09400 Pin-Retainer, Speedometer Pinion8310--01 ~ ; AT; 30T,32T ﾖｳ |
15046-09400 |
US $2.02 |
||
|
32712M
|
32712M
32712-14600
Pin-Retainer, Speedometer Pinion
8310--01 ~ 8606--01; AT; 34T,35T ﾖｳ |
32712-14600 |
— | ||
|
32712M
|
32712M
3287314600 Pin-Retainer, Speedometer Pinion8606--01 ~ ; AT; 34T,35T ﾖｳ |
3287314600 |
US $2.21 |
