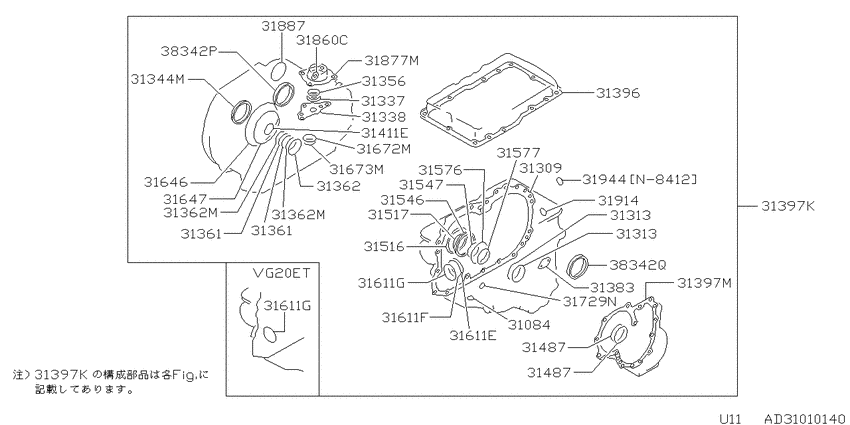

AT transmission & transaxle assembly (1983-10-01 ~ ; ガスケット&シールキット; RL4F02A+RN4F02A) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- SSSEX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31084
|
31084
31084-21X01 Seal-O Ring8508--01 ~ 8601--01; 3(S+K).CA18#.AT S.LD20.AT W.AT,VG20ET |
31084-21X01 |
US $2.45 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31084M7500 |
US $1.15 |
||
|
31309
|
31309
31309-01X01
Gasket-Converter Housing
8310--01 ~ 8412--01; AT.(CA16S,CA18S, CA18E) |
31309-01X01 |
— | ||
|
31309
|
31309
31309-01X02
Gasket-Converter Housing
8412--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31309-01X02 |
— | ||
|
31309
|
31309
31309-21X03
Gasket-Converter Housing
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31309-21X03 |
— | ||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31313-21X01 |
US $10.51 |
||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31313-21X01 |
US $10.51 |
||
|
31337
|
31337
31337-21X01 Seal-Lip8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31337-21X01 |
US $6.19 |
||
| replacement | |||||
|
31337
|
31337
C1337-21X01
Seal-lip
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
C1337-21X01 |
— | ||
|
31338
|
31338
31338-21X01 Gasket-Control Cylinder8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31338-21X01 |
US $1.73 |
||
|
31344M
|
31344M
3134421X00 Seal-Oil Pump Housing8310--01 ~ 8410--01; AT.(CA18#+CA20S+LD20) |
3134421X00 |
from US $4.66 |
||
|
31356
|
31356
31356-21X02 Seal-O Ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31356-21X02 |
US $5.18 |
||
| replacement | |||||
|
31356
|
31356
C1356-21X02
Seal-o ring
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
C1356-21X02 |
— | ||
|
31361
|
31361
31361-01X00 Ring-Seal8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31361-01X00 |
US $10.80 |
||
|
31361
|
31361
31361-21X00 Ring-Seal8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31361-21X00 |
US $10.80 |
||
|
31361
|
31361
31361-01X00 Ring-Seal8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31361-01X00 |
US $10.80 |
||
|
31361
|
31361
31361-21X00 Ring-Seal8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31361-21X00 |
US $10.80 |
||
|
31362
|
31362
31362-01X00 Ring-Seal8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31362-01X00 |
US $10.80 |
||
|
31362
|
31362
31558-21X00 Ring-Seal8508--01 ~ 8601--01; "(CA18S+CA18E#).AT LD20.AT,VG20ET |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31362-21X04
Seal-O Ring
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31362-21X04 |
— | ||
| replacement | |||||
|
31362
|
31362
C1362-21X04 O ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
C1362-21X04 |
US $5.96 |
||
|
31362M
|
31362M
31362-21X04
Seal-O Ring
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31362-21X04 |
— | ||
| replacement | |||||
|
31362M
|
31362M
C1362-21X04 O ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
C1362-21X04 |
US $5.96 |
||
|
31362M
|
31362M
31362-21X04
Seal-O Ring
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31362-21X04 |
— | ||
| replacement | |||||
|
31362M
|
31362M
C1362-21X04 O ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
C1362-21X04 |
US $5.96 |
||
|
31383
|
31383
31383-21X01 Gasket-Retainer Side8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31383-21X01 |
US $4.18 |
||
|
31396
|
31396
31396-21X01
Gasket-Upper Cover
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31396-21X01 |
— | ||
|
31397K
|
31397K
31397-01X26
Gasket & Seal Kit-Auto Transmission
8310--01 ~ 8412--01; AT.(CA16S,CA18S, CA18E); 3F01A |
31397-01X26 |
— | ||
|
31397K
|
31397K
31397-01X27 Gasket & Seal Kit-Auto Transmission8412--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E); 3F01A |
31397-01X27 |
US $158.40 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-01X2H
Gasket & seal kit-auto transmission
8412--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E); 3F01A |
C1397-01X2H |
— | ||
|
31397K
|
31397K
31397-21X28 Gasket & Seal Kit-Auto Transmission8508--01 ~ 8709--01; CA18#.AT S.LD20.AT; 4F02A |
31397-21X28 |
US $195.84 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-21X2H
Gasket & seal kit-auto transmission
8508--01 ~ 8709--01; CA18#.AT S.LD20.AT; 4F02A |
C1397-21X2H |
— | ||
|
31397K
|
31397K
31397-01X26
Gasket & Seal Kit-Auto Transmission
8310--01 ~ 8412--01; AT.(CA16S,CA18S, CA18E); 3F01A |
31397-01X26 |
— | ||
|
31397K
|
31397K
31397-01X27 Gasket & Seal Kit-Auto Transmission8412--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E); 3F01A |
31397-01X27 |
US $158.40 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-01X2H
Gasket & seal kit-auto transmission
8412--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E); 3F01A |
C1397-01X2H |
— | ||
|
31397K
|
31397K
31397-21X28 Gasket & Seal Kit-Auto Transmission8508--01 ~ 8709--01; CA18#.AT S.LD20.AT; 4F02A |
31397-21X28 |
US $195.84 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-21X2H
Gasket & seal kit-auto transmission
8508--01 ~ 8709--01; CA18#.AT S.LD20.AT; 4F02A |
C1397-21X2H |
— | ||
|
31397M
|
31397M
31397-21X00
Gasket-Side Cover
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31397-21X00 |
— | ||
|
31411E
|
31411E
31159-X6101 Seal-O Ring8310--01 ~ 8508--01; AT.(CA18S,CA18E) |
31159-X6101 |
US $3.31 |
||
|
31487
|
31487
31487-21X00 Ring-Seal8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31487-21X00 |
US $7.92 |
||
|
31487
|
31487
31487-21X00 Ring-Seal8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31487-21X00 |
US $7.92 |
||
|
31516
|
31516
31516-01X00 Seal-Lathe Cut Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31516-01X00 |
US $8.21 |
||
|
31516
|
31516
31516-21X01
Seal-Lip
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31516-21X01 |
— | ||
| replacement | |||||
|
31516
|
31516
C1516-21X01 Seal-lip8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
C1516-21X01 |
US $11.79 |
||
|
31516
|
31516
31516-01X00 Seal-Lathe Cut Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31516-01X00 |
US $8.21 |
||
|
31517
|
31517
31517-01X00 Seal-O Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31517-01X00 |
US $6.91 |
||
|
31517
|
31517
31517-21X00 Seal-Lathe Cut Ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31517-21X00 |
US $6.77 |
||
|
31517
|
31517
31547-01X00 Seal-O Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31547-01X00 |
US $7.06 |
||
|
31546
|
31546
31528-21X09 Seal-Lip8601--01 ~ 8709--01; CA18#.AT+LD20.AT |
31528-21X09 |
US $11.52 |
||
|
31546
|
31546
31546-21X01 Seal-Lip8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31546-21X01 |
US $11.52 |
||
|
31547
|
31547
3154721X00 Seal-Lathe Cut Ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
3154721X00 |
from US $5.76 |
||
|
31576
|
31576
31576-21X00 Seal-Lathe Cut Ring8508--01 ~ 8709--01; CA18#.AT |
31576-21X00 |
US $8.93 |
||
|
31577
|
31577
31577-21X00 Seal-O Ring, Low Clutch8508--01 ~ 8601--01; (CA18S+CA18E#).AT S.LD20.AT |
31577-21X00 |
US $5.90 |
||
|
31611E
|
31611E
31612-01X00
Seal-O Ring, Band Servo
8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31612-01X00 |
— | ||
|
31611E
|
31611E
31612-21X01 Seal-O Ring, Band Servo8508--01 ~ 8709--01; (CA18S+CA18E).AT LD20.AT |
31612-21X01 |
US $5.18 |
||
|
31611F
|
31611F
31613-21X10 Seal-O Ring, Band Servo8508--01 ~ 8709--01; (CA18S+CA18E).AT LD20.AT |
31613-21X10 |
US $5.18 |
||
|
31611G
|
31611G
31614-21X10 Seal-O Ring, Band Servo8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31614-21X10 |
US $5.18 |
||
|
31611G
|
31611G
31614-21X10 Seal-O Ring, Band Servo8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31614-21X10 |
US $5.18 |
||
|
31646
|
31646
31646-21X00 Seal-Lathe Cut Ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31646-21X00 |
US $11.95 |
||
|
31647
|
31647
31647-21X00 Seal-O Ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31647-21X00 |
US $10.08 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET,AT |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
3167321X00 |
US $4.85 |
||
|
31729N
|
31729N
31729-21X01 Seal-O Ring8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31729-21X01 |
US $4.18 |
||
|
31860C
|
31860C
31897-01X00 Washer-Seal8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31897-01X00 |
US $1.73 |
||
|
31860C
|
31860C
31897-21X00 Washer-Seal8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31897-21X00 |
US $0.86 |
||
|
31877M
|
31877M
31877-21X00 Gasket-Governor Cap8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31877-21X00 |
US $1.73 |
||
|
31887
|
31887
31887-21X00 Seal-Ring, Speedometer8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31887-21X00 |
US $1.73 |
||
|
31914
|
31914
31914-01X00 Seal-O Ring8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
31914-01X00 |
US $2.45 |
||
|
31944
|
31944
31526-27X00 Seal-O Ring, Terminal8510--01 ~ 8601--01; "(CA18S+CA18E#).AT LD20.AT,VG20ET |
31526-27X00 |
US $4.18 |
||
|
31944
|
31944
31914-20300
Seal-O Ring, Terminal
8310--01 ~ 8508--01; AT.(CA18S,CA18E) |
31914-20300 |
— | ||
|
31944
|
31944
31944-21X00
Seal-O Ring, Terminal
8508--01 ~ 8510--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
31944-21X00 |
— | ||
|
38342P
|
38342P
38342-03E01
SEAL-OIL,DIFFERENTIAL CLUTCH HOUSING
8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
38342-03E01 |
— | ||
| replacement | |||||
|
38342P
|
38342P
3834281X01 Seal-Oil, Differential Converter Housing8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT |
3834281X01 |
from US $6.85 |
||
|
38342P
|
38342P
38342M8001 Seal-Oil, Differential Clutch Housing8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
38342M8001 |
from US $5.47 |
||
|
38342Q
|
38342Q
38342-21X00 Seal-Oil, Differential Transmission Case8508--01 ~ 8709--01; CA18#.AT S.LD20.AT |
38342-21X00 |
US $7.49 |
||
|
38342Q
|
38342Q
38342M8001 Seal-Oil, Differential Clutch Housing8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E) |
38342M8001 |
from US $5.47 |
||
