Component List BLUEBIRD
Control valve (atm) (1986-01-01 ~ ; アッパー RE4F02A; ALL)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0092250610	0092250610 0092250610 CLIP	0092250610	from US $0.61
0812064522	0812064522 08120-64522 Bolt-hexagon	08120-64522	—
0812064522	0812064522 08120-64522 Bolt-hexagon	08120-64522	—
0812066022	0812066022 08120-66022 Bolt-hexagon	08120-66022	—
0812066022	0812066022 08120-66022 Bolt-hexagon	08120-66022	—
0891120610	0891120610 0891120610 NUTHEX	0891120610	US $2.21
0891120610	0891120610 0891120610 NUTHEX	0891120610	US $2.21
0891543610	0891543610 08915-43610 ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ	08915-43610	—
0891543610	0891543610 08915-43610 ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ	08915-43610	—
31710	31710 31710-01X02 Body Assy-Upper Control Valve 8310--01 ~ 8508--01; CA18E.AT	31710-01X02	US $110.88
31710	31710 31711-21X04 Body Assy-Upper Control Valve 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31711-21X04	US $108.72
31710	31710 01121-01901 BOLT 8508--01 ~ 8601--01; (CA18S+CA18E#).AT S.LD20.AT	01121-01901	US $1.73
31710	31710 31726-01X07 Bolt 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31726-01X07	US $0.86
31710	31710 01111-00771 BOLT 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	01111-00771	US $1.73
31710	31710 31726-01X05 Bolt 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31726-01X05	US $2.45
31710	31710 31726-01X04 Bolt 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31726-01X04	US $2.45
31710	31710 31726-01X05 Bolt 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31726-01X05	US $2.45
31710	31710 31726-01X06 Bolt 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31726-01X06	US $1.73
31710A	31710A 01121-01901 BOLT 8508--01 ~ 8601--01; (CA18S+CA18E#).AT S.LD20.AT	01121-01901	US $1.73
31710A	31710A 31726-01X07 Bolt 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31726-01X07	US $0.86
31725	31725 31725-01X00 Pin-Parallel, Control Valve 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31725-01X00	from US $1.40
31731	31731 31731-01X04 Valve-Manual 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31731-01X04	US $20.30
31731	31731 31731-21X01 Valve-Manual 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31731-21X01	US $22.18
31736	31736 31736-21X03 Spring-Timing 8508--01 ~ 8602--01; CA18#.AT+LD20.AT	31736-21X03	US $0.86
31736	31736 31738-21X00 Spring-Timing 8508--01 ~ 8601--01; (CA18S+CA18E).AT	31738-21X00	US $0.86
31741	31741 31741-01X00 Valve-Pressure Regulator 8310--01 ~ 8311--01; CA18E.AT	31741-01X00	US $20.30
31741	31741 31741-01X02 Valve-Pressure Regulator 8311--01 ~ 8511--01; (CA16S+CA18S+CA18E).AT	31741-01X02	—
31741	31741 31741-21X07 Valve-Pressure Regulator 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31741-21X07	US $19.58
31742	31742 31742-01X01 Spring-Pressure Regulator 8310--01 ~ 8508--01; (CA16S+CA18S+CA18E).AT	31742-01X01	US $2.45
31742	31742 31742-21X10 Spring-Pressure Regulator 8602--01 ~ 8709--01; CA18E.AT	31742-21X10	US $2.45
31742	31742 31742-21X11 Spring-Pressure Regulator 8508--01 ~ 8601--01; CA18E.AT	31742-21X11	US $2.45
31743	31743 31743-21X01 Seat-Spring, Pressure Regulator 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31743-21X01	US $0.82
31744	31744 31744-01X00 Plug-Pressure Regulator 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31744-01X00	—
31745	31745 31746-01X00 Valve-Back Up 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31746-01X00	US $11.52
31745	31745 31746-21X00 Valve-Back Up 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31746-21X00	US $11.23
31745	31745 31742-21X05 Spring-Torque Converter Regulator 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31742-21X05	US $0.86
31745	31745 31747-01X00 Spring-Back Up 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31747-01X00	US $1.73
31745	31745 31748-01X01 Plate-Retainer, Back Up 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31748-01X01	US $0.86
31745	31745 31745-01X00 Sleeve-Pressure Regulator 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31745-01X00	—
31745G	31745G 31742-21X05 Spring-Torque Converter Regulator 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31742-21X05	US $0.86
31745G	31745G 31747-01X00 Spring-Back Up 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31747-01X00	US $1.73
31747	31747 31745-21X13 Sleeve-Plug, Pressure Regulator 8508--01 ~ 8601--01; CA18E.AT	31745-21X13	US $22.18
31747	31747 31745-21X15 Sleeve-Plug, Pressure Regulator 8602--01 ~ 8709--01; CA18E.AT	31745-21X15	—
31747	31747 31747-01X00 Spring-Back Up 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31747-01X00	US $1.73
31747M	31747M 31747-01X00 Spring-Back Up 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31747-01X00	US $1.73
31751	31751 31751-01X00 Valve-Pressure Modifier 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31751-01X00	US $6.34
31751	31751 31751-21X02 Valve-Pressure Modifier 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31751-21X02	US $7.06
31752	31752 31752-01X05 Spring-Pressure Modifier 8310--01 ~ 8508--01; (CA16S+CA18S+CA18E).AT	31752-01X05	US $0.86
31752	31752 31752-21X05 Spring-Pressure Modifier 8508--01 ~ 8601--01; (CA18E#+LD20).AT VG20ET.AT	31752-21X05	US $0.86
31752	31752 31752-21X06 Spring-Pressure Modifier 8602--01 ~ 8709--01; CA18E.AT	31752-21X06	US $0.86
31754	31754 31754-21X01 Plate-Retainer 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31754-21X01	US $0.86
31756	31756 31756-01X00 Spring-1St Reducing 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31756-01X00	US $0.86
31756	31756 31756-21X00 Spring-1St Reducing 8508--01 ~ 8601--01; (CA18S+CA18E#).AT, VG20ET.AT	31756-21X00	US $0.86
31760	31760 31760-01X01 Valve-1St & 2Nd Control 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31760-01X01	US $8.64
31760	31760 31760-21X03 Valve-1St & 2Nd Control 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31760-21X03	US $16.56
31762	31762 31762-01X01 Spring-Valve, Shift 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31762-01X01	US $0.86
31762	31762 31762-21X04 Spring-Valve, Shift 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31762-21X04	US $0.86
31763	31763 31763-21X01 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31763-21X01	US $5.04
31763	31763 31763-21X02 Plug 8310--01 ~ 8508--01; (CA16S+CA18S+CA18E).AT	31763-21X02	US $5.90
31763	31763 31763-01X00 Plug-Pressure Regulator 8310--01 ~ 8407--01; (CA16S+CA18S+CA18E).AT	31763-01X00	US $5.18
31763	31763 31763-21X02 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31763-21X02	US $5.90
31763	31763 31763-21X02 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31763-21X02	US $5.90
31763N	31763N 31763-01X00 Plug-Pressure Regulator 8310--01 ~ 8407--01; (CA16S+CA18S+CA18E).AT	31763-01X00	US $5.18
31763N	31763N 31763-21X02 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31763-21X02	US $5.90
31763P	31763P 31763-21X02 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31763-21X02	US $5.90
31766	31766 31766-01X01 Valve-2Nd & 3Rd Shift 8310--01 ~ 8407--01; (CA16S+CA18E+CA18S).AT	31766-01X01	US $8.93
31766	31766 31766-01X06 Valve-2Nd & 3Rd Shift 8407--01 ~ 8508--01; (CA18S+CA18E).AT	31766-01X06	US $8.93
31766	31766 31766-21X07 Valve-2Nd & 3Rd Shift 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31766-21X07	US $10.08
31772N	31772N 31772-01X00 Spring-Top Reducing 8310--01 ~ 8508--01; AT.(CA16S,CA18S, CA18E)	31772-01X00	US $0.86
31773	31773 31773-21X00 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31773-21X00	US $5.18
31773	31773 31845-21X00 Plug 8607--01 ~ 8709--01; (CA18#+LD20).AT	31845-21X00	US $4.03
31773	31773 31773-21X00 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31773-21X00	US $5.18
31773	31773 31845-21X00 Plug 8607--01 ~ 8709--01; (CA18#+LD20).AT	31845-21X00	US $4.03
31773M	31773M 31773-21X00 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31773-21X00	US $5.18
31773M	31773M 31845-21X00 Plug 8607--01 ~ 8709--01; (CA18#+LD20).AT	31845-21X00	US $4.03
31774	31774 31774-21X00 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31774-21X00	US $5.04
31774	31774 31774-21X00 Plug 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31774-21X00	US $5.04
31776	31776 31776-01X02 Spring-3Rd & 2Nd Down Shift 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31776-01X02	US $0.86
31776	31776 31776-21X03 Spring-3Rd & 2Nd Down Shift 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31776-21X03	US $0.86
31780	31780 31780-21X01 Valve-Torque Converter Regulator 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31780-21X01	US $22.90
31780	31780 32720-36900 Ball-Steel 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	32720-36900	US $0.82
31780	31780 01019-00011 NEEDLE,VALVE 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	01019-00011	US $1.73
31781	31781 31791-21X03 Valve-3Rd & 4Th Shift 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31791-21X03	US $26.06
31781	31781 31781-21X03 Valve-2Nd & 4Th Timing 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31781-21X03	US $19.58
31781M	31781M 31791-21X03 Valve-3Rd & 4Th Shift 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31791-21X03	US $26.06
31782M	31782M 31792-21X05 Spring-3Rd & 4Th Shift 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31792-21X05	US $1.73
31783	31783 31793-21X03 Plug-3Rd & 4Th Shift 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31793-21X03	US $19.58
31783	31783 31783-21X02 Valve-Cut Back 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31783-21X02	US $8.93
31783M	31783M 31783-21X02 Valve-Cut Back 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31783-21X02	US $8.93
31784M	31784M 31784-21X03 Plug-Cut Back 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31784-21X03	US $7.34
31785	31785 31785-21X03 Sleeve-Cut Back 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31785-21X03	US $22.18
31801	31801 31801-01X00 Valve-Throttle Vacuum 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31801-01X00	US $6.34
31801	31801 31801-21X02 Valve-Throttle Vacuum 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31801-21X02	US $6.48
31802	31802 31802-01X01 Spring-Throttle Relief 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31802-01X01	US $1.73
31802	31802 31802-21X08 Spring-Throttle Relief 8508--01 ~ 8601--01; (CA18E+CA18ET).AT VG20ET.AT	31802-21X08	US $1.73
31803	31803 31803-01X00 Valve-Detent 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31803-01X00	US $19.30
31803	31803 31803-21X01 Valve-Detent 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31803-21X01	US $18.86
31804	31804 31804-01X00 Valve-Sleeve Fail Safe 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31804-01X00	US $24.19
31804	31804 31804-21X02 Valve-Sleeve Fail Safe 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31804-21X02	US $23.76
31805	31805 31805-01X00 Plug-Throttle 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31805-01X00	US $7.20
31805	31805 31805-21X00 Plug-Throttle 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31805-21X00	US $7.20
31806	31806 31806-01X00 Spring-Fail Safe 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31806-01X00	US $0.86
31806	31806 31806-21X00 Spring-Fail Safe 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31806-21X00	US $0.86
31813M	31813M 31813-21X00 Plate-Retainer 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31813-21X00	US $0.86
31813N	31813N 31813-21X00 Plate-Retainer 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31813-21X00	US $0.86
31813P	31813P 31813-21X00 Plate-Retainer 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31813-21X00	US $0.86
31813P	31813P 31813-21X00 Plate-Retainer 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31813-21X00	US $0.86
31829	31829 31829-68300 Ball-Steel 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31829-68300	US $1.73
31829	31829 32829-26760 Ball-Check 8310--01 ~ 8508--01; (CA18S+CA18E).AT	32829-26760	from US $0.74
31832	31832 31832-21X06 Valve-Lock Up Control 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31832-21X06	US $10.37
31833	31833 31833-21X05 Sleeve-Lock Up Control 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31833-21X05	US $6.91
31834	31834 31794-01X00 Spring-Lock Up Control 8310--01 ~ 8508--01; AT.(CA18S,CA18E)	31794-01X00	US $1.73
31834	31834 31834-21X02 Spring-Lock Up Control 8508--01 ~ 8601--01; (CA18S+CA18E#).AT	31834-21X02	US $1.73
31834	31834 31738-21X00 Spring-Timing 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31738-21X00	US $0.86
31834	31834 31738-21X00 Spring-Timing 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31738-21X00	US $0.86
31834	31834 31835-21X07 Spring-4Th Speed Cut 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31835-21X07	US $1.73
31834N	31834N 31738-21X00 Spring-Timing 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31738-21X00	US $0.86
31841	31841 31841-21X02 Spacer-Valve 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31841-21X02	US $1.73
31841	31841 31841-21X03 Spacer-Valve 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31841-21X03	US $1.73
31841M	31841M 31841-21X03 Spacer-Valve 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31841-21X03	US $1.73
31940E	31940E 31707-01X00 Clip-Harness 8310--01 ~ 8402--01; (CA18S+CA18E).AT	31707-01X00	—
31940E	31940E 31707-01X01 Clip-Harness 8310--01 ~ 8402--01; CA18E.AT; (B)	31707-01X01	—
31940E	31940E 31707-01X02 Clip-Harness 8310--01 ~ 8402--01; CA18E.AT; (C)	31707-01X02	—
31940E	31940E 31707-01X03 Clip-Harness 8402--01 ~ 8508--01; (CA18S+CA18E).AT	31707-01X03	US $5.62
31940E	31940E 31707-01X05 Clip-Harness 8402--01 ~ 8508--01; CA18E.AT	31707-01X05	US $5.62
31940E	31940E 31707-21X00 Clip-Harness 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31707-21X00	US $7.20
31940F	31940F 31707-21X06 Clamp-Harness 8310--01 ~ 8508--01; (CA18S+CA18E).AT	31707-21X06	US $6.34
31940F	31940F 31718-01X03 Clamp-Harness 8504--01 ~ 8508--01; AT.(CA18S,CA18E)	31718-01X03	US $5.62
31940G	31940G 31707-21X04 Clip-Harness 8508--01 ~ 8601--01; %(CA18S+CA18E#).AT LD20.AT,VG20ET.AT	31707-21X04	US $6.34
31940G	31940G 31718-01X02 Clip-Harness 8504--01 ~ 8508--01; AT.(CA18S,CA18E)	31718-01X02	US $5.62
31940H	31940H 31707-21X05 Clip-Harness 8508--01 ~ 8601--01; (CA18S+CA18E#).AT VG20ET.AT	31707-21X05	US $6.34

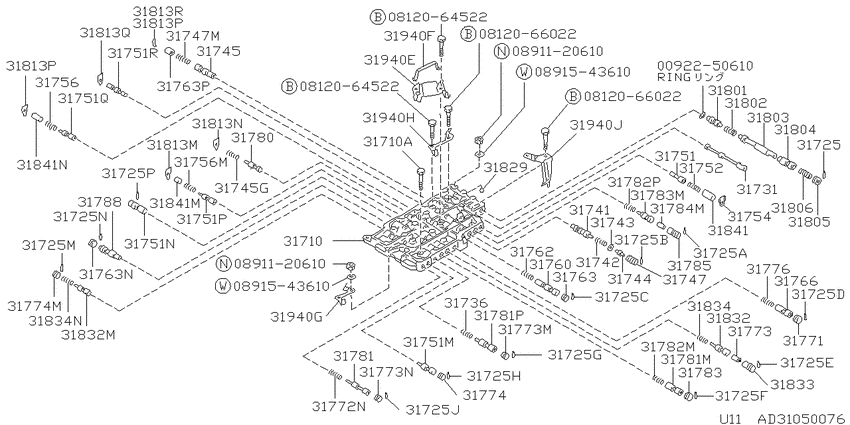

Control valve (atm) (1986-01-01 ~ ; アッパー RE4F02A; ALL) Diagram Nissan BLUEBIRD Japan 7824605-621321

Control valve (atm) (1986-01-01 ~ ; アッパー RE4F02A; ALL) Diagram Nissan BLUEBIRD Japan 7824605-621321
