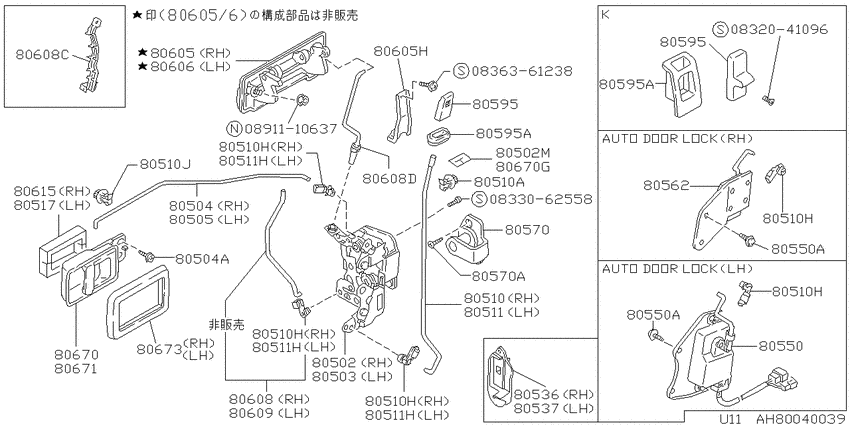

Front door lock & handle (1983-10-01 ~ ; ALL) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- SSSEX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0832041096
|
0832041096
08320-41096
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-41096 |
— | ||
|
0833062558
|
0833062558
08330-62558
ｽｸﾘﾕ-,ﾏｼﾝ
|
08330-62558 |
— | ||
|
0836361238
|
0836361238
0836361238
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836361238 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
80502
|
80502
80502-01E00
ﾛﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ rh
8310--01 ~ ; ALL |
80502-01E00 |
— | ||
|
80502
|
80502
80882-01E00 RUBBER-SEATING,DOOR LOCK RH8310--01 ~ ; S; ﾄﾞｱ ﾛﾂｸ ﾉﾌﾞ ﾖｳ |
80882-01E00 |
US $2.02 |
||
|
80502M
|
80502M
80882-01E00 RUBBER-SEATING,DOOR LOCK RH8310--01 ~ ; S; ﾄﾞｱ ﾛﾂｸ ﾉﾌﾞ ﾖｳ |
80882-01E00 |
US $2.02 |
||
|
80503
|
80503
80503-01E00 ﾛﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ lh8310--01 ~ ; ALL |
80503-01E00 |
US $97.34 |
||
| replacement | |||||
|
80503
|
80503
80503-01E60
Lock assy-front door,lh
8310--01 ~ ; ALL |
80503-01E60 |
— | ||
|
80504
|
80504
80504-01E00 REMOTE CONTROL ASSY-DOOR LOCK,RH8310--01 ~ ; S |
80504-01E00 |
US $7.20 |
||
|
80504
|
80504
01461-00061 SCREW8310--01 ~ ; ALL |
01461-00061 |
US $2.21 |
||
|
80504A
|
80504A
01461-00061 SCREW8310--01 ~ ; ALL |
01461-00061 |
US $2.21 |
||
|
80505
|
80505
80505-01E00 REMOTE CONTROL ASSY-DOOR LOCK,LH8310--01 ~ ; S |
80505-01E00 |
US $7.20 |
||
|
80510
|
80510
80512-01E00 ﾛﾂﾄﾞ,ﾛﾂｸ ﾉﾌﾞ rh8310--01 ~ ; S |
80512-01E00 |
US $19.01 |
||
|
80510
|
80510
80533-Q0100 Holder-Rod, Lh8310--01 ~ ; S+K+V+W |
80533-Q0100 |
US $2.74 |
||
|
80510
|
80510
8052001F00 Holder-Rod8310--01 ~ ; S+K+V+W |
8052001F00 |
US $2.74 |
||
|
80510H
|
80510H
80533-Q0100 Holder-Rod, Lh8310--01 ~ ; S+K+V+W |
80533-Q0100 |
US $2.74 |
||
|
80510H
|
80510H
80533-Q0100 Holder-Rod, Lh8310--01 ~ ; S+K+V+W |
80533-Q0100 |
US $2.74 |
||
|
80510H
|
80510H
80533-Q0100 Holder-Rod, Lh8310--01 ~ ; S+K+V+W |
80533-Q0100 |
US $2.74 |
||
|
80510H
|
80510H
80533-Q0100 Holder-Rod, Lh8310--01 ~ ; S+K+V+W |
80533-Q0100 |
US $2.74 |
||
|
80510H
|
80510H
80533-Q0100 Holder-Rod, Lh8310--01 ~ ; S+K+V+W |
80533-Q0100 |
US $2.74 |
||
|
80510J
|
80510J
8052001F00 Holder-Rod8310--01 ~ ; S+K+V+W |
8052001F00 |
US $2.74 |
||
|
80511
|
80511
80513-01E00 ROD ASSY-LOCK KNOB,LH8310--01 ~ ; S |
80513-01E00 |
US $19.01 |
||
|
80511
|
80511
80532Q0100 Holder-Rod, Rh8310--01 ~ ; S+K+V+W |
80532Q0100 |
US $1.73 |
||
|
80511H
|
80511H
80532Q0100 Holder-Rod, Rh8310--01 ~ ; S+K+V+W |
80532Q0100 |
US $1.73 |
||
|
80511H
|
80511H
80532Q0100 Holder-Rod, Rh8310--01 ~ ; S+K+V+W |
80532Q0100 |
US $1.73 |
||
|
80511H
|
80511H
80532Q0100 Holder-Rod, Rh8310--01 ~ ; S+K+V+W |
80532Q0100 |
US $1.73 |
||
|
80517
|
80517
80886-01E00
SEALING RUBBER-DOOR SIDE
8310--01 ~ 8508--01; S+K |
80886-01E00 |
— | ||
|
80517
|
80517
80886-41L00 Shield-Inside Handle8508--01 ~ ; S+K |
80886-41L00 |
US $1.11 |
||
|
80536
|
80536
80536-01E00 PROTECTOR-KEY LEVER,RH8310--01 ~ ; ALL; ﾌﾞﾙ-(ﾐｷﾞ) |
80536-01E00 |
US $8.64 |
||
|
80537
|
80537
80537-01E00 PROTECTOR-KEY LEVER,LH8310--01 ~ ; ALL; ｸﾞﾘ-ﾝ(ﾋﾀﾞﾘ) |
80537-01E00 |
US $8.64 |
||
|
80550
|
80550
80553-01E00 ACTUATOR-AUTO DOOR LOCK,FRONT LH8508--01 ~ 8601--01; (S+K).S/SELECT (S+K).SSSX |
80553-01E00 |
US $288.86 |
||
|
80550
|
80550
01125-00092 SCREW8508--01 ~ 8601--01; 2(S+K).S/SELECT (S+K).SSSX MAXIMA.LEG |
01125-00092 |
US $1.73 |
||
|
80550A
|
80550A
01125-00092 SCREW8508--01 ~ 8601--01; 2(S+K).S/SELECT (S+K).SSSX MAXIMA.LEG |
01125-00092 |
US $1.73 |
||
|
80550A
|
80550A
01125-00092 SCREW8508--01 ~ 8601--01; 2(S+K).S/SELECT (S+K).SSSX MAXIMA.LEG |
01125-00092 |
US $1.73 |
||
|
80562
|
80562
80580-01E01 SWITCH-AUTO DOOR LOCK,RH8508--01 ~ 8601--01; 2(S+K).S/SELECT (S+K).SSSX MAXIMA.LEG |
80580-01E01 |
US $142.56 |
||
|
80570
|
80570
80570-01L00
Striker Assy-Front Door Lock, Rh
8310--01 ~ 8508--01; ALL; ﾐｷﾞ ﾋﾀﾞﾘ |
80570-01L00 |
— | ||
| replacement | |||||
|
80570
|
80570
8057041L00 Striker Assy-Front Door Lock, Rh8310--01 ~ 8508--01; ALL; ﾐｷﾞ ﾋﾀﾞﾘ |
8057041L00 |
from US $20.33 |
||
|
80570
|
80570
8057041L00 Striker Assy-Front Door Lock, Rh8610--01 ~ ; S+K; ﾐｷﾞ ﾋﾀﾞﾘ |
8057041L00 |
from US $20.33 |
||
|
80570
|
80570
01432-00051 SCREW8310--01 ~ ; S+K; ｽﾄﾗｲｶ- ﾖｳ |
01432-00051 |
from US $0.80 |
||
|
80570A
|
80570A
01432-00051 SCREW8310--01 ~ ; S+K; ｽﾄﾗｲｶ- ﾖｳ |
01432-00051 |
from US $0.80 |
||
|
80595
|
80595
80595-01E00 KNOB-DOOR LOCK8310--01 ~ 8508--01; S; (K) |
80595-01E00 |
US $6.34 |
||
|
80595
|
80595
80595-01E01 KNOB-DOOR LOCK8310--01 ~ 8508--01; S; (C) |
80595-01E01 |
US $6.34 |
||
|
80595
|
80595
80595-28E00 KNOB-DOOR LOCK8508--01 ~ 8709--01; S; (C) |
80595-28E00 |
US $6.34 |
||
|
80595
|
80595
80595-W1020 Knob-Door Lock8310--01 ~ 8508--01; S; (G) |
80595-W1020 |
US $4.32 |
||
|
80595
|
80595
80970-06E00 GROMMET8310--01 ~ 8508--01; S; (K) |
80970-06E00 |
US $5.18 |
||
|
80595
|
80595
80970-06E01 GROMMET8310--01 ~ 8508--01; S; (C) |
80970-06E01 |
US $5.18 |
||
|
80595
|
80595
80970-06E02 GROMMET-KNOB8310--01 ~ 8508--01; S; (G) |
80970-06E02 |
US $5.90 |
||
|
80595
|
80595
80595-01E00 KNOB-DOOR LOCK8310--01 ~ 8508--01; S; (K) |
80595-01E00 |
US $6.34 |
||
|
80595
|
80595
80595-01E01 KNOB-DOOR LOCK8310--01 ~ 8508--01; S; (C) |
80595-01E01 |
US $6.34 |
||
|
80595
|
80595
80595-28E00 KNOB-DOOR LOCK8508--01 ~ 8709--01; S; (C) |
80595-28E00 |
US $6.34 |
||
|
80595
|
80595
80595-W1020 Knob-Door Lock8310--01 ~ 8508--01; S; (G) |
80595-W1020 |
US $4.32 |
||
|
80595
|
80595
80970-06E00 GROMMET8310--01 ~ 8508--01; S; (K) |
80970-06E00 |
US $5.18 |
||
|
80595
|
80595
80970-06E01 GROMMET8310--01 ~ 8508--01; S; (C) |
80970-06E01 |
US $5.18 |
||
|
80595
|
80595
80970-06E02 GROMMET-KNOB8310--01 ~ 8508--01; S; (G) |
80970-06E02 |
US $5.90 |
||
|
80595A
|
80595A
80970-06E00 GROMMET8310--01 ~ 8508--01; S; (K) |
80970-06E00 |
US $5.18 |
||
|
80595A
|
80595A
80970-06E01 GROMMET8310--01 ~ 8508--01; S; (C) |
80970-06E01 |
US $5.18 |
||
|
80595A
|
80595A
80970-06E02 GROMMET-KNOB8310--01 ~ 8508--01; S; (G) |
80970-06E02 |
US $5.90 |
||
|
80595A
|
80595A
80970-06E00 GROMMET8310--01 ~ 8508--01; S; (K) |
80970-06E00 |
US $5.18 |
||
|
80595A
|
80595A
80970-06E01 GROMMET8310--01 ~ 8508--01; S; (C) |
80970-06E01 |
US $5.18 |
||
|
80595A
|
80595A
80970-06E02 GROMMET-KNOB8310--01 ~ 8508--01; S; (G) |
80970-06E02 |
US $5.90 |
||
|
80605
|
80605
80604-04E00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh8310--01 ~ 8508--01; K.SSSEX S.CA18E.SSSEX; ﾌﾞﾗﾂｸ/ﾒﾂｷ |
80604-04E00 |
US $68.54 |
||
|
80605
|
80605
80604-04E01 HANDLE ASSY-FRONT DOOR OUTSIDE,RH8710--01 ~ ; (S+K).(SLXG+SSSX) MAXIMA.LEG; ﾌﾞﾗﾂｸ/ﾒﾂｷ |
80604-04E01 |
US $68.54 |
||
|
80605
|
80605
80678-01E00 BRACKET-OUTSIDE HANDLE,RH8310--01 ~ 8508--01; ALL; ｷ-ｼﾘﾝﾀﾞ-ﾖｳ |
80678-01E00 |
US $3.46 |
||
|
80605
|
80605
80678-28E00 BRACKET-OUTSIDE HANDLE,RH8508--01 ~ ; S+K |
80678-28E00 |
US $3.46 |
||
|
80605H
|
80605H
80678-01E00 BRACKET-OUTSIDE HANDLE,RH8310--01 ~ 8508--01; ALL; ｷ-ｼﾘﾝﾀﾞ-ﾖｳ |
80678-01E00 |
US $3.46 |
||
|
80605H
|
80605H
80678-28E00 BRACKET-OUTSIDE HANDLE,RH8508--01 ~ ; S+K |
80678-28E00 |
US $3.46 |
||
|
80606
|
80606
80605-04E00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh8508--01 ~ 8601--01; (S+K).(SLXG+SSSX) K.LX; ﾌﾞﾗﾂｸ/ﾒﾂｷ |
80605-04E00 |
US $68.54 |
||
|
80606
|
80606
80605-04E01 HANDLE ASSY-FRONT DOOR OUTSIDE,LH8710--01 ~ ; (S+K).(SLXG+SSSX) MAXIMA.LEG; ﾌﾞﾗﾂｸ/ﾒﾂｷ |
80605-04E01 |
US $68.54 |
||
|
80608
|
80608
80508-01E00 ROD-KEY LOCK,RH8310--01 ~ 8508--01; ALL |
80508-01E00 |
US $5.33 |
||
|
80608
|
80608
80508-28E00 ROD8508--01 ~ ; S+K |
80508-28E00 |
US $18.58 |
||
|
80608
|
80608
80610-04E10 HOLDER-OUTSIDE HANDLE8601--01 ~ ; S/SELECT+SSSX+MAXIMA; ﾐｷﾞ |
80610-04E10 |
US $43.49 |
||
|
80608
|
80608
80608-01E00 ROD8310--01 ~ 8508--01; ALL; ﾐｷﾞ ﾋﾀﾞﾘ |
80608-01E00 |
US $5.33 |
||
|
80608
|
80608
80608-28E00 ROD8508--01 ~ ; ALL; ﾐｷﾞ |
80608-28E00 |
US $7.20 |
||
|
80608
|
80608
80609-28E00 ROD8508--01 ~ ; ALL; ﾋﾀﾞﾘ |
80609-28E00 |
US $7.20 |
||
|
80608C
|
80608C
80610-04E10 HOLDER-OUTSIDE HANDLE8601--01 ~ ; S/SELECT+SSSX+MAXIMA; ﾐｷﾞ |
80610-04E10 |
US $43.49 |
||
|
80608D
|
80608D
80608-01E00 ROD8310--01 ~ 8508--01; ALL; ﾐｷﾞ ﾋﾀﾞﾘ |
80608-01E00 |
US $5.33 |
||
|
80608D
|
80608D
80608-28E00 ROD8508--01 ~ ; ALL; ﾐｷﾞ |
80608-28E00 |
US $7.20 |
||
|
80608D
|
80608D
80609-28E00 ROD8508--01 ~ ; ALL; ﾋﾀﾞﾘ |
80609-28E00 |
US $7.20 |
||
|
80609
|
80609
80509-01E00 ROD-KEY LOCK,LH8310--01 ~ 8709--01; ALL |
80509-01E00 |
US $5.33 |
||
|
80670
|
80670
80670-01E10 HANDLE ASSY-DOOR INSIDE,RH8310--01 ~ 8508--01; SLXG+SSSEX+SSSEXG; (C)ﾐｷﾞ ﾋﾀﾞﾘ |
80670-01E10 |
US $30.82 |
||
|
80670
|
80670
80670-01E12 HANDLE ASSY-DOOR INSIDE,RH8310--01 ~ 8410--01; SLXG+SSSEX+SSSEXG; (K)ﾐｷﾞ ﾋﾀﾞﾘ |
80670-01E12 |
US $29.38 |
||
|
80670
|
80670
80670-01F02
Handle Assy-Rear Door Inside, Rh
8310--01 ~ 8508--01; SLXG+SSSEX+SSSEXG; (G)ﾐｷﾞ ﾋﾀﾞﾘ |
80670-01F02 |
— | ||
|
80670
|
80670
80670-28E10 HANDLE ASSY-DOOR INSIDE,RH8508--01 ~ 8601--01; 2S.(SLXG+S/SELECT) K.(SLXG+S/SELECT) (S+K).SSSX; (C) ﾐｷﾞ ﾋﾀﾞﾘ |
80670-28E10 |
US $30.82 |
||
|
80670
|
80670
80882-01E00 RUBBER-SEATING,DOOR LOCK RH8310--01 ~ 8601--01; S.(L+LX+S/SELECT) S.SSS#; ﾄﾞｱﾛﾂｸﾉﾌﾞﾖｳ |
80882-01E00 |
US $2.02 |
||
|
80670G
|
80670G
80882-01E00 RUBBER-SEATING,DOOR LOCK RH8310--01 ~ 8601--01; S.(L+LX+S/SELECT) S.SSS#; ﾄﾞｱﾛﾂｸﾉﾌﾞﾖｳ |
80882-01E00 |
US $2.02 |
||
|
80671
|
80671
80671-V5015
Handle Assy-Rear Door Inside, Lh
8310--01 ~ 8410--01; SLXG+SSSEX+SSSEXG |
80671-V5015 |
— | ||
|
80673
|
80673
80682-01E17 ESCUTCHEON-INSIDE HANDLE,RH8310--01 ~ 8508--01; ALL; (C) ﾐｷﾞ ﾋﾀﾞﾘ |
80682-01E17 |
US $14.11 |
||
|
80673
|
80673
80682-01E18 ESCUTCHEON-INSIDE HANDLE,RH8310--01 ~ 8508--01; (S,K)-MAXIMA; (G) ﾐｷﾞ ﾋﾀﾞﾘ |
80682-01E18 |
US $14.11 |
||
|
80673
|
80673
80682-28E00 ESCUTCHEON-INSIDE HANDLE,RH8508--01 ~ 8709--01; S+K; (C) ﾐｷﾞ ﾋﾀﾞﾘ |
80682-28E00 |
US $14.11 |
||
|
80673
|
80673
80682-V5015 Escutcheon-Inside Handle, Rh8310--01 ~ 8508--01; ALL; (K) ﾐｷﾞ ﾋﾀﾞﾘ |
80682-V5015 |
US $22.05 |
||
