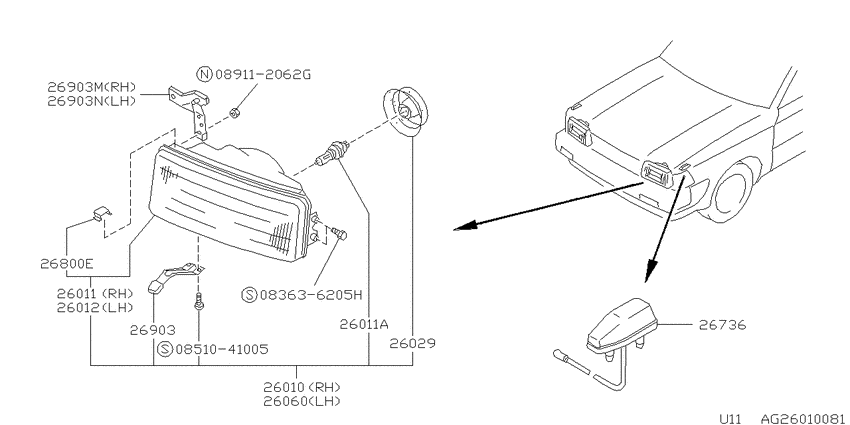

Head lamp (1985-08-01 ~ ; (S+K) -MAXIMA# +W) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- SSSEX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636205H
|
083636205H
08363-6205H
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6205H |
— | ||
|
0851041005
|
0851041005
08510-41005
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-41005 |
— | ||
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.57 |
||
|
26010
|
26010
26010-02E00 LAMP ASSY-RH8310--01 ~ 8508--01; /S.CA18E S.CA18ET.(SSS+SSSEX)S.CA20S; [B113] |
26010-02E00 |
US $522.50 |
||
|
26010
|
26010
B6010-02E60 Lamp Assy-Rh8508--01 ~ 8608--01; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
B6010-02E60 |
US $348.34 |
||
|
26010
|
26010
B6010-02E65 Lamp Assy-Rh8608--01 ~ ; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
B6010-02E65 |
US $337.01 |
||
|
26011
|
26011
26015-02E00 HEAD LAMP UNIT8310--01 ~ 8508--01; CS.(CA18E+CA18ET) S.CA20S K.(CA18E+CA18ET) K.CA20S; [B113] |
26015-02E00 |
US $273.60 |
||
|
26011
|
26011
26015-02E60 HEAD LAMP UNIT8508--01 ~ 8608--01; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
26015-02E60 |
US $249.12 |
||
|
26011
|
26011
26015-02E65 HEAD LAMP UNIT8608--01 ~ ; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
26015-02E65 |
US $241.92 |
||
|
26011
|
26011
AY08010003 Bulb8310--01 ~ ; $S.(CA18E+CA18ET) K.(CA18E+CA18ET); 12V-60/55W |
AY08010003 |
US $16.67 |
||
|
26011A
|
26011A
AY08010003 Bulb8310--01 ~ ; $S.(CA18E+CA18ET) K.(CA18E+CA18ET); 12V-60/55W |
AY08010003 |
US $16.67 |
||
|
26012
|
26012
26065-02E00 HEAD LAMP UNIT8310--01 ~ 8508--01; CS.(CA18E+CA18ET) S.CA20S K.(CA18E+CA18ET) K.CA20S; [B113] |
26065-02E00 |
US $273.60 |
||
|
26012
|
26012
26065-02E60 HEAD LAMP UNIT8508--01 ~ 8608--01; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
26065-02E60 |
US $249.12 |
||
|
26012
|
26012
26065-02E65 HEAD LAMP UNIT8608--01 ~ ; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
26065-02E65 |
US $241.92 |
||
|
26029
|
26029
26029-41L00 Holder-Head Lamp8508--01 ~ ; 0S.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT; [B113] |
26029-41L00 |
US $14.54 |
||
|
26029
|
26029
26029-V5100 Holder-Head Lamp8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; [B113] |
26029-V5100 |
US $22.18 |
||
|
26060
|
26060
26060-02E00 LAMP ASSY-LH8310--01 ~ 8508--01; /S.CA18E S.CA18ET.(SSS+SSSEX)S.CA20S; [B113] |
26060-02E00 |
US $522.50 |
||
|
26060
|
26060
B6060-02E60 Lamp Assy-Lh8508--01 ~ 8608--01; 0S.CA18E S.CA18ET S.CA18DT; [B113] |
B6060-02E60 |
US $348.34 |
||
|
26736
|
26736
26730-01E00 INDICATOR-MONITOR,HEAD LAMP8310--01 ~ ; .S.(CA16S+CA18S) S.(CA18E+CA18ET) S.LD20; ﾐｷﾞ[B113] |
26730-01E00 |
US $39.31 |
||
|
26736
|
26736
26735-01E00 INDICATOR-MONITOR,HEAD LAMP8310--01 ~ ; .S.(CA16S+CA18S) S.(CA18E+CA18ET) S.LD20; LH[B113] |
26735-01E00 |
US $39.31 |
||
|
26800E
|
26800E
26398-28E60
CLIP-BLIND
8508--01 ~ ; S+K+W; ｱｴﾝ ﾒﾂｷ(ｷｲﾛ) |
26398-28E60 |
— | ||
|
26903
|
26903
26042-01E10 Bracket8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾐｷﾞ |
26042-01E10 |
US $6.19 |
||
|
26903
|
26903
26092-01E10 Bracket8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾋﾀﾞﾘ |
26092-01E10 |
US $6.19 |
||
|
26903
|
26903
26042-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾐｷﾞ[B113] |
26042-01E00 |
US $6.48 |
||
|
26903
|
26903
26042-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾐｷﾞ |
26042-01E70 |
US $10.94 |
||
|
26903
|
26903
26092-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ[B113] |
26092-01E00 |
US $6.19 |
||
|
26903
|
26903
26092-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ |
26092-01E70 |
US $8.78 |
||
|
26903M
|
26903M
26042-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA20S S.LD20; ﾐｷﾞ[B113] |
26042-01E00 |
US $6.48 |
||
|
26903M
|
26903M
26042-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾐｷﾞ |
26042-01E70 |
US $10.94 |
||
|
26903N
|
26903N
26092-01E00 BRACKET-LAMP8310--01 ~ 8508--01; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ[B113] |
26092-01E00 |
US $6.19 |
||
|
26903N
|
26903N
26092-01E70 BRACKET-LAMP8508--01 ~ ; BS.(CA16S+CA18S) S.(CA18E+CA18ET) S.CA18DT S.LD20; ﾋﾀﾞﾘ |
26092-01E70 |
US $8.78 |
