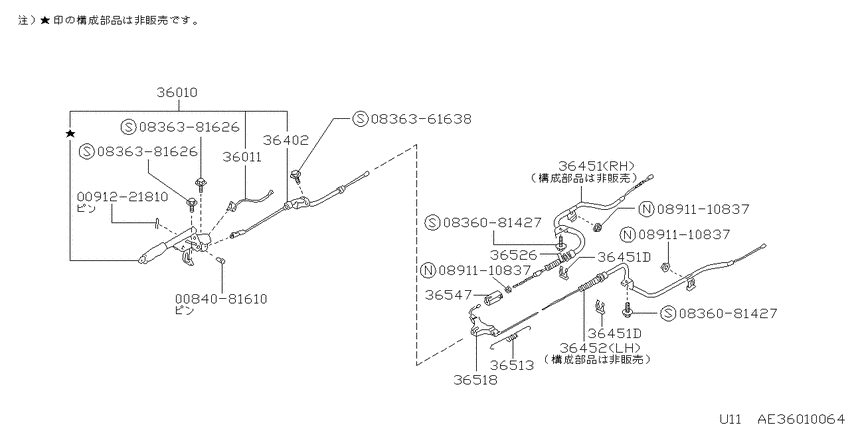

Parking brake control (1983-10-01 ~ 1985-08-01; S+K+W) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- SSSEX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0084081610
|
0084081610
00840-81610
ﾋﾟﾝ,ｸﾚﾋﾞｽ
|
00840-81610 |
— | ||
|
0836081427
|
0836081427
08360-81427
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81427 |
— | ||
|
0836081427
|
0836081427
08360-81427
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81427 |
— | ||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0836381626
|
0836381626
08363-81626
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-81626 |
— | ||
|
0836381626
|
0836381626
08363-81626
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-81626 |
— | ||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-01E01 DEVICE ASSY-PARKING BRAKE CONTROL8310--01 ~ 8508--01; S+K+W |
36010-01E01 |
US $159.84 |
||
|
36010
|
36010
36010-D4010
Device Assy-Parking Brake Control
8508--01 ~ 8601--01; (S+K).(S/SELECT+SSS#); ｶﾜﾏｷ ｸﾞﾘﾂﾌﾟ |
36010-D4010 |
— | ||
|
36011
|
36011
36011-01E00 SWITCH ASSY-PARKING BRAKE LAMP8310--01 ~ 8508--01; ALL |
36011-01E00 |
US $14.54 |
||
|
36011
|
36011
36011D4000 Switch Assy-Parking Brake Lamp8508--01 ~ 8709--01; (S+K+W).CA18#+CA16#+LD20# |
36011D4000 |
US $6.05 |
||
|
36402
|
36402
36402-01E03 CABLE ASSY-PARKING BRAKE,FRONT8310--01 ~ 8508--01; S+K+W |
36402-01E03 |
US $49.25 |
||
|
36402
|
36402
36402-D4000 Cable Assy-Parking Brake, Front8508--01 ~ 8709--01; (S+K+W).CA18# |
36402-D4000 |
US $17.14 |
||
|
36402
|
36402
36181-D4000 Nut-Adjust8508--01 ~ 8601--01; (S+K).(S/SELECT+SSS#) |
36181-D4000 |
US $3.46 |
||
|
36451
|
36451
36530-02E00
CABLE ASSY-BRAKE,REAR RH
8310--01 ~ 8501--01; SSSE# |
36530-02E00 |
— | ||
|
36451
|
36451
36530-02E10
CABLE ASSY-BRAKE,REAR RH
8310--01 ~ 8501--01; CA18E# |
36530-02E10 |
— | ||
|
36451
|
36451
36530-D4200
Cable Assy-Brake, Rear Rh
8508--01 ~ 8601--01; (S+K+W).CA18E# (S+K).CA18DT |
36530-D4200 |
— | ||
|
36451
|
36451
36530-D4220
Cable Assy-Brake, Rear Rh
8611--01 ~ ; ((S+K).CA18E# (S+K).(CA18DT+VG20#) |
36530-D4220 |
— | ||
|
36451
|
36451
36406-01P00 Plate-Cable Lock8310--01 ~ 8709--01; (S+K+W) |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451
|
36451
3640601P0A Plate-Cable Lock8310--01 ~ 8709--01; (S+K+W) |
3640601P0A |
from US $1.07 |
||
|
36451D
|
36451D
36406-01P00 Plate-Cable Lock8310--01 ~ 8709--01; (S+K+W) |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451D
|
36451D
3640601P0A Plate-Cable Lock8310--01 ~ 8709--01; (S+K+W) |
3640601P0A |
from US $1.07 |
||
|
36451D
|
36451D
36406-01P00 Plate-Cable Lock8310--01 ~ 8709--01; (S+K+W) |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451D
|
36451D
3640601P0A Plate-Cable Lock8310--01 ~ 8709--01; (S+K+W) |
3640601P0A |
from US $1.07 |
||
|
36452
|
36452
36531-02E00
CABLE ASSY-BRAKE,REAR LH
8310--01 ~ 8501--01; CA18E +CA18ET |
36531-02E00 |
— | ||
|
36452
|
36452
36531-02E10
CABLE ASSY-BRAKE,REAR LH
8501--01 ~ 8508--01; CA18E +CA18ET |
36531-02E10 |
— | ||
|
36452
|
36452
36531-D4200
Cable Assy-Brake, Rear Lh
8508--01 ~ 8601--01; (S+K+W).CA18E# (S+K).CA18DT |
36531-D4200 |
— | ||
|
36452
|
36452
36531-D4220
Cable Assy-Brake, Rear Lh
8611--01 ~ ; ((S+K).CA18E# (S+K).(CA18DT+VG20#) |
36531-D4220 |
— | ||
|
36513
|
36513
36457-01E00 SPRING-RETURN8310--01 ~ 8508--01; S+K+W |
36457-01E00 |
US $4.90 |
||
|
36518
|
36518
36441-01E01 EQUALIZER ASSY-PARKING BRAKE8310--01 ~ 8508--01; S+K+W |
36441-01E01 |
US $11.23 |
||
|
36518
|
36518
36441-01E10 EQUALIZER ASSY-PARKING BRAKE8310--01 ~ 8508--01; S+K+W |
36441-01E10 |
US $11.23 |
||
|
36526
|
36526
36532-02E00 PROTECTOR8406--01 ~ 8508--01; SSSE# |
36532-02E00 |
US $15.26 |
||
|
36526
|
36526
36532-02E15 PROTECTOR8310--01 ~ 8508--01; ALL; L=4M F/CUT USE 190MM |
36532-02E15 |
US $276.48 |
||
|
36547
|
36547
36547-01A00
Adjuster-Cable, Rear
8310--01 ~ 8508--01; S+K |
36547-01A00 |
— | ||
