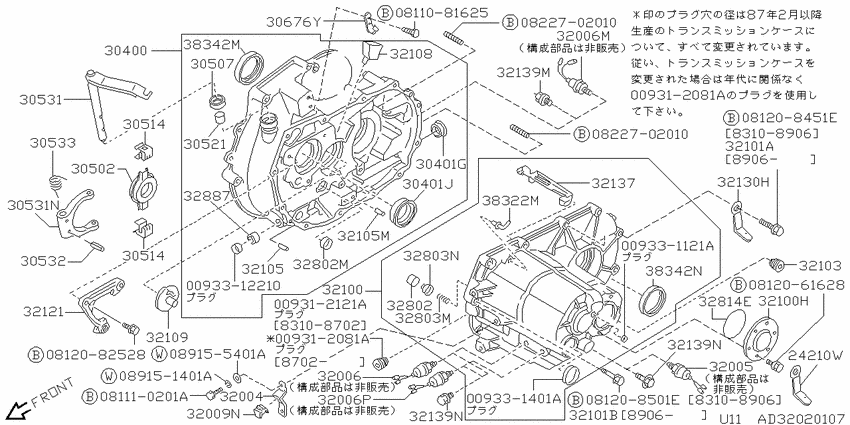

Transmission case (1983-10-01 ~ ; RS5F31A) Diagram Nissan BLUEBIRD
- Year
- 1983 - 1985
- Sales region
- Japan
- Engine
- CA18E
- transmission
- F5
- grade
- SSSE
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312081A
|
009312081A
009312081A Plug-Drain |
009312081A |
US $3.06 |
||
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.92 |
||
|
009331121A
|
009331121A
00933-1121A
PLUG
|
00933-1121A |
— | ||
|
0093312210
|
0093312210
00933-12210
ﾌﾟﾗｸﾞ
|
00933-12210 |
— | ||
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
0811081625
|
0811081625
08110-81625
Bolt-hexagon
|
08110-81625 |
— | ||
|
081110201A
|
081110201A
08111-0201A
Bolt-hexagon
|
08111-0201A |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812082528
|
0812082528
08120-82528
Bolt-hexagon
|
08120-82528 |
— | ||
| replacement | |||||
|
0812082528
|
0812082528
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
0822702010
|
0822702010
08227-02010
Болт
|
08227-02010 |
— | ||
|
0822702010
|
0822702010
08227-02010
Болт
|
08227-02010 |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
24210W
|
24210W
24210-89963 Clip-Wiring Harness8310--01 ~ 8508--01; $CA18S.(F4+SSS+F5) F5.(CA18E+CA20S) |
24210-89963 |
US $3.46 |
||
|
30400
|
30400
30400-78M10 Housing Assy-Clutch8703--01 ~ 8709--01; MT.(CA16+CA18S+CA18E)-DS |
30400-78M10 |
US $896.33 |
||
|
30400
|
30400
30400-D2100
Housing Assy-Clutch
8310--01 ~ 8508--01; (F5.(CA16S+CA18S+CA18E) +F4.(CA16S+CA18S) |
30400-D2100 |
— | ||
|
30400
|
30400
30400-D2110 Housing Assy-Clutch8508--01 ~ 8703--01; MT.(CA16+CA18S+CA18E) -DS |
30400-D2110 |
US $566.40 |
||
|
30401G
|
30401G
32858-M8001 Seal-Oil, Striking Rod8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32858-M8001 |
from US $6.66 |
||
|
30401J
|
30401J
32113M8000 Seal-Oil, Input8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32113M8000 |
from US $2.74 |
||
|
30502
|
30502
30502-52A00 Bearing-Clutch Release8508--01 ~ 8709--01; (CA18S+CA18E).F5-DS; [B106] |
30502-52A00 |
US $79.63 |
||
|
30502
|
30502
30502-M8000 Bearing-Clutch Release8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S); [B106] |
30502-M8000 |
US $83.52 |
||
| replacement | |||||
|
30502
|
30502
30502-81N00 Bearing-Clutch Release8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S); [B106] |
30502-81N00 |
US $83.66 |
||
|
30507
|
30507
30507M8001 Seal-Dust, Clutch Housing8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30507M8001 |
from US $4.20 |
||
|
30514
|
30514
30506M8002 Spring-Holder, Clutch Release Bearing8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30506M8002 |
from US $4.66 |
||
|
30514
|
30514
30506M8002 Spring-Holder, Clutch Release Bearing8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30506M8002 |
from US $4.66 |
||
|
30521
|
30521
30521-M8001 Bush-Clutch Control8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30521-M8001 |
US $10.80 |
||
|
30531
|
30531
30520-D0101 Lever-Withdrawal, Clutch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30520-D0101 |
US $48.67 |
||
| replacement | |||||
|
30531
|
30531
30520-D0102 Lever-Withdrawal, Clutch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30520-D0102 |
US $69.26 |
||
|
30531
|
30531
30537-M8001 Lever Assy-Clutch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30537-M8001 |
US $45.79 |
||
|
30531N
|
30531N
30537-M8001 Lever Assy-Clutch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30537-M8001 |
US $45.79 |
||
|
30532
|
30532
32917M3000 Pin-Withdrawal Lever8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32917M3000 |
from US $1 |
||
|
30533
|
30533
30525M8003 Spring-Return8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30525M8003 |
from US $2.02 |
||
|
30676Y
|
30676Y
30676-01E01 BRACKET-CLUTCH CABLE8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
30676-01E01 |
US $16.27 |
||
|
32004
|
32004
32004-51A00 Bracket-Clip, Top & Overdrive Switch8508--01 ~ 8709--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32004-51A00 |
US $5.04 |
||
|
32005
|
32005
32005-51A00 Switch Assy-Reverse Lamp8508--01 ~ 8709--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32005-51A00 |
US $40.32 |
||
| replacement | |||||
|
32005
|
32005
32005-51A10 Switch Assy-Reverse Lamp8508--01 ~ 8709--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32005-51A10 |
US $48.67 |
||
|
32005
|
32005
32005-M8005 Switch Assy-Reverse Lamp8310--01 ~ 8508--01; &F5.(CA16S+CA18S+CA18E+CA20S) +CA16S.F4 |
32005-M8005 |
US $40.32 |
||
| replacement | |||||
|
32005
|
32005
32005-M8015
Switch assy-reverse lamp
8310--01 ~ 8508--01; &F5.(CA16S+CA18S+CA18E+CA20S) +CA16S.F4 |
32005-M8015 |
— | ||
|
32006
|
32006
32006-D1105 Switch Assy-Top8310--01 ~ 8508--01; 1S.CA16S.(F4+F5) +(CA18S+CA18E+CA20S).F5 +CA18S.F4 |
32006-D1105 |
US $33.41 |
||
|
32006
|
32006
32006-M8005 Switch Assy-Neutral Position8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32006-M8005 |
US $21.17 |
||
| replacement | |||||
|
32006
|
32006
32006M8060 ﾆﾕ-ﾄﾗﾙ ｽｲﾂﾁassy8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32006M8060 |
US $16.39 |
||
|
32006
|
32006
32006-D1205 Switch Assy-Shift8310--01 ~ 8508--01; F5.(CA16S+CA18S+CA18E+CA20S) |
32006-D1205 |
from US $27.65 |
||
|
32006M
|
32006M
32006-M8005 Switch Assy-Neutral Position8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32006-M8005 |
US $21.17 |
||
| replacement | |||||
|
32006M
|
32006M
32006M8060 ﾆﾕ-ﾄﾗﾙ ｽｲﾂﾁassy8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32006M8060 |
US $16.39 |
||
|
32006P
|
32006P
32006-D1205 Switch Assy-Shift8310--01 ~ 8508--01; F5.(CA16S+CA18S+CA18E+CA20S) |
32006-D1205 |
from US $27.65 |
||
|
32009N
|
32009N
32009-51A00 Bracket-Switch Connector, 4Th & 5Th8508--01 ~ 8709--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32009-51A00 |
US $6.19 |
||
|
32100
|
32100
32100-D0208 Case Assy-Transmission8310--01 ~ 8508--01; F5.(CA16S+CA18S+CA18E+CA20S) |
32100-D0208 |
US $409.22 |
||
|
32100
|
32100
32100-D4510 Case Assy-Transmission8508--01 ~ 8709--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32100-D4510 |
US $409.22 |
||
|
32100
|
32100
32131-M8001 Cover-Case8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32131-M8001 |
US $7.49 |
||
|
32100H
|
32100H
32131-M8001 Cover-Case8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32131-M8001 |
US $7.49 |
||
|
32103
|
32103
32103-01A01
Plug-Drain
8310--01 ~ 8508--01; -F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S |
32103-01A01 |
— | ||
| replacements | |||||
|
32103
|
32103
3210301A0A
Plug-Drain
8310--01 ~ 8508--01; -F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S |
3210301A0A |
— | ||
|
32103
|
32103
32103-01A02 Plug-Drain8310--01 ~ 8508--01; -F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S |
32103-01A02 |
US $6.79 |
||
|
32105
|
32105
32105-C6900 Pin8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32106-M8000 Pin-Knock, Clutch Housing8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32106-M8000 |
US $1.67 |
||
|
32105M
|
32105M
32106-M8000 Pin-Knock, Clutch Housing8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32106-M8000 |
US $1.67 |
||
|
32108
|
32108
32108-M8002 Pocket-Oil, Clutch Housing8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32108-M8002 |
US $2.45 |
||
|
32109
|
32109
32109-M8001 Channel-Oil, Main Shaft Front8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32109-M8001 |
US $1.67 |
||
|
32121
|
32121
32121-D0102 Retainer-Bearing, Input Shaft8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32121-D0102 |
US $15.26 |
||
|
32130H
|
32130H
24210-S5010
Clip-Wiring Harness
8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
24210-S5010 |
— | ||
| replacement | |||||
|
32130H
|
32130H
01551-00281 CLIP-WIRING HARNESS8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
01551-00281 |
US $3.75 |
||
|
32130H
|
32130H
32004-50A00 Bracket-Clip, Top & Overdrive Switch8508--01 ~ 8709--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32004-50A00 |
US $6.19 |
||
|
32137
|
32137
32107D0203 Gutter-Oil, Adapter8310--01 ~ 8508--01; F5.(CA18S+CA18E+CA20S) |
32107D0203 |
US $6.19 |
||
|
32139M
|
32139M
32139-M8002 Plug-Switch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32139-M8002 |
US $7.06 |
||
| replacement | |||||
|
32139M
|
32139M
32139-M800A
Plug-switch
8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32139-M800A |
— | ||
|
32139N
|
32139N
32139-M8002 Plug-Switch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32139-M8002 |
US $7.06 |
||
| replacement | |||||
|
32139N
|
32139N
32139-M800A
Plug-switch
8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32139-M800A |
— | ||
|
32139N
|
32139N
32139-M8002 Plug-Switch8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32139-M8002 |
US $7.06 |
||
| replacement | |||||
|
32139N
|
32139N
32139-M800A
Plug-switch
8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32139-M800A |
— | ||
|
32802
|
32802
32802-M8000 Bush-Fork Shaft8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32802-M8000 |
US $8.87 |
||
|
32802
|
32802
32803-M8000 Bush-Fork Shaft8310--01 ~ 8508--01; .F4.(CA16S+CA18S) +F5.(CA16S+CA18S+CA18E+CA20S) |
32803-M8000 |
US $2.45 |
||
|
32802M
|
32802M
32803-M8000 Bush-Fork Shaft8310--01 ~ 8508--01; .F4.(CA16S+CA18S) +F5.(CA16S+CA18S+CA18E+CA20S) |
32803-M8000 |
US $2.45 |
||
|
32803M
|
32803M
32828-M8000 Spring-Support Fork Shaft8310--01 ~ 8508--01; .F4.(CA16S+CA18S) +F5.(CA16S+CA18S+CA18E+CA20S) |
32828-M8000 |
US $0.86 |
||
|
32803N
|
32803N
32804-M8000 Holder-Spring8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32804-M8000 |
US $0.86 |
||
|
32814E
|
32814E
32136-M8000 Seal-O Ring8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32136-M8000 |
US $4.03 |
||
|
32887
|
32887
32887-01A01 Bush-Striking Rod8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
32887-01A01 |
US $8.64 |
||
|
38322M
|
38322M
38322-50A02 Breather-Transmission Case8508--01 ~ 8709--01; F4 +F5 |
38322-50A02 |
US $19.15 |
||
|
38322M
|
38322M
38322-H7300 Breather-Transmission Case8310--01 ~ 8508--01; .F5.(CA16S+CA18S+CA18E+CA20S) +F4.(CA16S+CA18S) |
38322-H7300 |
US $6.48 |
||
|
38342M
|
38342M
38342D2100 Seal-Oil, Differential Clutch Housing8310--01 ~ 8508--01; 0(CA16S+CA18S).F4 (CA16S+CA18S).F5 CA18E.F5; ﾒ-ｶ-ﾁｶﾞｲﾆﾖﾙｹｲｼﾞﾖｳﾉﾁｶ ﾞｲｱﾘ |
38342D2100 |
from US $7.20 |
||
|
38342N
|
38342N
38342D2100 Seal-Oil, Differential Clutch Housing8310--01 ~ 8508--01; F5.(CA18S+CA18E+CA20S); ﾒ-ｶ-ﾁｶﾞｲﾆﾖﾙｹｲｼﾞﾖｳﾉﾁｶ ﾞｲｱﾘ |
38342D2100 |
from US $7.20 |
||
