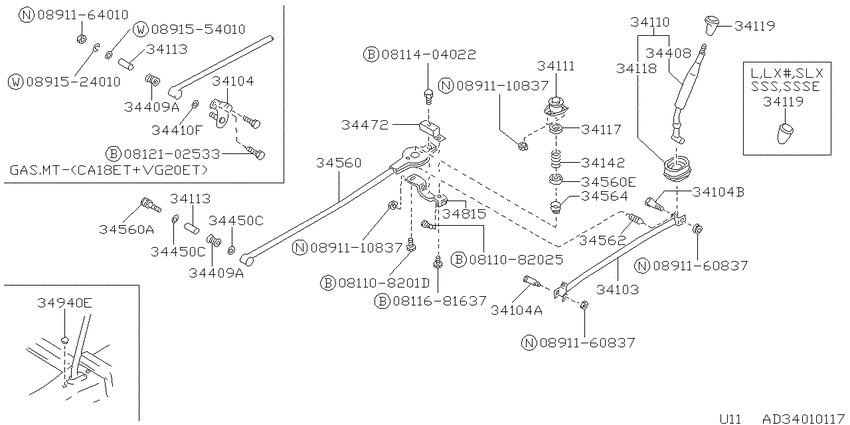

Transmission control & linkage (1983-10-01 ~ 1985-08-01; MT) Diagram Nissan BLUEBIRD
- Year
- 1983 - 1985
- Sales region
- Japan
- Engine
- CA18E
- transmission
- F5
- grade
- SSSE
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108201D
|
081108201D
081108201D
Bolt-hexagon
|
081108201D |
— | ||
|
0811082025
|
0811082025
08110-82025
Bolt-hexagon
|
08110-82025 |
— | ||
|
0811404022
|
0811404022
08114-04022
Bolt-hexagon
|
08114-04022 |
— | ||
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0812102533
|
0812102533
08121-02533
Bolt-hexagon
|
08121-02533 |
— | ||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891160837
|
0891160837
08911-60837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-60837 |
— | ||
|
0891160837
|
0891160837
08911-60837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-60837 |
— | ||
|
0891164010
|
0891164010
08911-64010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64010 |
— | ||
| replacement | |||||
|
0891164010
|
0891164010
089116402A
NUTHEX
|
089116402A |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
0891554010
|
0891554010
0891554010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
0891554010 |
— | ||
|
34103
|
34103
34103-01E01 ROD ASSY-CONTROL8310--01 ~ 8508--01; CCA16S.F4+CA20S.MT CA18S.(LX+SLX).F4 S.LD20+W.SSSE.MT CA18ET# |
34103-01E01 |
US $174.24 |
||
|
34103
|
34103
34103-D4001 Rod Assy-Control8508--01 ~ 8709--01; 6S.CA16S.MT (S+K).CA18S.MT (S+K).CA18E,MT |
34103-D4001 |
US $110.88 |
||
|
34103
|
34103
34555-D4000 Washer8508--01 ~ ; MT |
34555-D4000 |
US $3.46 |
||
| replacement | |||||
|
34103
|
34103
34555D400A Washer8508--01 ~ ; MT |
34555D400A |
from US $1.35 |
||
|
34104
|
34104
34136-01E00 BOLT8310--01 ~ ; MT |
34136-01E00 |
US $10.80 |
||
|
34104
|
34104
34136-01E10 BOLT8310--01 ~ 8508--01; (S.K).MT+V.DIE |
34136-01E10 |
US $4.18 |
||
|
34104
|
34104
34136-01E12 BOLT8508--01 ~ 8709--01; MT-VG20ET |
34136-01E12 |
US $11.95 |
||
|
34104A
|
34104A
34136-01E00 BOLT8310--01 ~ ; MT |
34136-01E00 |
US $10.80 |
||
|
34104B
|
34104B
34136-01E10 BOLT8310--01 ~ 8508--01; (S.K).MT+V.DIE |
34136-01E10 |
US $4.18 |
||
|
34104B
|
34104B
34136-01E12 BOLT8508--01 ~ 8709--01; MT-VG20ET |
34136-01E12 |
US $11.95 |
||
|
34110
|
34110
34110-01E02 LEVER ASSY-CONTROL8310--01 ~ 8508--01; 8S.CA16S.F4+S.LD20.MT+(S,K).CA18S.MT+ MT.(CA18E,CA20S) |
34110-01E02 |
US $81.79 |
||
|
34110
|
34110
34110-50A00 Lever Assy-Control8508--01 ~ 8709--01; GS.(CA16S+LD20).F5 (S+K).CA18S.F5 (S+K).CA18E.F5 K.CA18ET.F5 |
34110-50A00 |
US $56.45 |
||
|
34111
|
34111
34553-D4001 Socket Assy-Hand Lever8508--01 ~ 8601--01; HS.(CA18S+CA18E+CA18ET+CA18DT).F5 K.(CA18S+CA18E+CA18ET+CA18DT).F5 |
34553-D4001 |
US $48.75 |
||
|
34113
|
34113
34556-D2700
Tube-Control Rod Support Bush
8310--01 ~ 8508--01; (S,K).MT |
34556-D2700 |
— | ||
|
34113
|
34113
34556-D4000 Tube-Control Rod Support Bush8508--01 ~ 8601--01; ,(S+K).CA16S.MT (S+K).CA18#.MT W.MT |
34556-D4000 |
US $5.04 |
||
| replacement | |||||
|
34113
|
34113
345562Y00A Tube-Control Rod Support Bush8508--01 ~ 8601--01; ,(S+K).CA16S.MT (S+K).CA18#.MT W.MT |
345562Y00A |
US $5.62 |
||
|
34113
|
34113
34556-D2700
Tube-Control Rod Support Bush
8310--01 ~ 8508--01; (S,K).MT |
34556-D2700 |
— | ||
|
34113
|
34113
34556-D4000 Tube-Control Rod Support Bush8508--01 ~ 8601--01; ,(S+K).CA16S.MT (S+K).CA18#.MT W.MT |
34556-D4000 |
US $5.04 |
||
| replacement | |||||
|
34113
|
34113
345562Y00A Tube-Control Rod Support Bush8508--01 ~ 8601--01; ,(S+K).CA16S.MT (S+K).CA18#.MT W.MT |
345562Y00A |
US $5.62 |
||
|
34117
|
34117
34118-D4000 Seat-Spring8406--01 ~ 8709--01; MT |
34118-D4000 |
US $40.75 |
||
|
34117
|
34117
39118-01E00
SEAT-SPRING
8310--01 ~ 8406--01; (S,K).MT |
39118-01E00 |
— | ||
|
34118
|
34118
34121-01E02 COVER-SOCKET8310--01 ~ ; MT |
34121-01E02 |
US $12.24 |
||
|
34119
|
34119
32865-15L00 Knob-Control Lever8310--01 ~ 8508--01; (SSS,LX,SLX).F5 (V,W).F5; LEATHERLIKE BLACK 5S |
32865-15L00 |
from US $28.14 |
||
|
34119
|
34119
32865-15L00 Knob-Control Lever8310--01 ~ 8508--01; (SSS,LX,SLX).F5 (V,W).F5; LEATHERLIKE BLACK 5S |
32865-15L00 |
from US $28.14 |
||
|
34142
|
34142
34117-01E02 SPRING-CONTROL ROD8310--01 ~ 8810--01; (S,K).MT |
34117-01E02 |
US $3.46 |
||
|
34408
|
34408
34441-01E02 LEVER-SHIFT,2ND & 3RD8310--01 ~ 8508--01; ALL-CA18ET.MT |
34441-01E02 |
US $66.67 |
||
|
34409A
|
34409A
34557-D2700 Bush-Control Rod Support8310--01 ~ 8508--01; MT |
34557-D2700 |
US $12.05 |
||
|
34409A
|
34409A
34557-D4000 Bush8508--01 ~ 8810--01; (S+K).F5 |
34557-D4000 |
US $5.90 |
||
|
34409A
|
34409A
34557-D2700 Bush-Control Rod Support8310--01 ~ 8508--01; MT |
34557-D2700 |
US $12.05 |
||
|
34409A
|
34409A
34557-D4000 Bush8508--01 ~ 8810--01; (S+K).F5 |
34557-D4000 |
US $5.90 |
||
|
34410F
|
34410F
01311-00192 WASHER8310--01 ~ ; MT |
01311-00192 |
US $6.34 |
||
|
34450C
|
34450C
01311-00192 WASHER8310--01 ~ ; ALL |
01311-00192 |
US $6.34 |
||
|
34450C
|
34450C
01311-00192 WASHER8310--01 ~ ; ALL |
01311-00192 |
US $6.34 |
||
|
34472
|
34472
34560-D4001
Holder-Rubber, Hand Lever
8508--01 ~ 8810--01; (S,K,W).MT |
34560-D4001 |
— | ||
| replacement | |||||
|
34472
|
34472
34560-51E05 BRACKET ASSY-HOLDER RUBBER8508--01 ~ 8810--01; (S,K,W).MT |
34560-51E05 |
from US $42.50 |
||
|
34472
|
34472
34561-01E01 HOLDER-RUBBER,HAND LEVER8310--01 ~ 8508--01; (S,K).MT |
34561-01E01 |
US $36.58 |
||
|
34560
|
34560
34550-D4001 Support Assy-Link8508--01 ~ 8810--01; (S+K).F5 |
34550-D4001 |
US $50.26 |
||
|
34560
|
34560
34551-01E01 SUPPORT ASSY-LINK8310--01 ~ 8508--01; MT |
34551-01E01 |
US $69.70 |
||
|
34560
|
34560
01121-00811 BOLT8310--01 ~ 8508--01; ALL |
01121-00811 |
US $3.46 |
||
|
34560
|
34560
34116-01E02
BEARING-HAND LEVER
8310--01 ~ 8508--01; ALL |
34116-01E02 |
— | ||
|
34560A
|
34560A
01121-00811 BOLT8310--01 ~ 8508--01; ALL |
01121-00811 |
US $3.46 |
||
|
34560E
|
34560E
34116-01E02
BEARING-HAND LEVER
8310--01 ~ 8508--01; ALL |
34116-01E02 |
— | ||
|
34562
|
34562
34573-01E01 SPRING-RETURN8310--01 ~ 8508--01; ALL |
34573-01E01 |
US $4.90 |
||
|
34562
|
34562
34573-D4001 Spring-Return8508--01 ~ 8512--01; (S+K).F5 |
34573-D4001 |
US $6.34 |
||
|
34562
|
34562
34573-D4002
Spring-Return
8512--01 ~ 8810--01; (S+K).F5 |
34573-D4002 |
— | ||
| replacement | |||||
|
34562
|
34562
34573-D4003 Spring-Return8512--01 ~ 8810--01; (S+K).F5 |
34573-D4003 |
US $5.59 |
||
|
34564
|
34564
34122-01E02 BOOT-SOCKET8310--01 ~ 8508--01; ALL |
34122-01E02 |
US $8.93 |
||
| replacement | |||||
|
34564
|
34564
34122-03E00
Boot-socket
8310--01 ~ 8508--01; ALL |
34122-03E00 |
— | ||
|
34815
|
34815
34555-01E01 PLATE-HOUSING SUPPORT8310--01 ~ 8508--01; MT |
34555-01E01 |
US $11.23 |
||
|
34940E
|
34940E
01553-02731 PLUG8310--01 ~ 8508--01; ALL |
01553-02731 |
US $1.73 |
||
