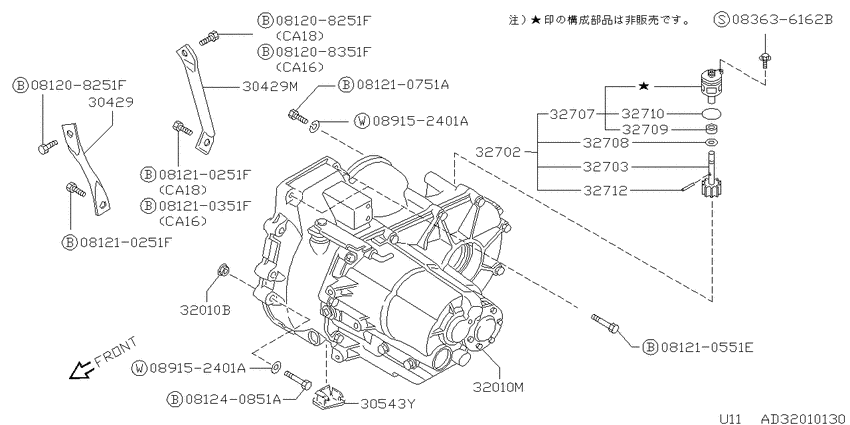

Transmission & transaxle assembly (1985-08-01 ~ ; RS5F31A.(CA16,CA18S,CA18E)) Diagram Nissan BLUEBIRD
- Year
- 1983 - 1985
- Sales region
- Japan
- Engine
- CA18E
- transmission
- F5
- grade
- SSSE
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210351F
|
081210351F
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
081210551E
|
081210551E
081210551E
Bolt-hexagon
|
081210551E |
— | ||
|
081210751A
|
081210751A
08121-0751A
Bolt-hexagon
|
08121-0751A |
— | ||
|
081240851A
|
081240851A
08124-0851A
Bolt-hexagon
|
08124-0851A |
— | ||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
30429
|
30429
30431-03E00 Gusset-Transmission To Engine8310--01 ~ 8508--01; CA18E.MT+CA20S.MT; ﾌﾛﾝﾄ ﾖｳ |
30431-03E00 |
US $23.62 |
||
|
30429
|
30429
30432-03E00 Gusset-Transmission To Engine8310--01 ~ 8508--01; (CA16S.F4+CA18E.MT+ (S,K).CA18S.MT-LX.F5; ﾘｱ ﾖｳ |
30432-03E00 |
US $23.62 |
||
|
30429
|
30429
30432-04E03 Gusset-Transmission To Engine8310--01 ~ 8507--01; K.SSS.MT+CA18ET.MT; ﾘｱ ﾖｳ |
30432-04E03 |
US $23.62 |
||
|
30429M
|
30429M
30432-03E00 Gusset-Transmission To Engine8310--01 ~ 8508--01; (CA16S.F4+CA18E.MT+ (S,K).CA18S.MT-LX.F5; ﾘｱ ﾖｳ |
30432-03E00 |
US $23.62 |
||
|
30429M
|
30429M
30432-04E03 Gusset-Transmission To Engine8310--01 ~ 8507--01; K.SSS.MT+CA18ET.MT; ﾘｱ ﾖｳ |
30432-04E03 |
US $23.62 |
||
|
30543Y
|
30543Y
30403-D0100 Grommet-Clutch Housing8412--01 ~ 8508--01; CA16.MT+CA18S.MT CA18E.MT |
30403-D0100 |
US $4.03 |
||
|
32010B
|
32010B
32133-06E00
NUT
8508--01 ~ 8512--01; 'CA16S.F5 (CA18S+CA18E).F5-DS |
32133-06E00 |
— | ||
|
32010M
|
32010M
32010-D3306 Transaxle Assy-Manual8310--01 ~ 8508--01; CA18E.MT; RS5F31A |
32010-D3306 |
US $2,408 |
||
|
32010M
|
32010M
32010-D4606 Transaxle Assy-Manual8508--01 ~ 8709--01; CA18E.F5; RS5F31A |
32010-D4606 |
US $2,408 |
||
|
32702
|
32702
32702-33A13 Pinion Assy-Speedometer8606--01 ~ 8709--01; 6(S+K).S/SELECT.F5 (S+K).CA18S.SSS.F5 (S+K).CA18E.F5; 33T |
32702-33A13 |
US $26.62 |
||
|
32702
|
32702
32702-D2233 Pinion Assy-Speedometer8310--01 ~ 8508--01; "CA18E.MT+W.LX.MT K.SSS.CA18S.MT; 33T |
32702-D2233 |
US $27.65 |
||
|
32703
|
32703
32703-D2233 Pinion-Speedometer8310--01 ~ 8508--01; "CA18E.MT+W.LX.MT K.SSS.CA18S.MT; 33T |
32703-D2233 |
US $18.14 |
||
|
32707
|
32707
32707-33A00 Sleeve-Speedometer Pinion8606--01 ~ 8709--01; (CA16S+CA18S+CA18E).MT |
32707-33A00 |
US $15.41 |
||
|
32707
|
32707
32707-D2200 Sleeve-Speedometer Pinion8310--01 ~ 8606--01; (CA16S+CA18S+CA18E).MT |
32707-D2200 |
US $15.70 |
||
|
32708
|
32708
32713-M8001 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.61 |
32713-M8001 |
US $0.82 |
||
|
32708
|
32708
32713-M8002 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.67 |
32713-M8002 |
US $0.86 |
||
|
32708
|
32708
32713-M8003 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.73 |
32713-M8003 |
US $0.86 |
||
|
32708
|
32708
32713-M8004 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.79 |
32713-M8004 |
US $0.86 |
||
|
32708
|
32708
32713-M8005 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.85 |
32713-M8005 |
US $0.86 |
||
|
32708
|
32708
32713-M8006 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.91 |
32713-M8006 |
US $0.86 |
||
|
32708
|
32708
32713-M8007 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=0.97 |
32713-M8007 |
US $0.86 |
||
|
32708
|
32708
32713-M8008 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=1.03 |
32713-M8008 |
US $0.86 |
||
|
32708
|
32708
32713-M8009 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=1.09 |
32713-M8009 |
US $0.86 |
||
|
32708
|
32708
32713-M8010 Washer-Speedometer Pinion8310--01 ~ ; MT; ｾﾝﾀｸ T=1.15 |
32713-M8010 |
US $0.86 |
||
|
32709
|
32709
3270914600 Seal-Oil, Speedometer Pinion8310--01 ~ 8606--01; (CA16S+CA18S+CA18E).MT |
3270914600 |
from US $1.60 |
||
|
32709
|
32709
3270958S00 Seal-Oil, Speedometer Pinion8606--01 ~ 8709--01; (CA16S+CA18S+CA18E).MT |
3270958S00 |
from US $0.91 |
||
|
32710
|
32710
32710M8000 Seal-O Ring, Speedometer Pinion8310--01 ~ 8709--01; MT |
32710M8000 |
US $2.78 |
||
|
32712
|
32712
32712-14600
Pin-Retainer, Speedometer Pinion
8310--01 ~ 8709--01; (CA16S+CA18S+CA18E).MT |
32712-14600 |
— |
